QS-1/8-8
Product Overview

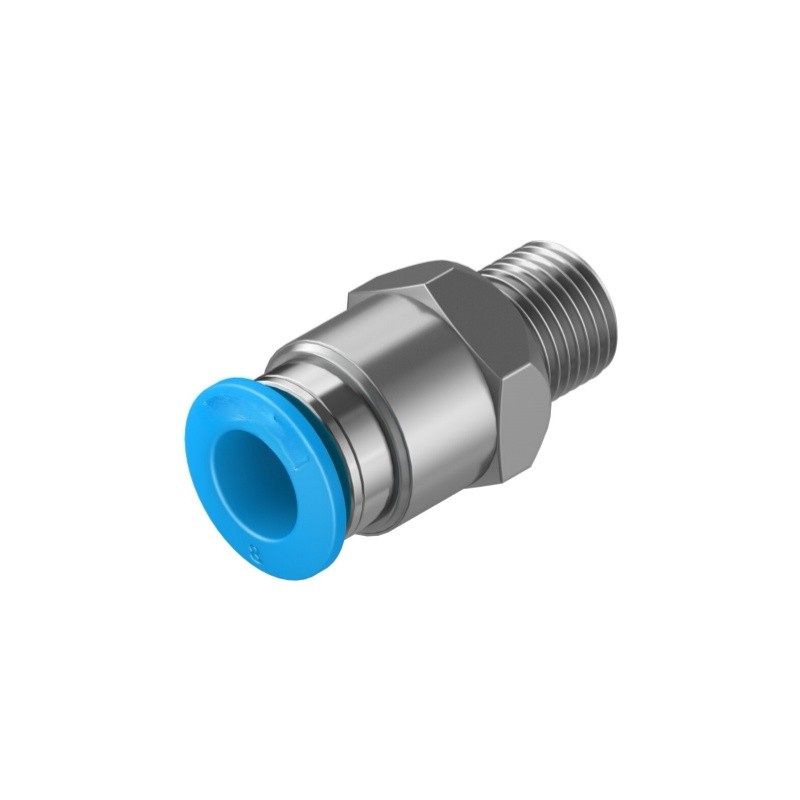

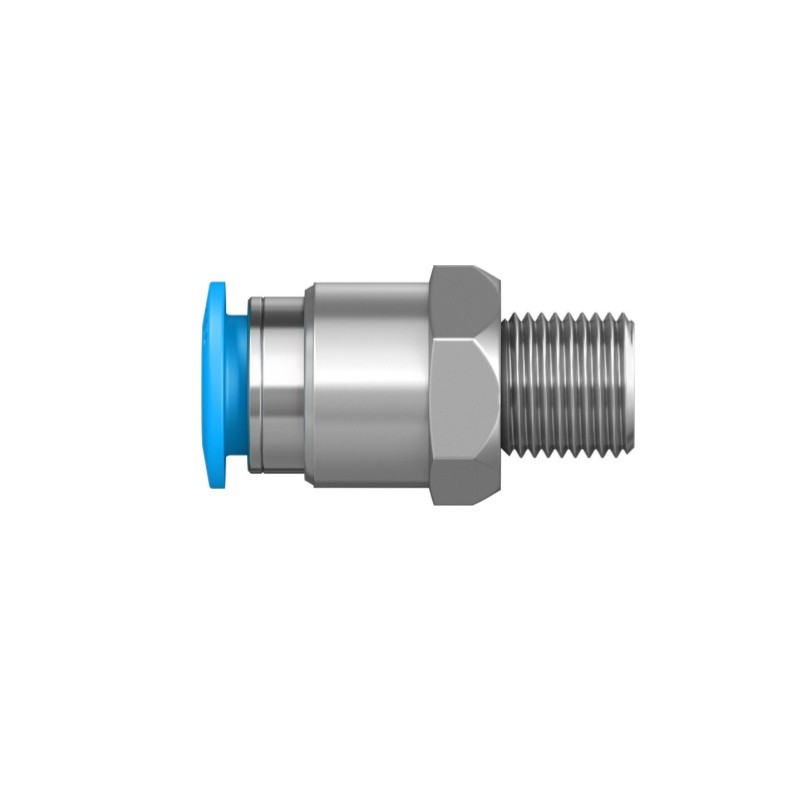

QS-1/8-8, Part No.153068, belongs to Festo QS series straight push-in fitting. It adopts push-pull quick connection principle, connects G1/8 parallel male thread port with 8mm OD pneumatic tube. Tubes can be inserted and removed rapidly without tools. Compact and reliable sealing performance, widely used for connecting valves, cylinders and air pipes in automation pneumatic circuits.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QS-1/8-8 |
| Part No. | 153068 |
| Type | Straight push-in fitting |
| Thread | G1/8 male parallel thread |
| Tube OD | 8 mm |
| Nominal bore | 6 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 11.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, G parallel thread, tool-free assembly |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
