DSNU-16-25-PPV-A
Product Overview

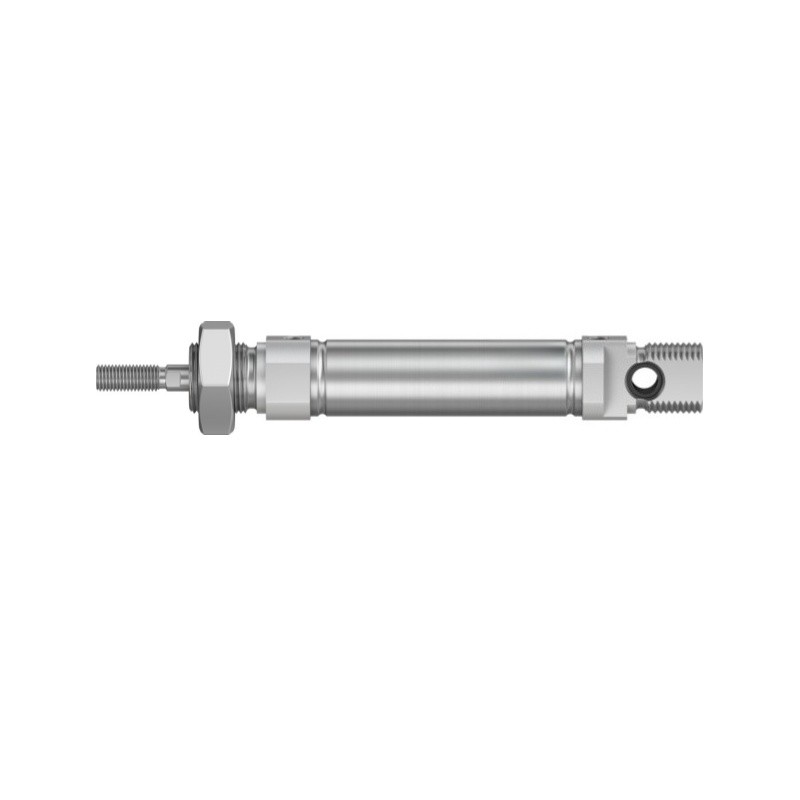

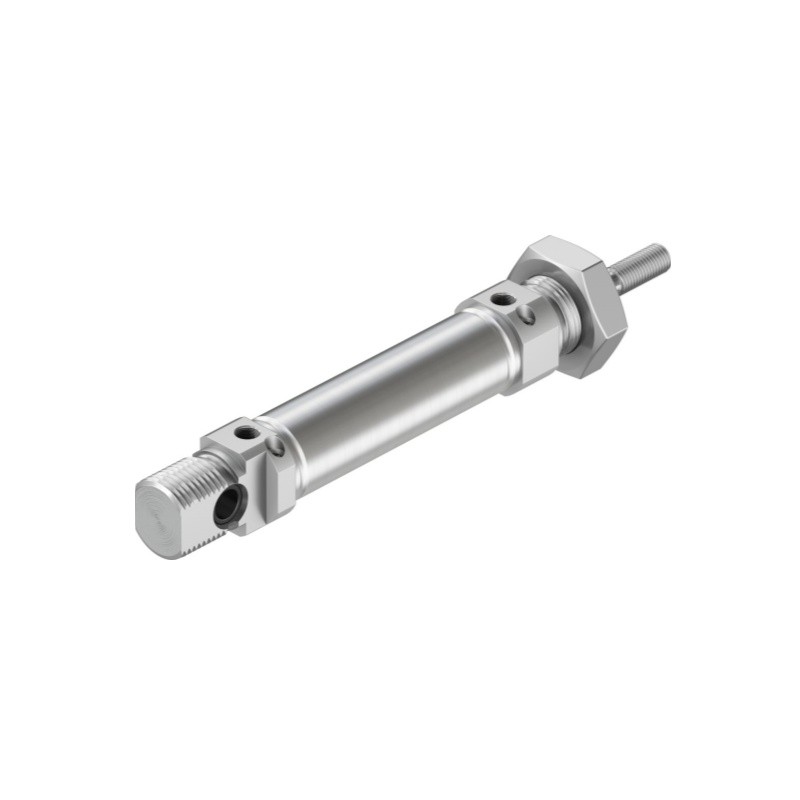

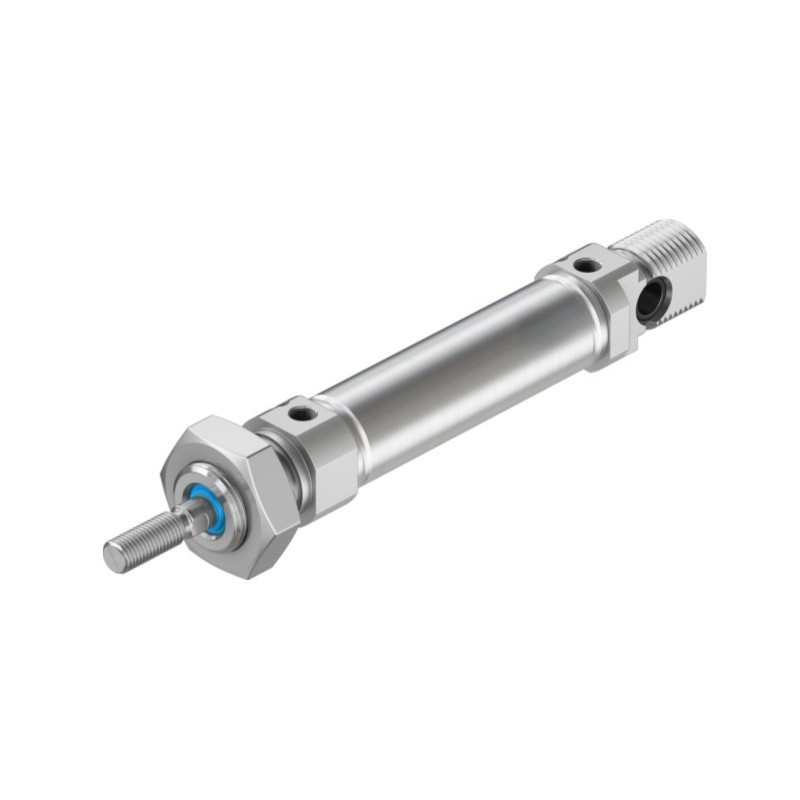

DSNU-16-25-PPV-A, Part No.19230, belongs to Festo DSNU series ISO 6432 standard round cylinder. It is double acting type with 16mm bore and 25mm stroke. PPV stands for adjustable pneumatic cushioning at both stroke ends to reduce impact and noise. A variant with sensor grooves for magnetic proximity switch to detect piston position. Lightweight anodised aluminium barrel and stainless steel piston rod, versatile mounting options. It is widely adopted for general linear push-pull movement in automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DSNU-16-25-PPV-A |
| Part No. | 19230 |
| Type | Round cylinder, double acting |
| Piston diameter | 16 mm |
| Stroke | 25 mm |
| Cushioning | PPV: adjustable pneumatic cushioning at both ends |
| Pneumatic port | M5 |
| Theoretical force @6 bar | Advance: 121 N, Return: 92 N |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 0.6 ~10 bar |
| Temperature range | -20 ~ 80 ℃ |
| Material | Barrel: anodised aluminium; Piston rod: high-alloy stainless steel; Seal: NBR |
| Weight | 105.00 g |
| Feature | A: sensor grooves for proximity switch, adjustable air cushion, ISO 6432 standard |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Standard | ISO 6432 |
