DSR-16-180-P
Product Overview

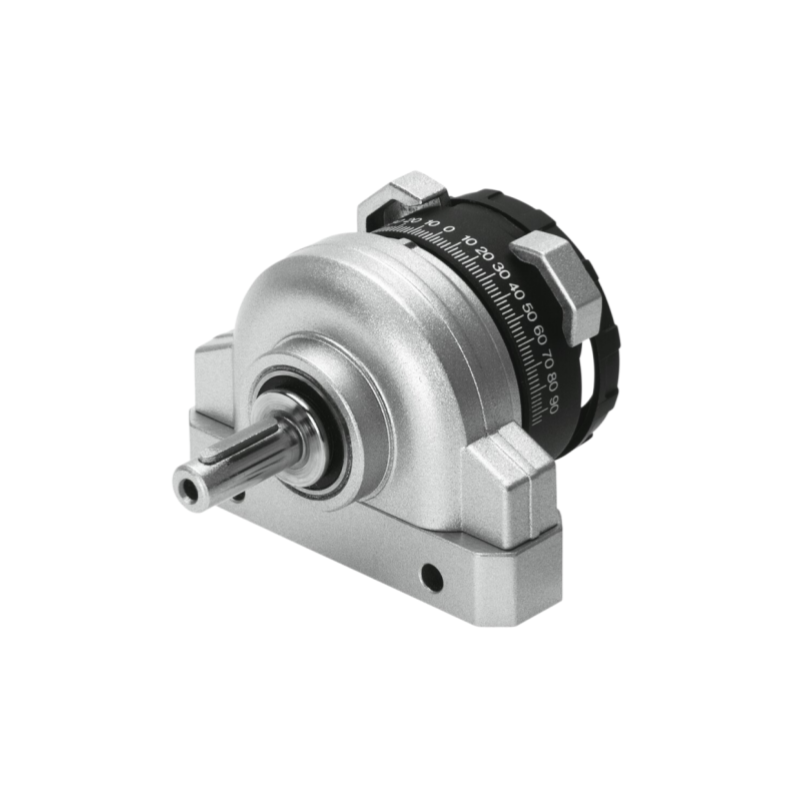

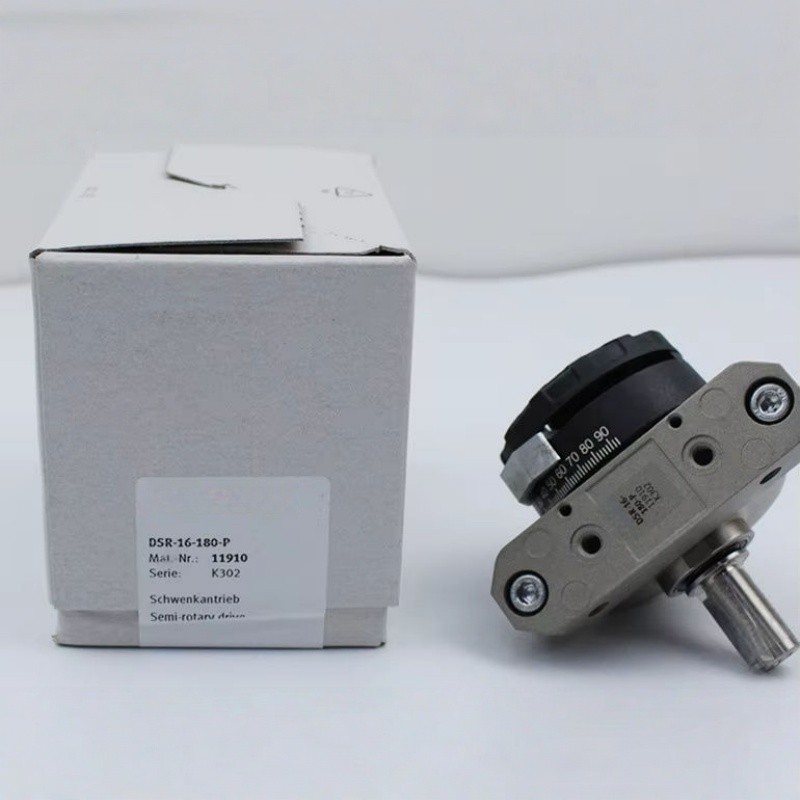

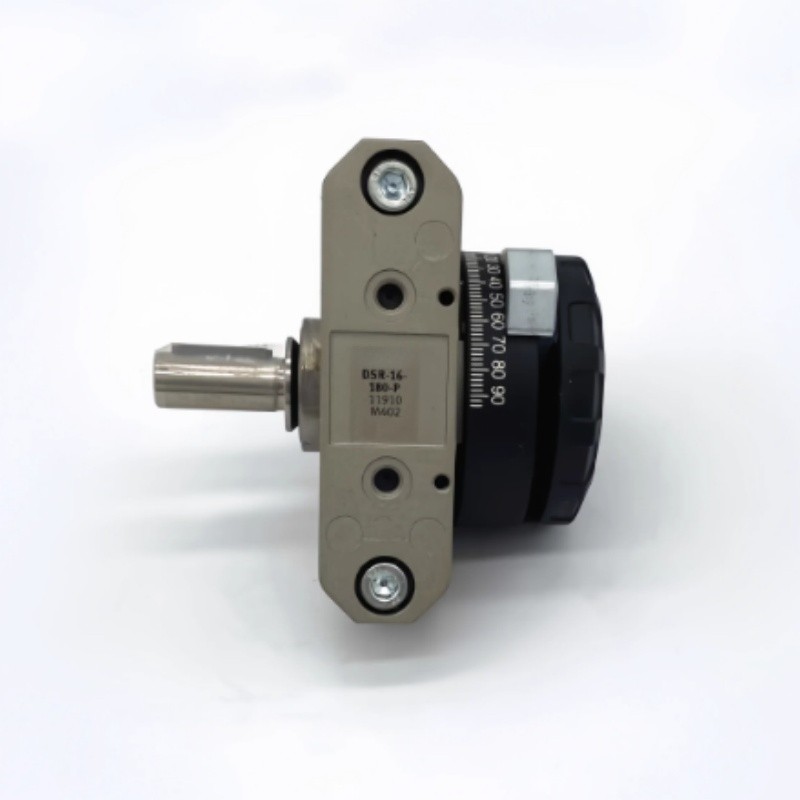

DSR-16-180-P, Part No.11910, belongs to Festo DSR series semi-rotary drive. Adopts vane structure, double acting design with spigot shaft. Swivel angle can be adjusted from 0 to 180°, theoretical torque 2 Nm at 6 bar. Equipped with elastic cushion plates at both ends to absorb impact. Suitable for rotary flipping, indexing and positioning tasks in automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DSR-16-180-P |
| Part No. | 11910 |
| Type | Semi-rotary drive, vane type, double acting |
| Size | 16 |
| Swivel angle | 0 ~ 180 ° |
| Theoretical torque @6 bar | 2 Nm |
| Pneumatic port | M5 |
| Working medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Working pressure | 2 ~ 8 bar |
| Temperature range | -10 ~ 60 ℃ |
| Cushioning | Elastic cushion plates at both ends |
| Material | Housing: Die-cast zinc, Shaft: Nickel-plated steel, Cover: Reinforced PA, Seal: NBR |
| Weight | 300.00 g |
| Mounting | Through-hole mounting, any mounting position |
| Feature | Vane principle, spigot shaft, adjustable swivel angle |
| RoHS | Compliant |
| Corrosion resistance class | CRC2 |
