CPX-AP-I-PN-M12
Product Overview

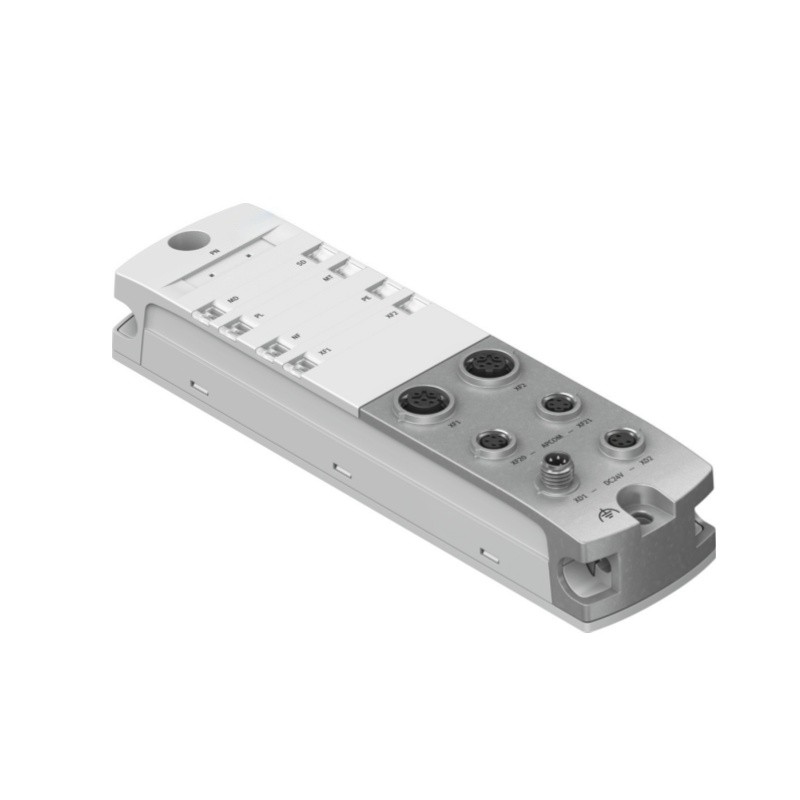

CPX-AP-I-PN-M12, Part No.8086607, is Festo CPX-AP series PROFINET fieldbus interface module. It adopts M12 network connector, supports PROFINET CC-C protocol including MRP, CiR and IRT functions. It can connect up to 80 modules with max.1024 bytes input and 1024 bytes output address space. IP65/IP67 protection grade, built-in LED status diagnosis and reverse polarity protection. Widely used for CPX-AP remote I/O and valve terminal communication in industrial automation.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CPX-AP-I-PN-M12 |
| Part No. | 8086607 |
| Type | PROFINET fieldbus interface module |
| Communication protocol | PROFINET CC-C |
| Network port | M12 connector |
| Max. modules | 80 |
| Max. I/O address space | 1024 Byte input /1024 Byte output |
| Nominal voltage | 24 VDC |
| Ambient temperature | -20 ~ 60 ℃ |
| Storage temperature | -40 ~ 70 ℃ |
| Protection class | IP65 / IP67 |
| Dimension(W×L×H) | 45 × 170 × 35 mm |
| Weight | 186.00 g |
| Material | Housing: PA, PC, Nickel-plated die-cast zinc, O-ring: FPM |
| Feature | LED diagnosis, reverse polarity protection, Auto-MDI/MDI-X, MRP, CiR |
| Corrosion resistance class | CRC1 |
| RoHS | Compliant |
| Certification | c UL us, CE, UKCA, KC |
