552794 CRDSNU-63-400-P-A
Product Overview

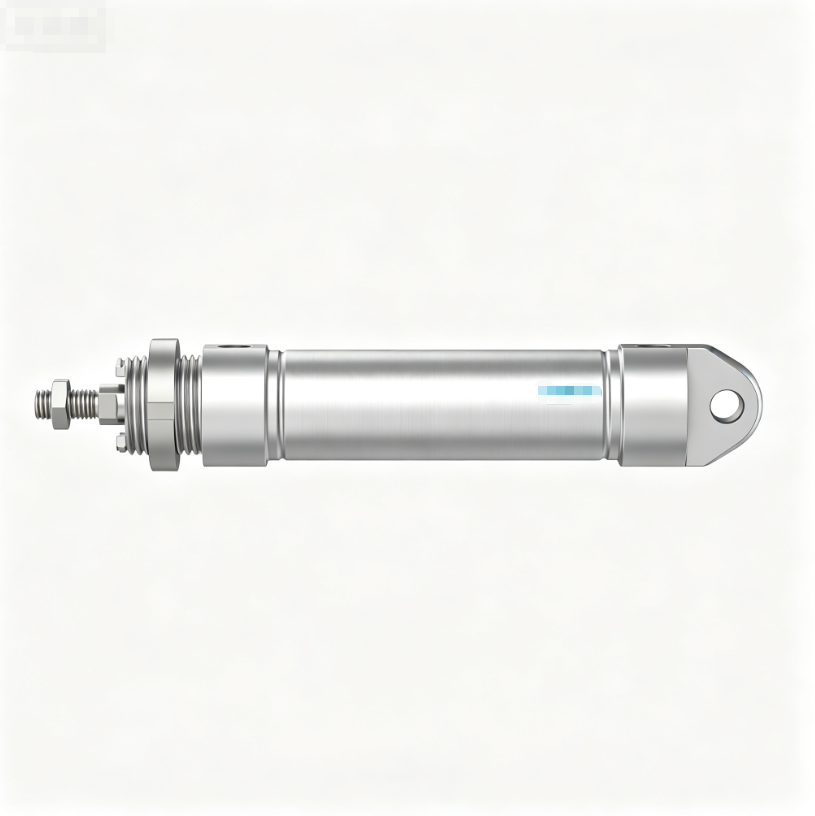

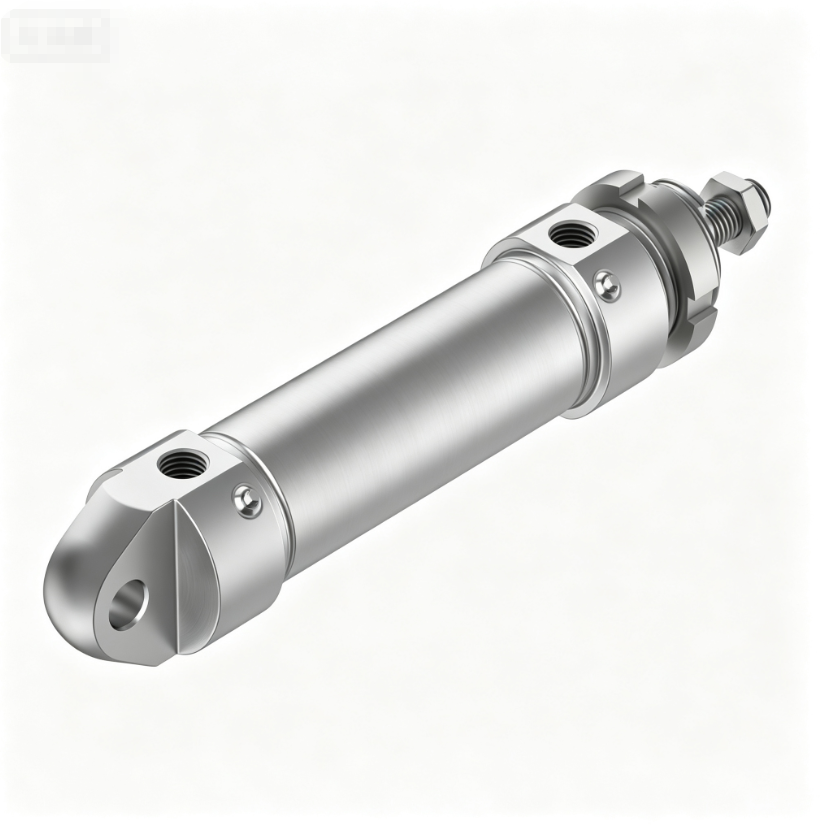

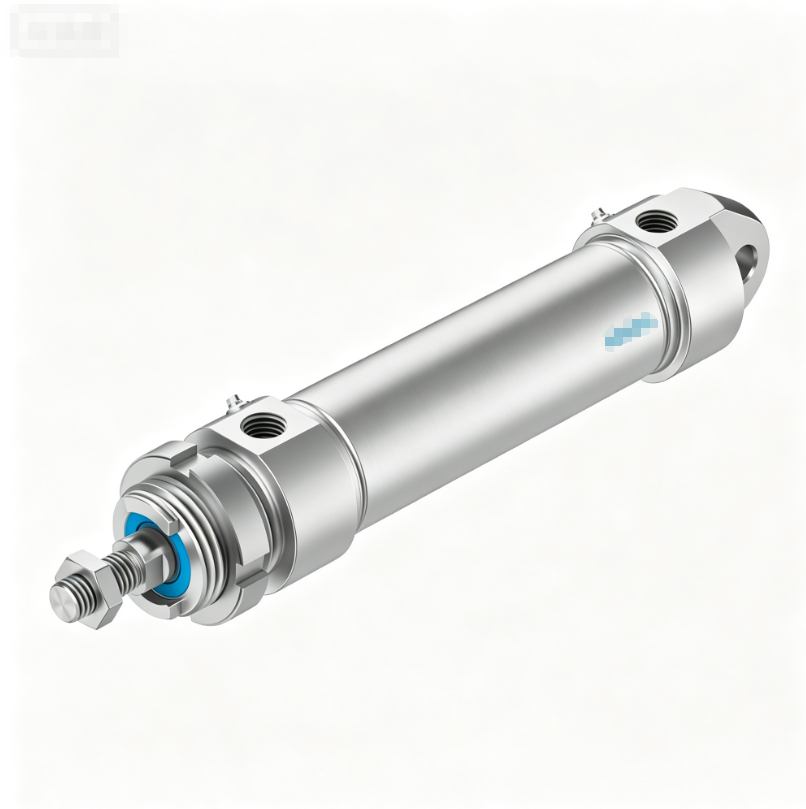

CRDSNU-63-400-P-A (Part No.552794) is Festo CRDSNU series stainless steel round body pneumatic cylinder. Bore 63mm, stroke 400mm, double acting design with threaded piston rod. The barrel and piston rod are made of stainless steel for superior corrosion resistance. It comes with built-in magnetic piston to mount magnetic position sensors, and adjustable end cushioning to absorb impact and reduce vibration during operation. Working pressure 0.1~10 bar, ambient temperature -20~80℃. RoHS compliant. Widely applied for linear motion tasks in packaging, food machinery and other industrial automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | CRDSNU-63-400-P-A |
| MPN | 552794 |
| Product Type | Pneumatic Cylinder, Round Body Cylinder |
| Series | CRDSNU Series |
| Bore | 63 mm |
| Stroke | 400 mm |
| Version | Double-acting, piston rod with external thread |
| Material | Barrel: Stainless steel; End caps: Aluminium alloy; Piston rod: Stainless steel |
| Working Medium | Compressed air (ISO 8573-1:2010) |
| Working Pressure | 0.1 ~ 10 bar |
| Ambient Temperature | -20 ~ 80 ℃ |
| Feature | Stainless steel round cylinder, corrosion resistant, magnetic piston for position sensor mounting, adjustable cushioning |
| Compliance | RoHS compliant |
| Application | Industrial automation linear motion, handling equipment, packaging machine actuator |
