532447 DGC-25-240-GF-PPV-A
Product Overview

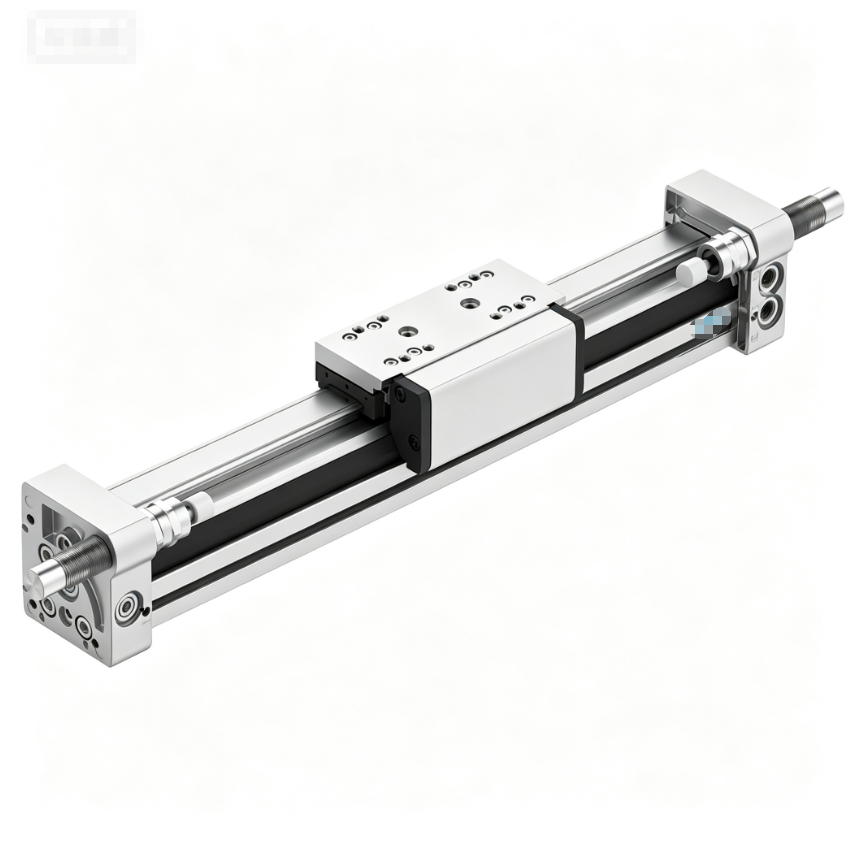

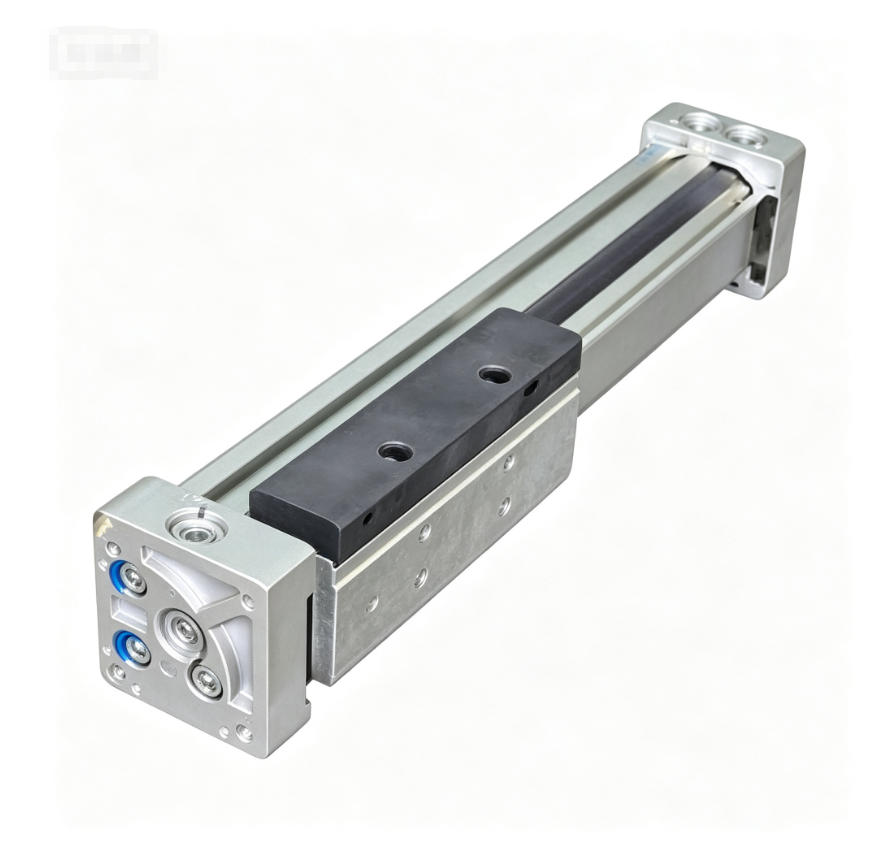

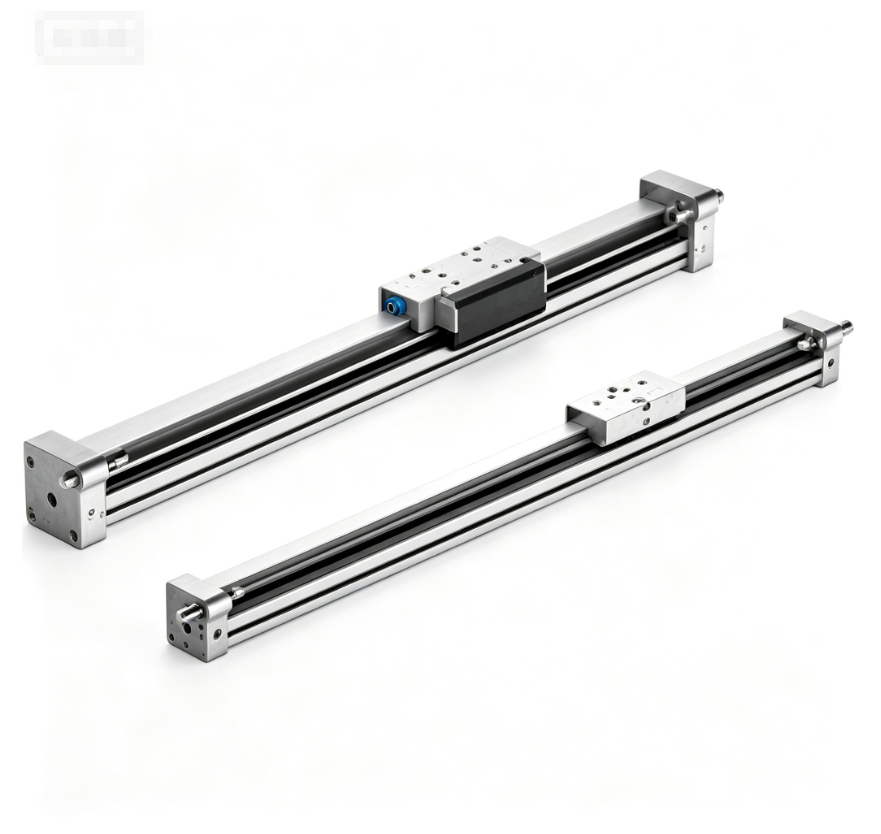

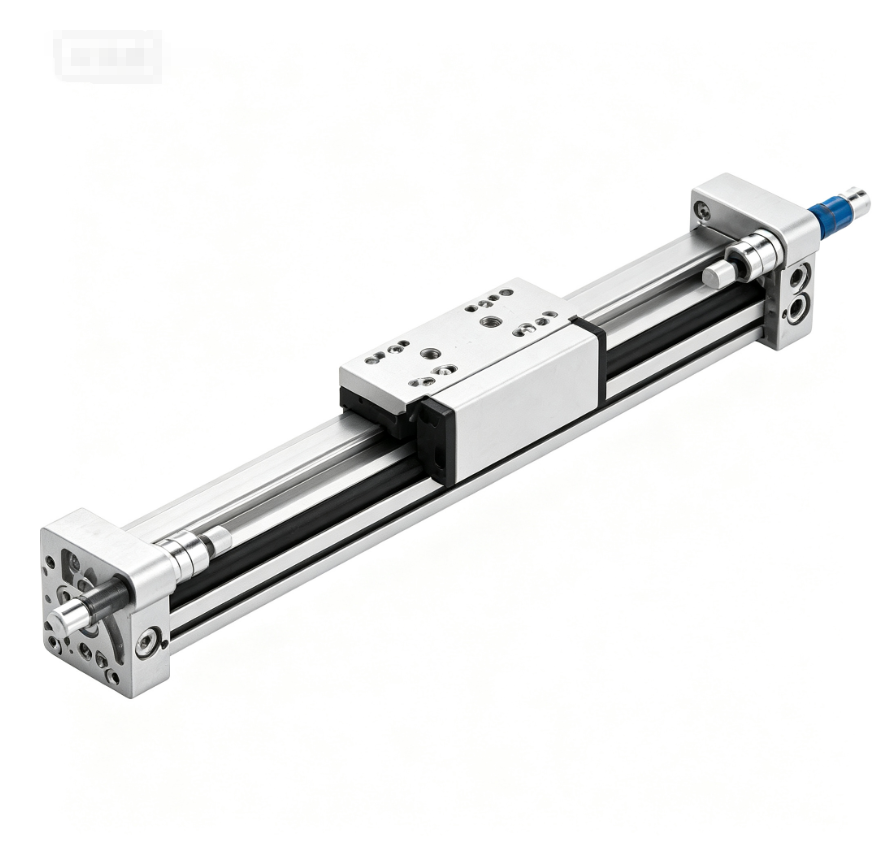

DGC-25-240-GF-PPV-A (Part No.532447) is Festo DGC series rodless pneumatic linear drive. Bore size 25mm, stroke 240mm, equipped with GF integrated guided carriage and PPV adjustable pneumatic end cushioning. This rodless design saves installation space compared to traditional rod cylinders. The built-in guided carriage can withstand radial loads and torque, ensuring stable linear movement. PPV pneumatic cushion absorbs impact and reduces vibration at stroke ends. Working pressure 0.4~8 bar, ambient temperature -10~60℃. CE & RoHS compliant. Widely used for linear transfer, pick & place and gantry motion in industrial automation machinery.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DGC-25-240-GF-PPV-A |
| MPN | 532447 |
| Product Type | Pneumatic Linear Drive, Rodless Cylinder |
| Series | DGC Series |
| Bore | 25 mm |
| Stroke | 240 mm |
| Version | GF Guided Carriage, PPV Pneumatic End Cushioning |
| Working Medium | Compressed air (ISO 8573-1:2010) |
| Working Pressure | 0.4 ~ 8 bar |
| Ambient Temperature | -10 ~ 60 ℃ |
| Feature | Rodless linear cylinder with integrated guide carriage, PPV adjustable pneumatic cushioning, compact space-saving design, high load capacity, bears radial load and torque |
| Compliance | RoHS compliant, CE certified |
| Application | Industrial automation linear handling, pick and place, gantry systems, linear transfer equipment |
