1003865

Attribute Name	Value
Brand	SICK
Model	PL80A
Order No.	1003865
Series	PL Series Reflector
Type	Retro-reflective Reflector
Reflective Area	80mm × 80mm
Overall Dimension	84mm × 84mm × 8.5mm
Material	PMMA / ABS
Mounting	2-hole screw mounting
Operating Temp	-30℃ ~ +65℃
Net Weight	0.03kg
Gross Weight	0.06kg
Packing	Plastic bag + carton
Origin	Germany
Warranty	1 year
Condition	New Original
Application	Matching for retro-reflective photoelectric sensors, automation production line, conv

INQUIRY

Product Details

Product Tags

Product Overview

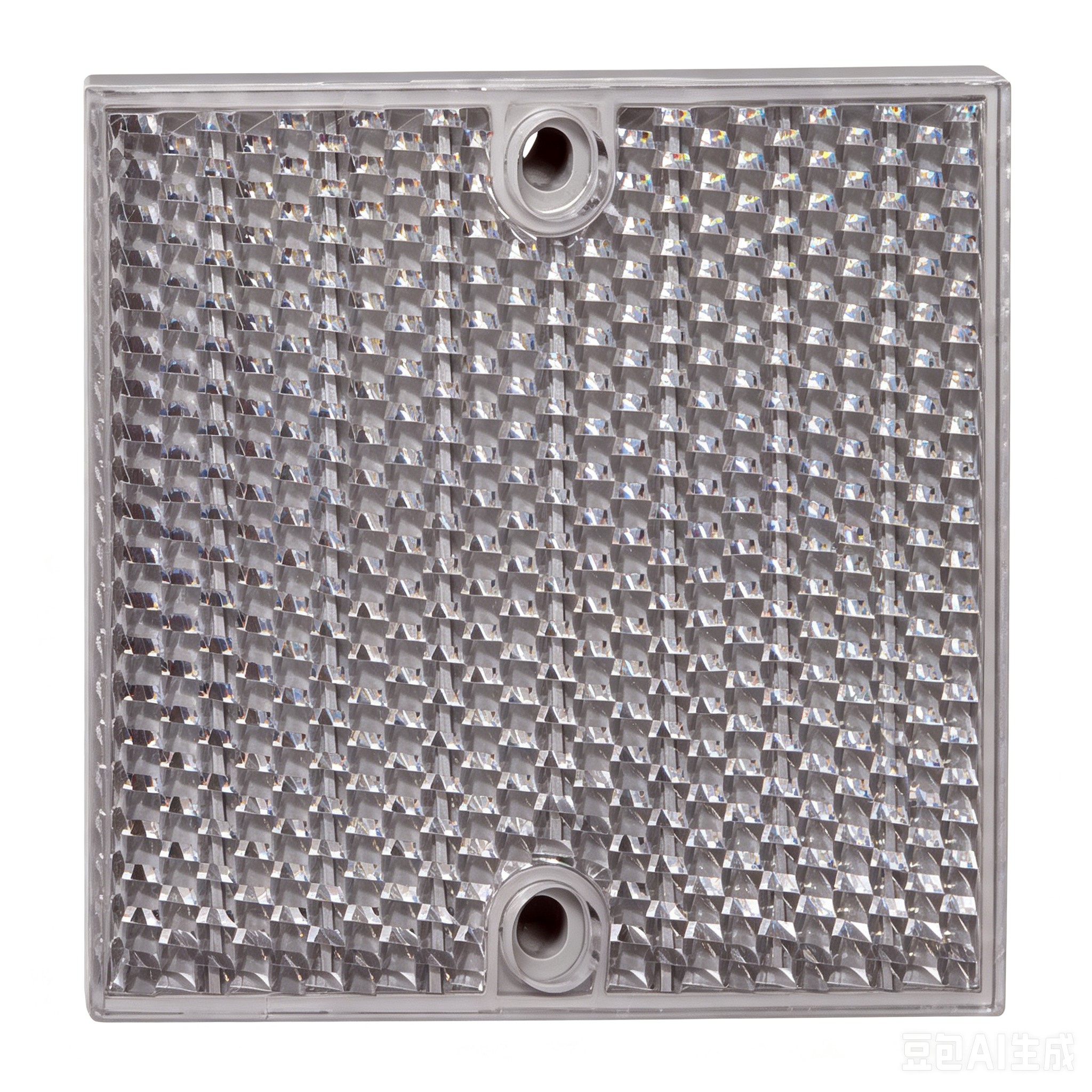

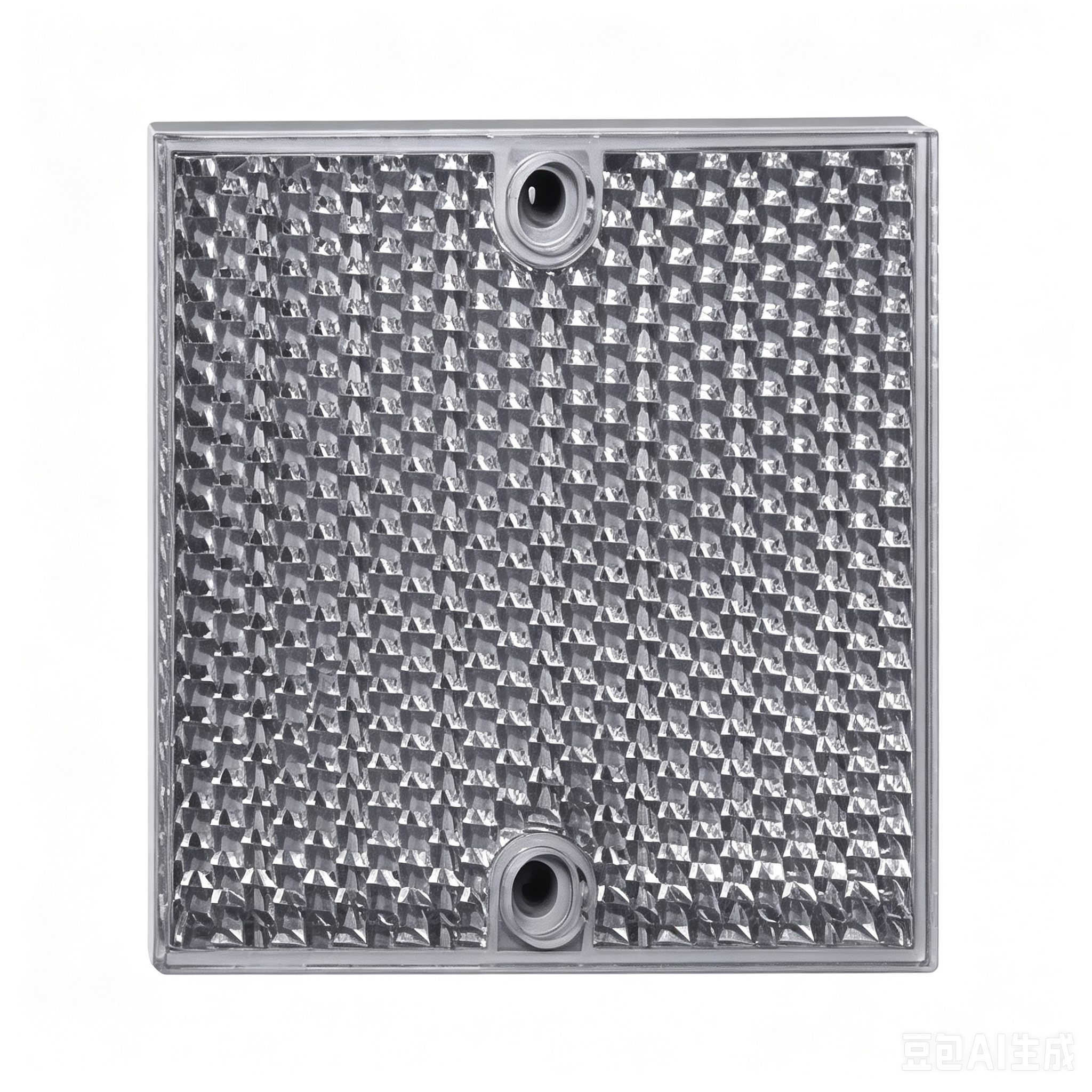

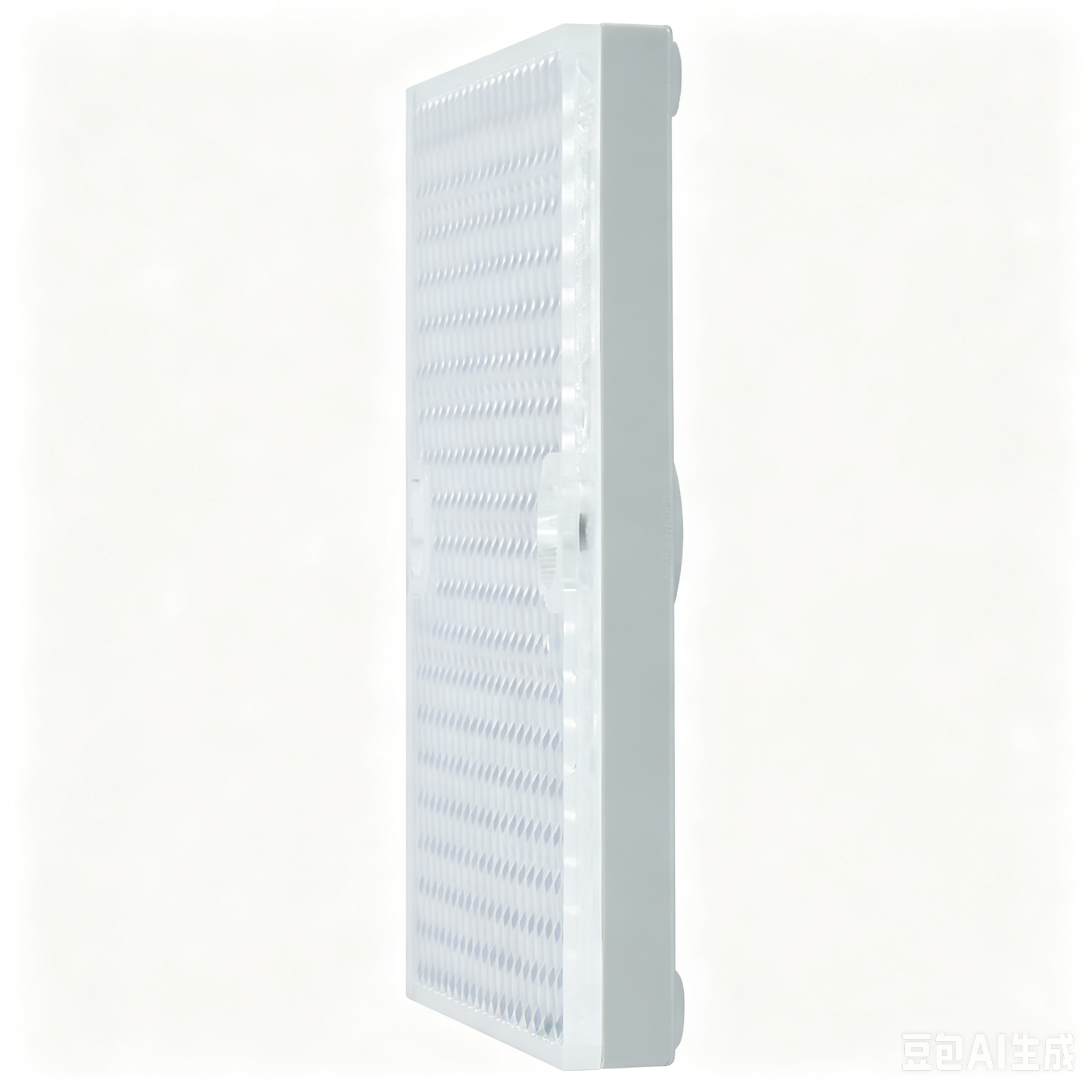

SICK PL80A, Order No.1003865, is a retro-reflective reflector from PL series. The reflective area is 80mm×80mm, overall dimension 84mm×84mm×8.5mm, made of PMMA/ABS. It adopts 2-hole screw mounting method. Operating temperature ranges from -30℃ to +65℃. It is supporting accessory for SICK retro-reflective photoelectric sensors, widely applied in automatic production line, conveyor and packaging equipment.

Attribute Name	Value
Brand	SICK
Model	PL80A
Order No.	1003865
Series	PL Series Reflector
Type	Retro-reflective Reflector
Reflective Area	80mm × 80mm
Overall Dimension	84mm × 84mm × 8.5mm
Material	PMMA / ABS
Mounting	2-hole screw mounting
Operating Temp	-30℃ ~ +65℃
Net Weight	0.03kg
Gross Weight	0.06kg
Packing	Plastic bag + carton
Origin	Germany
Warranty	1 year
Condition	New Original
Application	Matching for retro-reflective photoelectric sensors, automation production line, conveyor, packaging machinery, compatible with SICK W18, W27 photoelectric sensors
