QS-6
Product Description

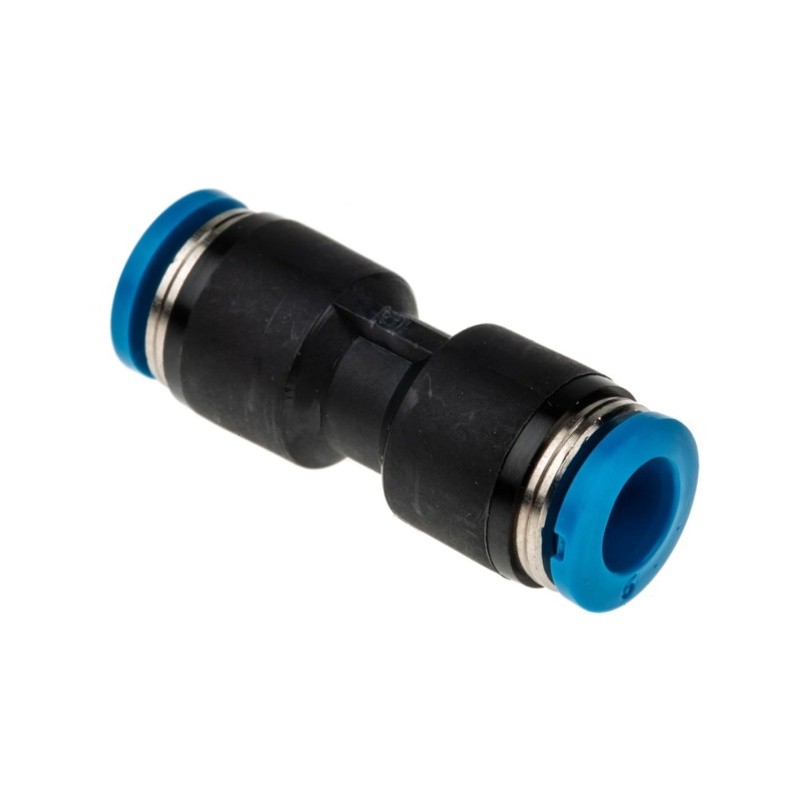

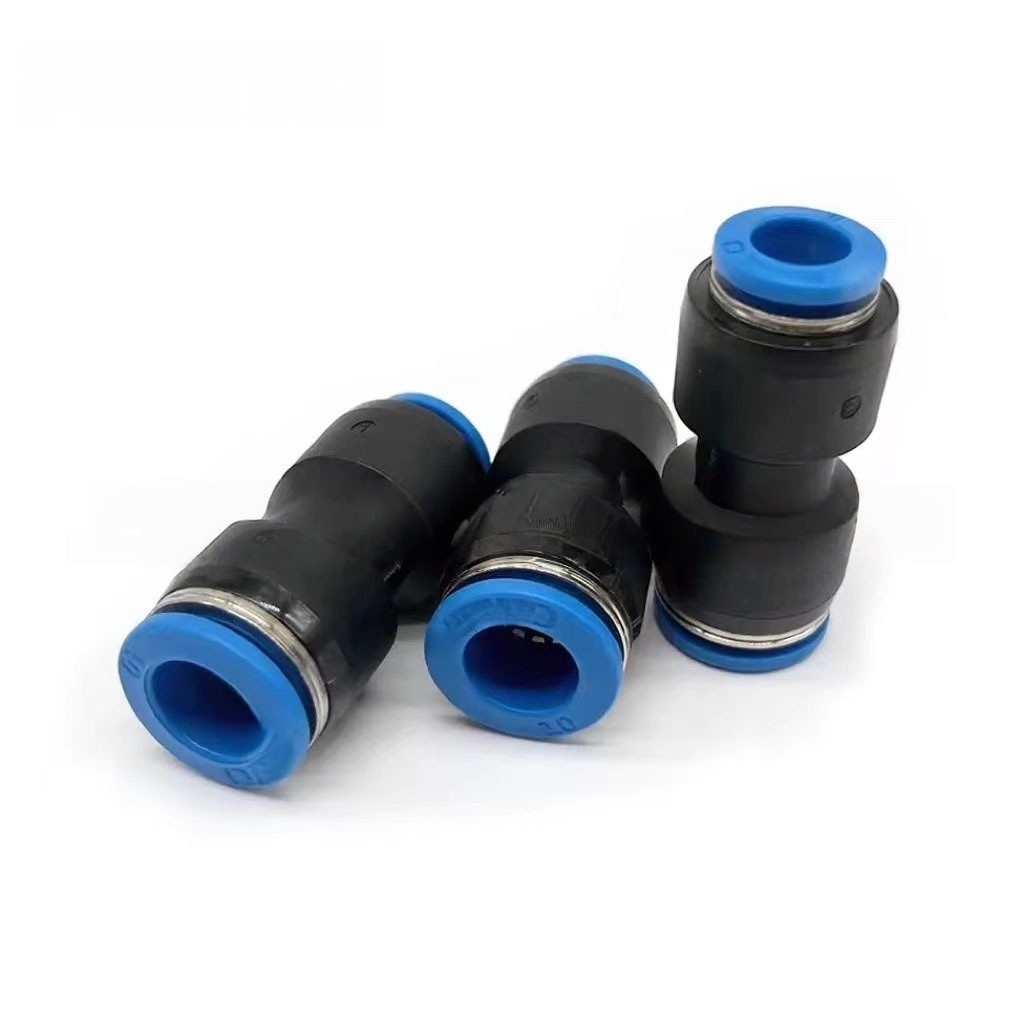

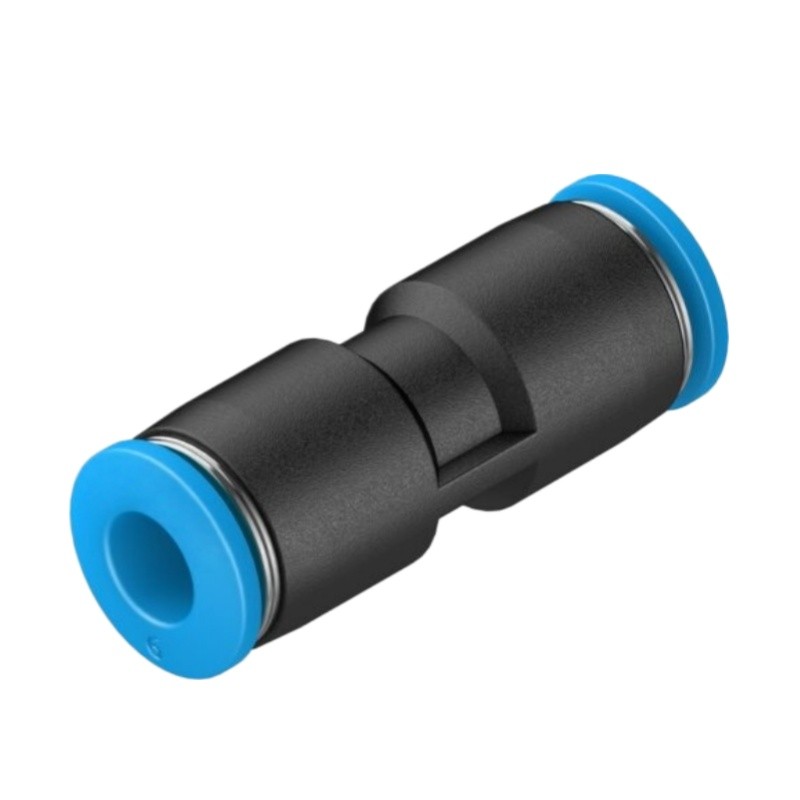

Festo QS-6 (Part No.153032) is QS series straight push-in pneumatic fitting, used to connect two pieces of 6mm OD pneumatic tubing. With push-pull quick connection design, tubing can be inserted and removed easily without tools.
Nominal width 4.3 mm, working pressure range -0.095~1.4 MPa, ambient temperature -10~80℃. The body is made of PBT material with stainless steel retaining ring for stable clamping. CRC1 corrosion resistance, LABS & RoHS compliant. Ideal for compressed air circuits in automation equipment.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | QS-6 |
| Part Number | 153032 |
| Type | Straight push-in union |
| Port | For 6mm OD tubing both sides |
| Nominal Width | 4.3 mm |
| Operating Pressure | -0.095 ~1.4 MPa |
| Ambient Temp | -10 ~ 80 ℃ |
| Weight | 6.50 g |
| Material | PBT, stainless steel retaining ring |
| Corrosion Class | CRC1 |
| Standard | LABS, RoHS |
