ADNGF-50-100-P-A
Product Overview

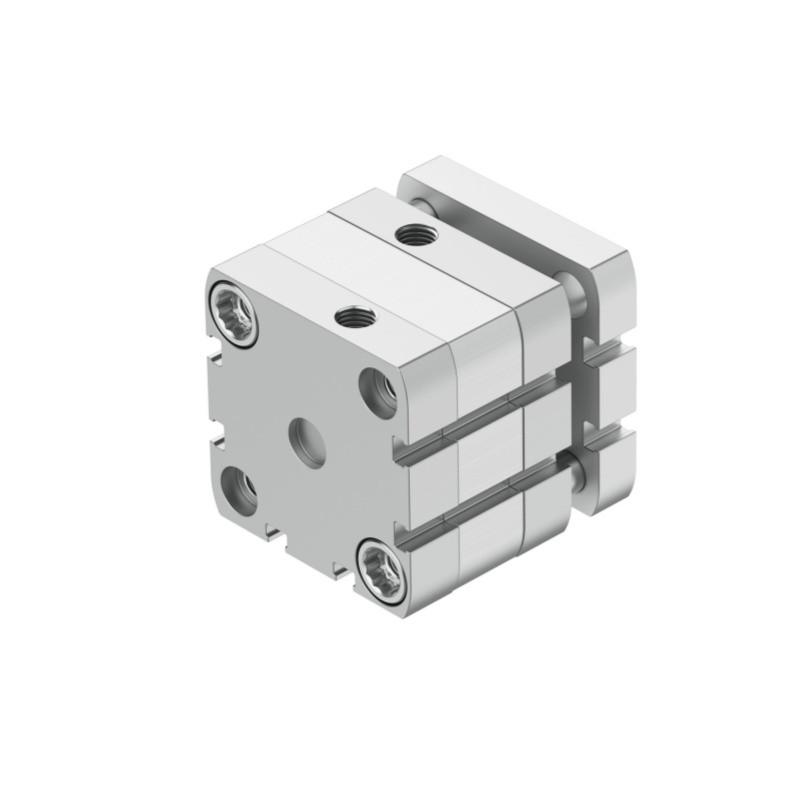

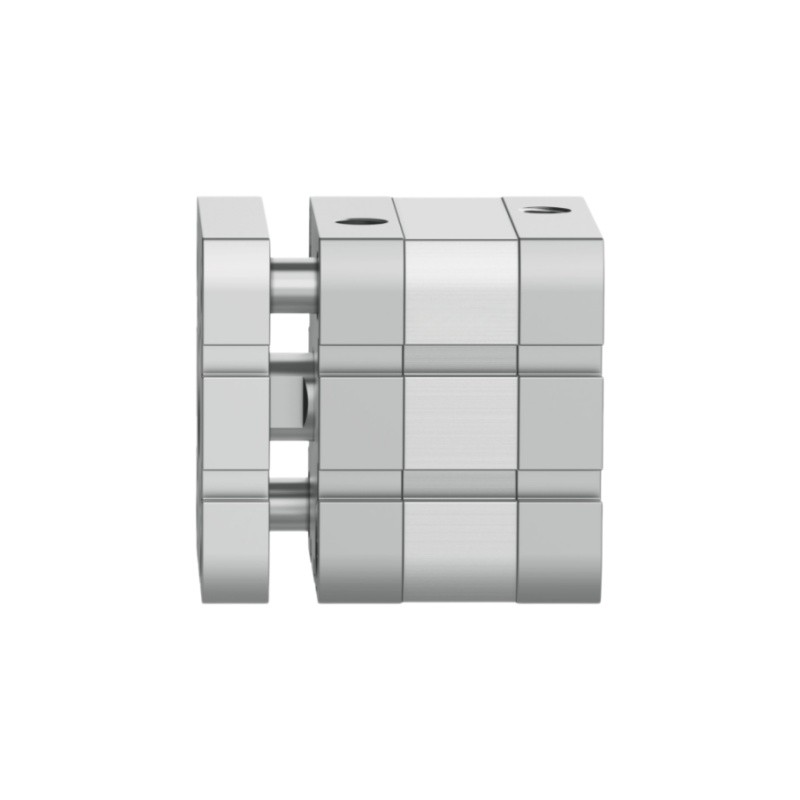

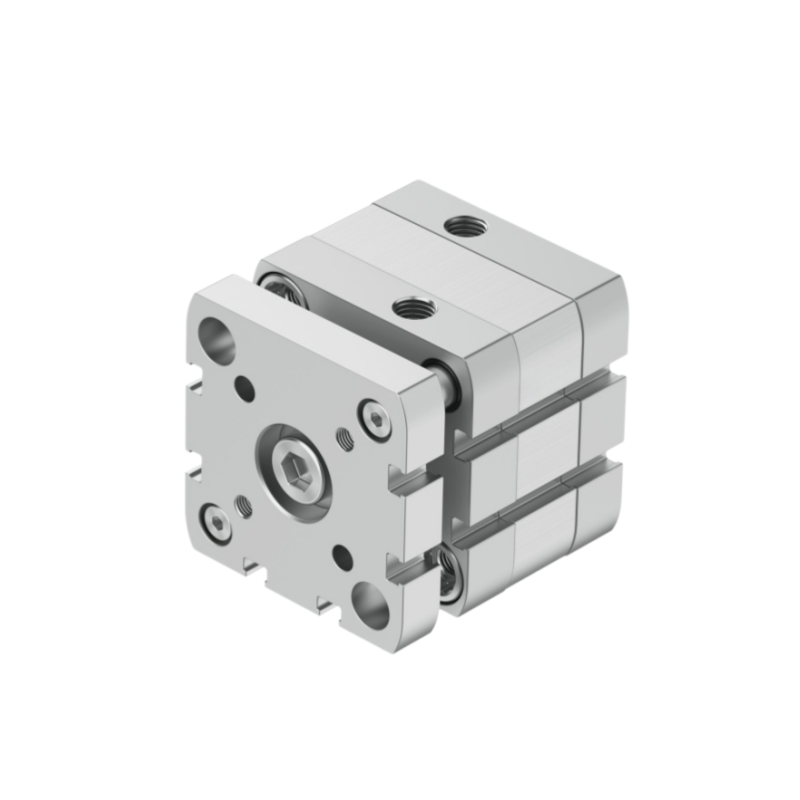

FESTO ADNGF-50-100-P-A belongs to ADNGF compact guided cylinder series. Double acting design, bore 50mm, stroke 100mm, conforming to ISO21287 standard. Equipped with guide rod for anti-torsion function, built-in piston magnet for proximity switch detection. G1/4 air port, elastic cushion rings on both ends to reduce impact. Aluminium alloy barrel, stable linear movement, can be installed at any orientation, widely used for pushing, lifting and pick-and-place tasks in automation equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | ADNGF-50-100-P-A |
| Order No. | 554274 |
| Product Series | ADNGF |
| Product Type | Compact Guided Pneumatic Cylinder |
| Action Type | Double-acting |
| Piston Diameter | 50 mm |
| Stroke | 100 mm |
| Standard | ISO 21287 |
| Pneumatic Port | G1/4 |
| Cushioning | Elastic cushion rings at both ends |
| Operating Pressure | 1 ~ 10 bar |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Barrel Material | Aluminium alloy |
| Piston Rod & Guide Rod | High-strength steel |
| Seal Material | NBR |
| Feature | Built-in magnet for proximity sensor, anti-torsion guide rod |
| Mounting | Any mounting position |
| Corrosion Resistance Class | CRC 2 |
| Certificate | RoHS, CE |
| Origin | Germany |
| Condition | New Original |
