QSRL-G1/4-8
Product Description

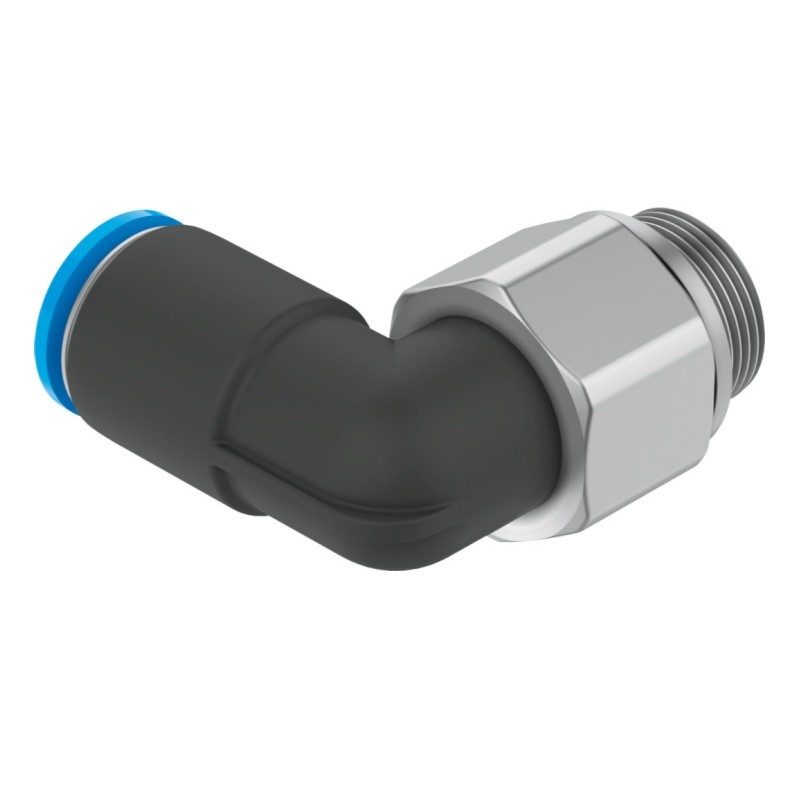

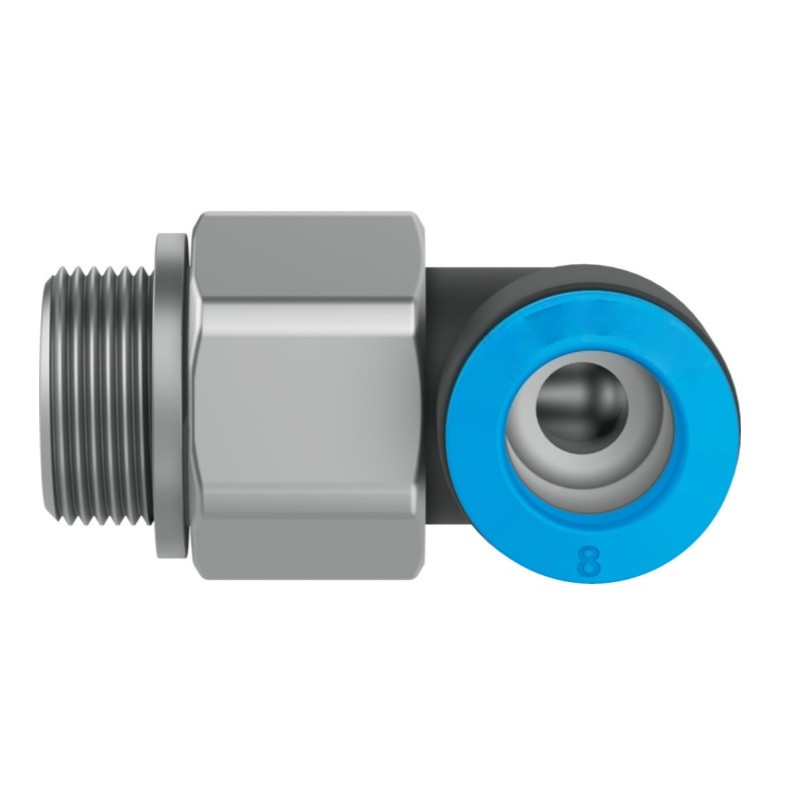

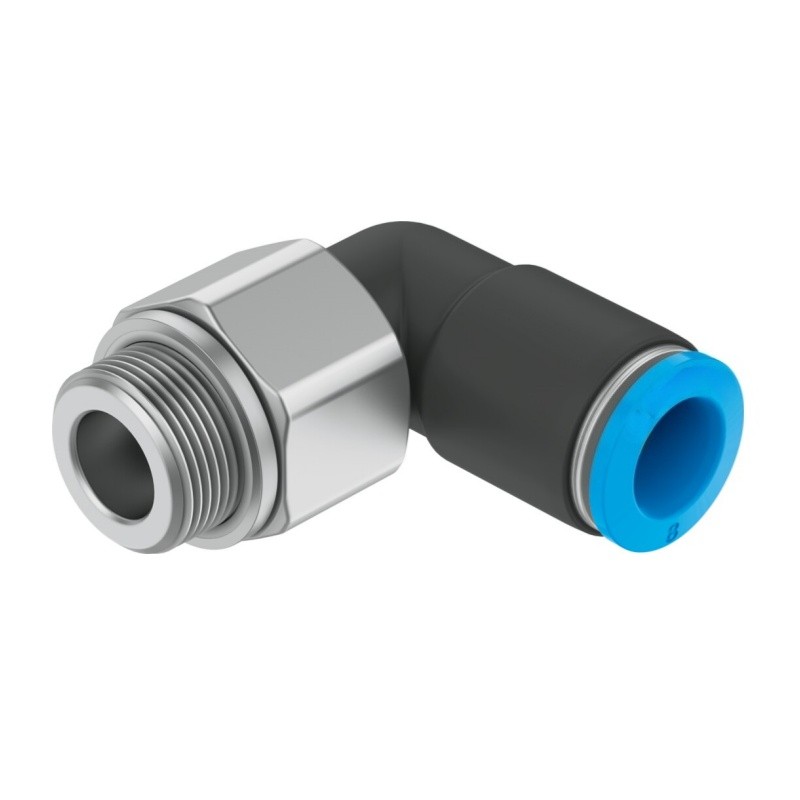

Festo QSRL-G1/4-8 (Part No.186289) is an L-type rotatable push-in pneumatic fitting of QSRL series. It features G1/4 male thread and fits tubing with outer diameter 8mm. The elbow can rotate 360° up to 400 rpm, convenient for pipeline layout.
Nominal width 4.6 mm, working pressure range -0.095~1.4 MPa, ambient temperature 0~60°C. Adopt push-pull principle for quick tube insertion and release. Brass nickel-plated body with sealing ring, stable sealing performance. CRC1 corrosion resistance, LABS compliant, suitable for automation pneumatic circuits.
Widely used in automation equipment, packaging machines, conveyor systems. Original Festo pneumatic accessories, ready stock.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | QSRL-G1/4-8 |
| Part Number | 186289 |
| Type | L-type rotatable push-in fitting |
| Port 1 | G1/4 Male Thread |
| Port 2 | For 8mm OD tubing |
| Nominal Width | 4.6 mm |
| Operating Pressure | -0.095 ~ 1.4 MPa |
| Ambient Temp | 0 ~ 60 ℃ |
| Max Rotation Speed | 400 rpm |
| Weight | 31.00 g |
| Corrosion Class | CRC1 |
| Standard | LABS VDMA24364-B1/B2-L |
