SPAU-P10R-W-G18FD-L-PNLK-PNVBA-M8U
Product Overview
Item No: 8001231 Model: SPAU-P10R-W-G18FD-L-PNLK-PNVBA-M8U Brand: Festo Type: Digital Pressure Sensor with Display, SPAU Series

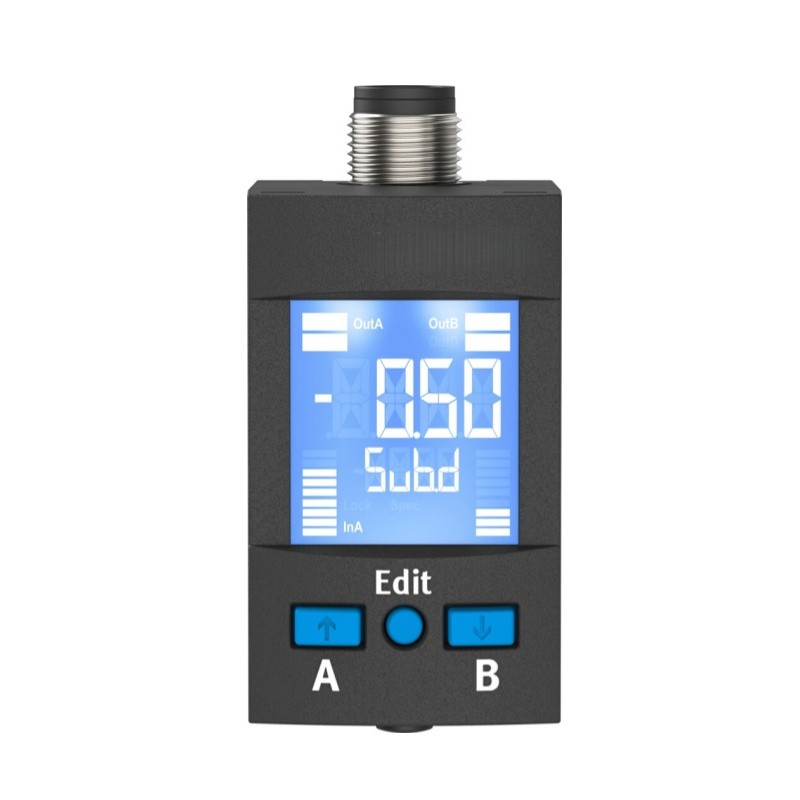

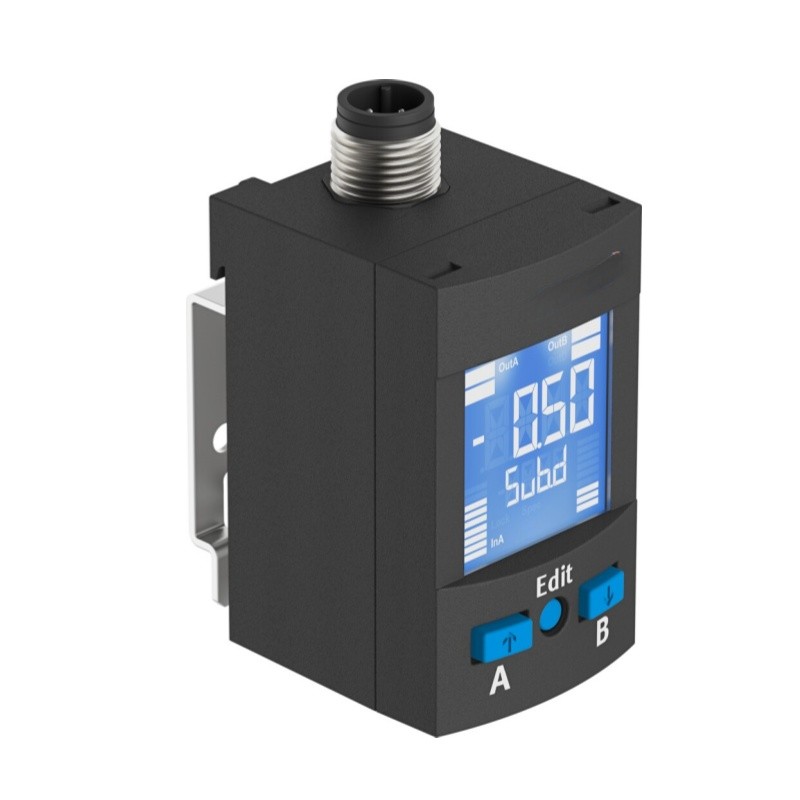

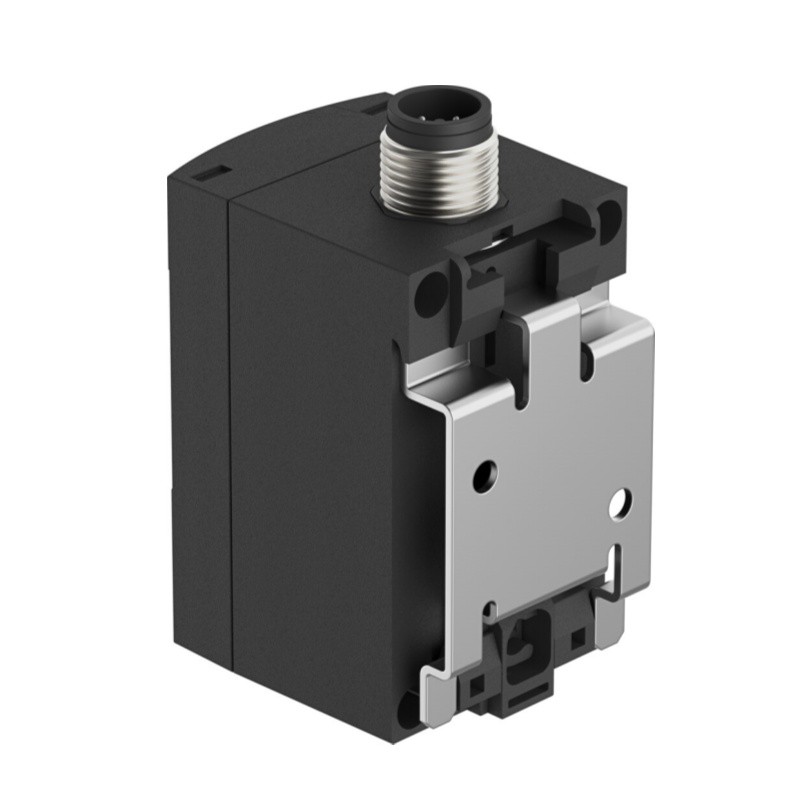

Festo SPAU-P10R-W-G18FD-L-PNLK-PNVBA-M8U digital pressure sensor, part number 8001231, belongs to SPAU series piezoresistive pressure monitoring transmitters. It is designed for relative pressure measurement within 0~10 bar with clear LCD digital display. It supports multiple signal outputs: two programmable switching outputs (PNP/NPN switchable, NO/NC configurable), analog signal and IO-Link V1.1 for intelligent data transmission. G1/8 pneumatic port and M8 A-coded electrical plug, IP65/IP67 protection grade for dust and splash resistance. Made of engineering plastic housing, works with filtered compressed air and inert gas. The switching points can be freely programmed to meet different control requirements. It is widely used in automation equipment for pneumatic pressure monitoring, leak detection and closed-loop pressure feedback control.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | SPAU-P10R-W-G18FD-L-PNLK-PNVBA-M8U |
| Part No. | 8001231 |
| Product Series | SPAU |
| Product Type | Digital Pressure Sensor with display |
| Product Function | Piezoresistive relative pressure sensor, IO-Link, dual switch output + analog output |
| Pneumatic Connection | G1/8 |
| Measuring Range | 0 ~ 10 bar (relative pressure) |
| Overload Pressure | 15 bar |
| Accuracy | ±1.5 %FS, Repeat accuracy ±0.3 %FS |
| ADC Resolution | 12 bit |
| Electrical Connection | M8x1 A-coded plug (EN 61076-2-104) |
| Output | 2×PNP/NPN switchable, freely programmable NO/NC; Analog 0-10V /4-20mA /1-5V; IO-Link V1.1 COM2 |
| Max switch output current | 100 mA |
| Operating Medium | Filtered compressed air ISO 8573-1 [7:4:4], inert gas (lubricated air allowed) |
| Ambient & Medium Temp | 0 ℃ ~ +50 ℃ |
| Housing Material | Engineering plastic |
| Protection Class | IP65 / IP67 |
| Feature | Digital LCD display, freely programmable switching points, IO-Link communication, CRC2 corrosion resistance |
| Application | Pneumatic system pressure monitoring, leak test, pressure control, automation machine pressure feedback |
| Net Weight | 110 g/pc |
| RoHS Compliance | Yes |
