6077705 UM12-11922B1
Product Overview

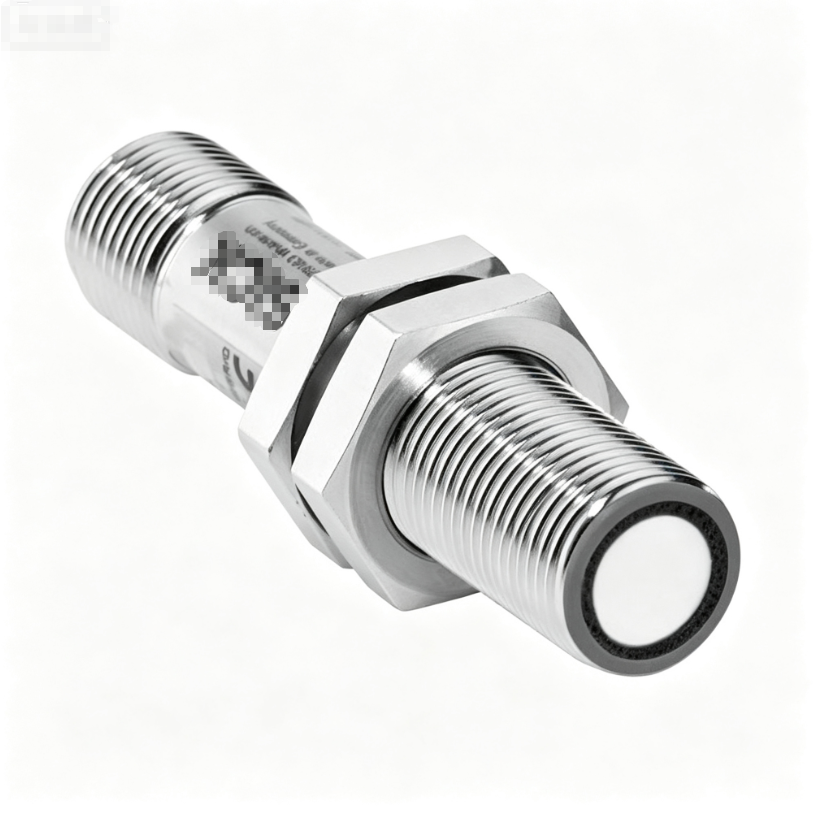

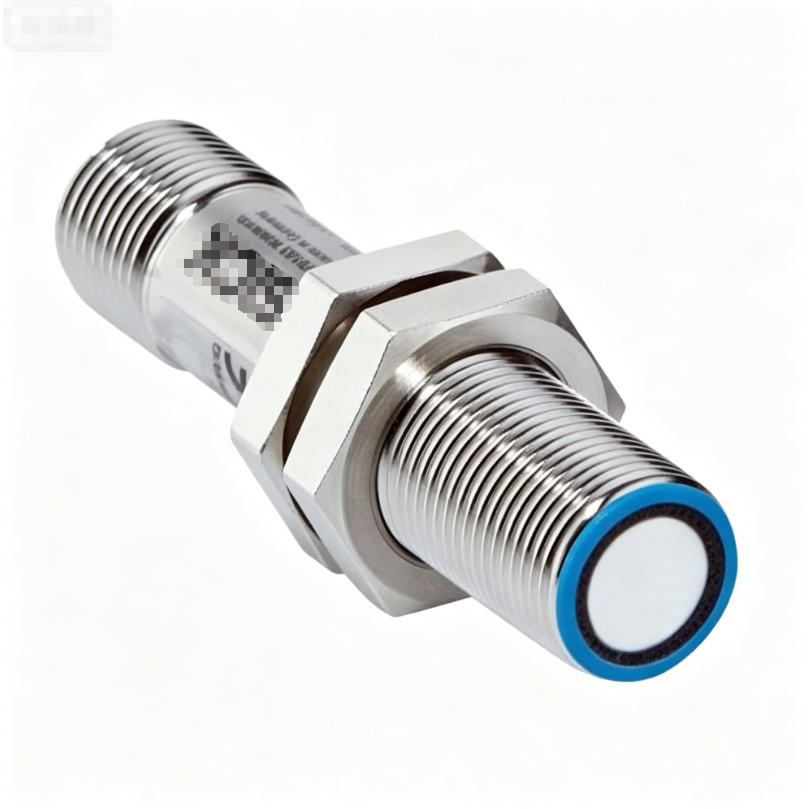

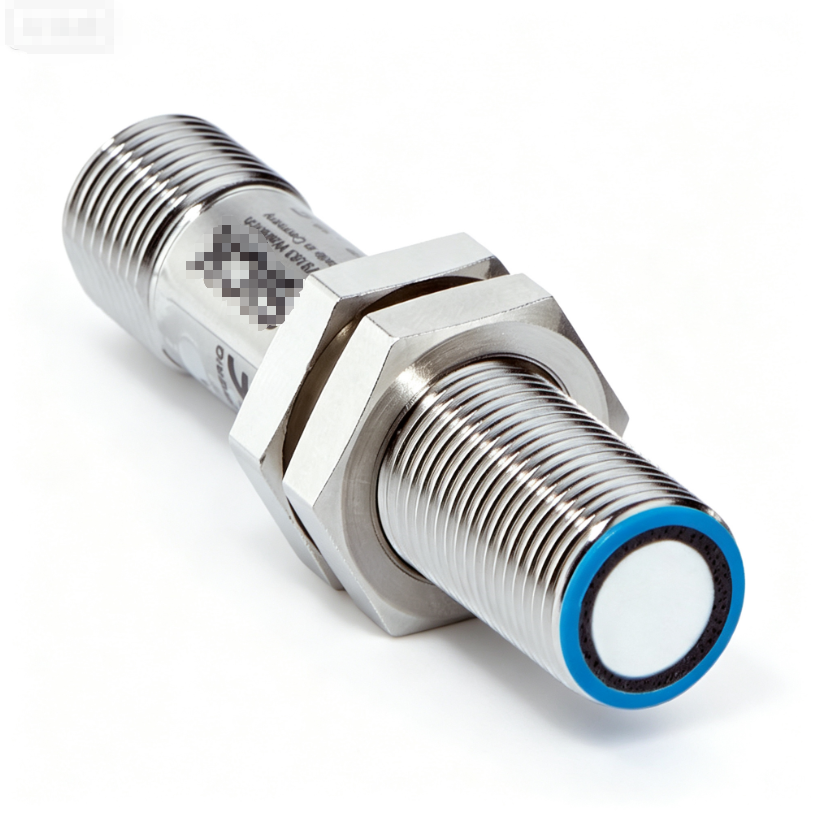

UM12-11922B1 (Part No.6077705) is a compact M12 threaded ultrasonic sensor from SICK UM12 series. It works on ultrasonic distance measurement principle, measuring range 40 mm ~ 240 mm, maximum limit range 350 mm. It supports IO-Link V1.1 communication and PNP/NPN push-pull output. Nickel-plated brass and PBT housing with M12×1 thread, IP65/IP67 protection, operating voltage DC10~30V. Suitable for object detection and material level monitoring in industrial automation. Brand new original SICK sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | UM12-11922B1 |
| Part No. | 6077705 |
| Product Type | Ultrasonic Sensor |
| Series | UM12 |
| Principle | Ultrasonic distance measurement |
| Interface | IO-Link V1.1, PNP/NPN push-pull output |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Housing Material | Nickel-plated brass + PBT |
| Thread Size | M12×1 |
| Protection Class | IP65 / IP67 |
| Measuring Range | 40 mm ~ 240 mm (Limit range:350mm) |
| Condition | New Original |
| Application | Object detection, material level monitoring, conveyor, packaging machine |
| Weight | 0.015 KG |
| Gross Weight | 0.04 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
