DT50-P1113
Product Overview

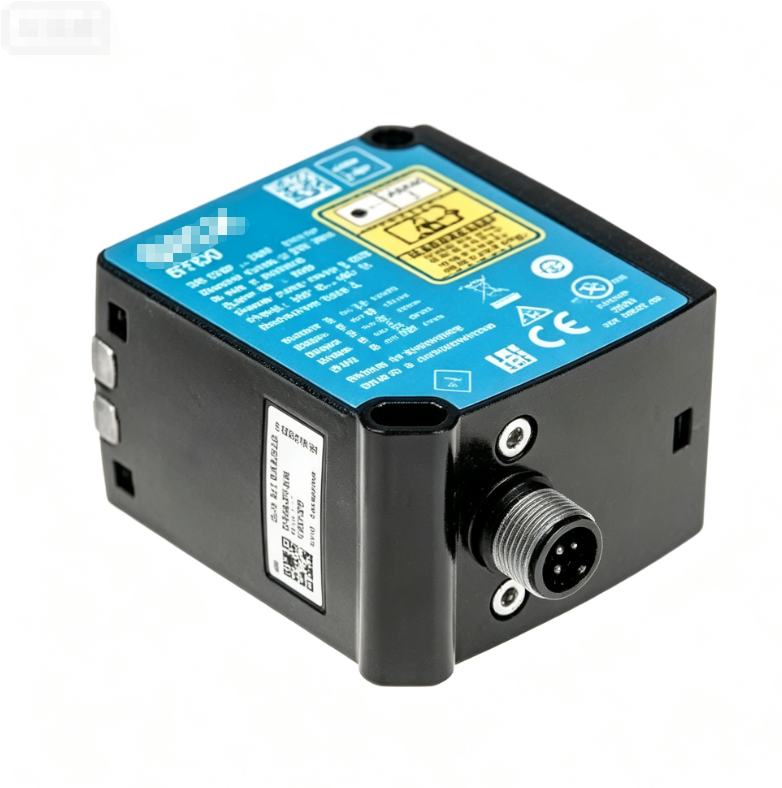

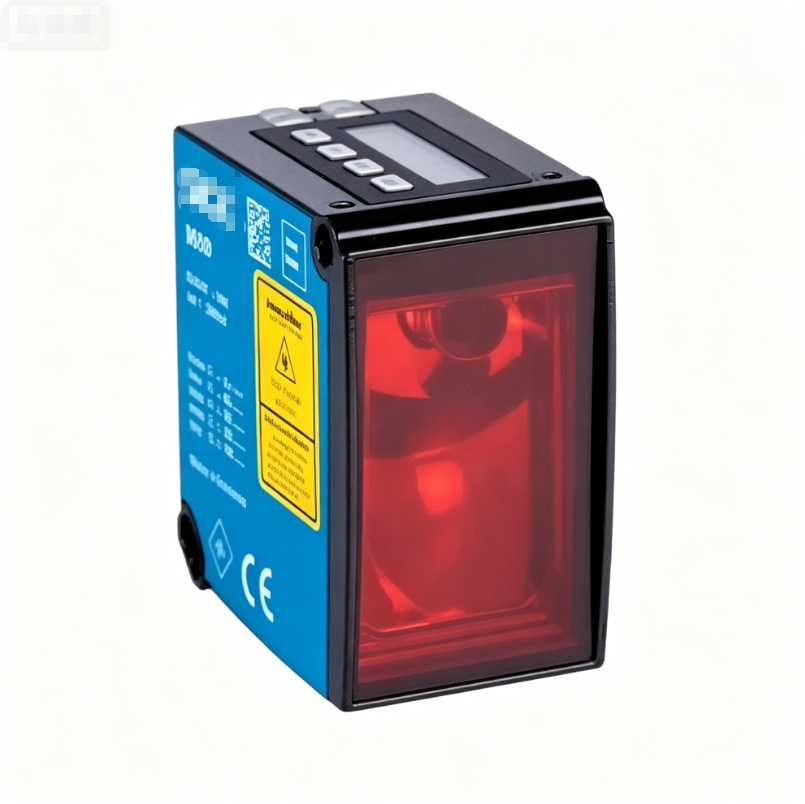

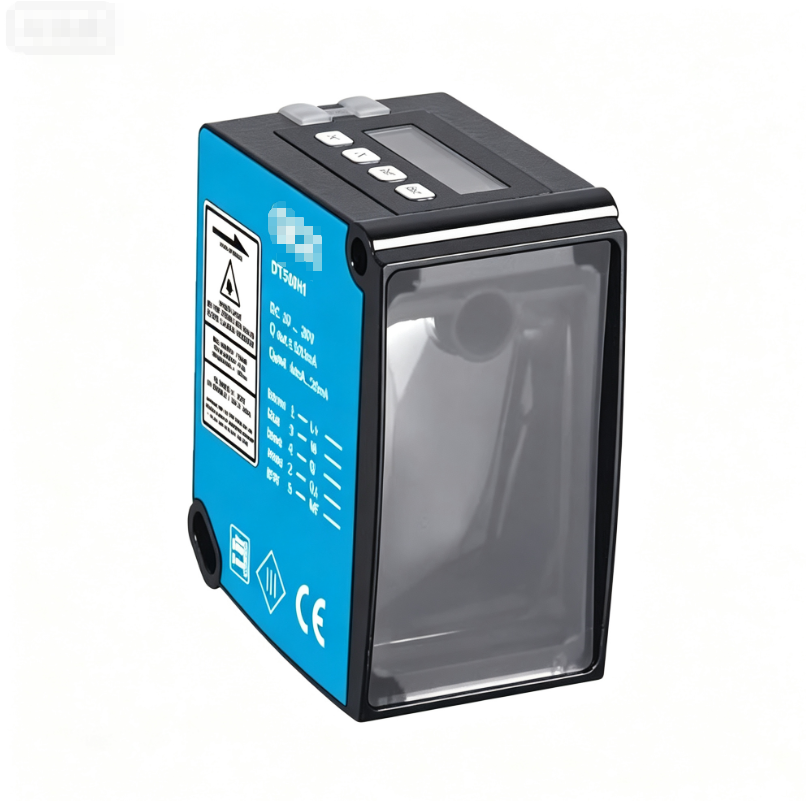

DT50-P1113 (Part No.1044369) is a compact laser distance sensor from SICK DT50 series. It applies time-of-flight laser measurement principle with Class 2 laser. Equipped with PNP switching output and 4-20mA analog output, supply voltage DC10~30V, IP65 protection, die-cast aluminum housing. It delivers accurate distance measurement and stable performance, widely used for position detection in industrial automation. Brand new original SICK sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | DT50-P1113 |
| Part No. | 1044369 |
| Product Type | Laser Distance Sensor |
| Series | DT50 / Dx50 |
| Principle | Laser time-of-flight distance measurement |
| Output Type | PNP + 4-20mA Analog |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Housing Material | Die-cast Aluminum |
| Protection Class | IP65 |
| Laser Class | Class 2 |
| Condition | New Original |
| Application | Position detection, Conveyor, Logistics automation, Material measurement |
| Weight | 0.32 KG |
| Gross Weight | 0.42 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
