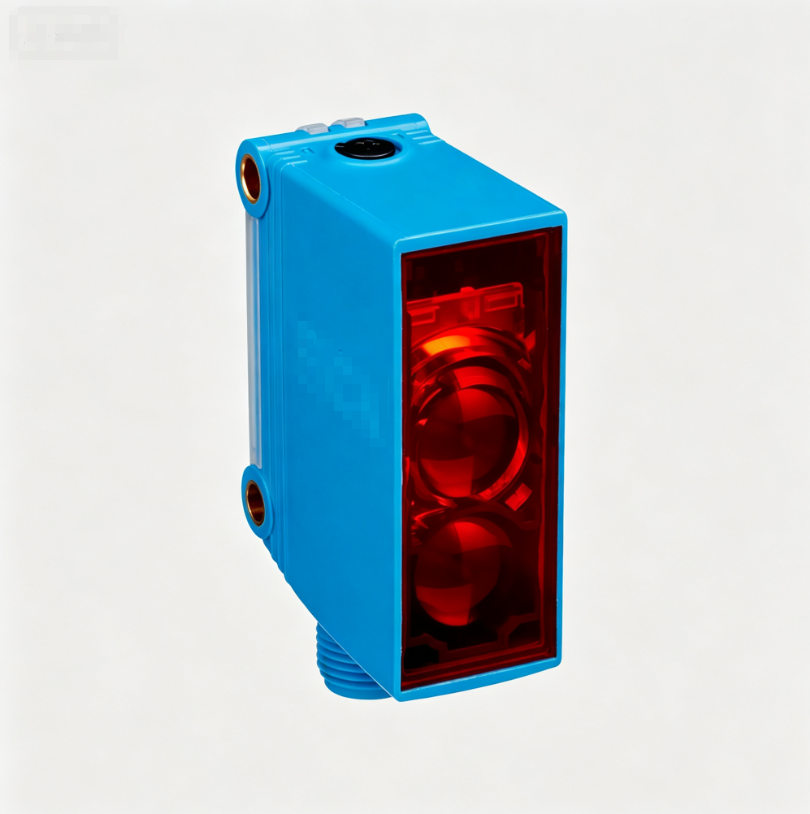

1069860 GL10-P4151
Product Overview
GL10-P4151 (Part No.1069860) is a retro-reflective photoelectric sensor from SICK GL10 series. It is equipped with PinPoint 625nm visible red LED light source and dual lens optical system. Its sensing distance ranges from 0.15 m to 12 m, and can reach 15 m when working together with PL80A reflector. It has PNP output with switchable Light-ON / Dark-ON function, no potentiometer required. The sensor uses VISTAL plastic housing, IP67 protection class, M12 4-pin male connector and is powered by DC10~30V. It delivers stable performance for detecting film-wrapped objects in industrial automation. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | GL10-P4151 |
| Part No. | 1069860 |
| Product Type | Photoelectric Sensor |
| Series | GL10 |
| Principle | Retro-reflective photoelectric sensor, dual lens optical system |
| Sensing Distance | 0.15 ~12 m, max 15m with PL80A reflector |
| Light Source | PinPoint LED, 625nm visible red light |
| Adjustment | No potentiometer |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Connector | M12 4-pin male connector |
| Protection Class | IP67 |
| Housing Material | VISTAL Plastic |
| Switching Frequency | 1000 Hz |
| Condition | New Original |
| Application | Film wrapped object detection, conveyor system, packaging machinery, logistics sorting |
| Net Weight | 0.052 KG |
| Gross Weight | 0.084 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 months |
