MFH-5/3G-D-3-C
Product Overview

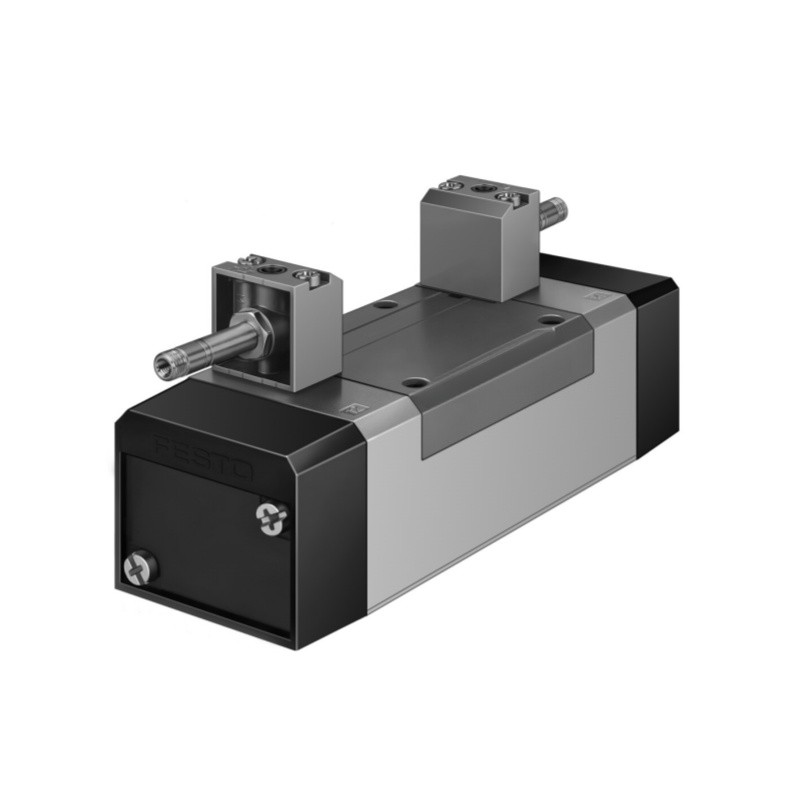

MFH-5/3G-D-3-C (Part No.151873) is Festo MFH series 5/3-way closed centre pneumatic solenoid valve, internal piloted piston gate valve design, installed on ISO5599-1 size3 sub-base with G1/2 air port. When both coils lose power, all ports are sealed to lock cylinder position. Nominal flow rate up to 4100 l/min, fast switching response. Solenoid coil needs to be ordered separately. Suitable for medium & large bore cylinder holding and direction control in automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MFH-5/3G-D-3-C |
| Part No. | 151873 |
| Product Type | Pneumatic 5/3-way Solenoid Valve, Closed Centre |
| Series | MFH |
| Valve Function | 5/3 way, closed centre |
| Pneumatic Connection | Sub-base size3, ISO5599-1, G1/2 |
| Nominal Diameter | 14.5 mm |
| Standard Nominal Flow | 4100 l/min |
| Operating Pressure | 3 ~ 10 bar |
| Piloting Type | Internal piloted |
| Reset Method | Mechanical spring return |
| Structure | Piston gate valve, soft seal |
| Protection Class | IP65 (with coil) |
| Switch-on Time | 36 ms |
| Switch-off Time | 77 ms |
| Mounting Position | Optional / Any position |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +60 ℃ |
| Manual Override | Non-detent push button (accessory for detent) |
| Material Housing | Aluminium alloy |
| Seal Material | NBR |
| CRC Corrosion Class | CRC2 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.490 kg |
| Gross Weight | 0.60 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Pneumatic cylinder control, automation machinery, handling & assembly equipment |
