6ES7332-5HD01-0AB0

Attribute Name	Value
Brand	Siemens
Model	6ES7332-5HD01-0AB0
Series	SIMATIC S7-300, SM332 Analog Output Module
Type	PLC Analog Output Module
I/O Spec	4AO, 16-bit resolution
Output Signal	Voltage: ±10V, 0~10V; Current: 0~20mA, 4~20mA
Conversion Time	0.5ms per channel
Isolation	Isolation between backplane and channels, no inter-channel isolation
Diagnosis	Wire break & short circuit diagnosis, configurable
Connector	20-pole front connector
Power Supply	DC24V
Mounting	DIN rail, S7-300 bac

INQUIRY

Product Details

Product Tags

Product Overview

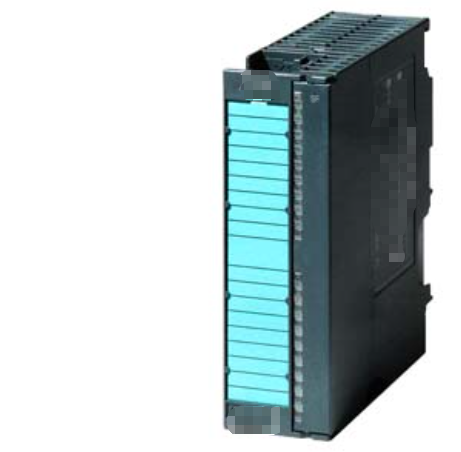

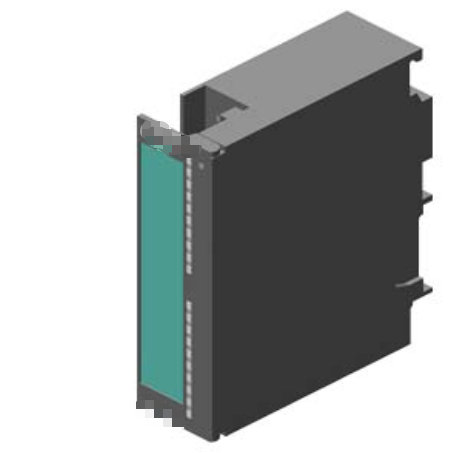

Siemens 6ES7332-5HD01-0AB0 is SM332 analog output expansion module for SIMATIC S7-300 PLC system. It has 4 analog output channels with 16-bit resolution. Supports multiple signal types: ±10V, 0~10V voltage, 0~20mA and 4~20mA current signals. Conversion time 0.5ms per channel. Supports wire break and short-circuit diagnosis. Isolation between backplane bus and channels. 20-pole front connector required, DC24V power supply, DIN rail mounted on S7-300 rack. This model is discontinued and supplied as spare part for maintenance replacement.

Attribute Name	Value
Brand	Siemens
Model	6ES7332-5HD01-0AB0
Series	SIMATIC S7-300, SM332 Analog Output Module
Type	PLC Analog Output Module
I/O Spec	4AO, 16-bit resolution
Output Signal	Voltage: ±10V, 0~10V; Current: 0~20mA, 4~20mA
Conversion Time	0.5ms per channel
Isolation	Isolation between backplane and channels, no inter-channel isolation
Diagnosis	Wire break & short circuit diagnosis, configurable
Connector	20-pole front connector
Power Supply	DC24V
Mounting	DIN rail, S7-300 backplane
Origin	Germany
Warranty	1 year
Condition	New Original, discontinued spare part
Net Weight	0.24kg
Gross Weight	0.42kg
