2095888 YF8U14-020VA3XLEAX

属性名称	属性值
Brand	SICK
Model	YF8U14-020VA3XLEAX
Order No.	2095888
Product Type	Sensor Actuator Cable
Connector Type	M8 Female, Straight, A-coded
Pin	4 Pin
Cable Length	2 m
Core	4 Core
Conductor Cross Section	0.25 mm²
Cable Jacket Material	PVC
Connector Material	TPU
Color	Gray Cable, Black Connector
Locking Nut	Zinc die-cast, nickel-plated
Seal Material	FKM
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.4 Nm
Cable D

INQUIRY

Product Details

Product Tags

Product Overview

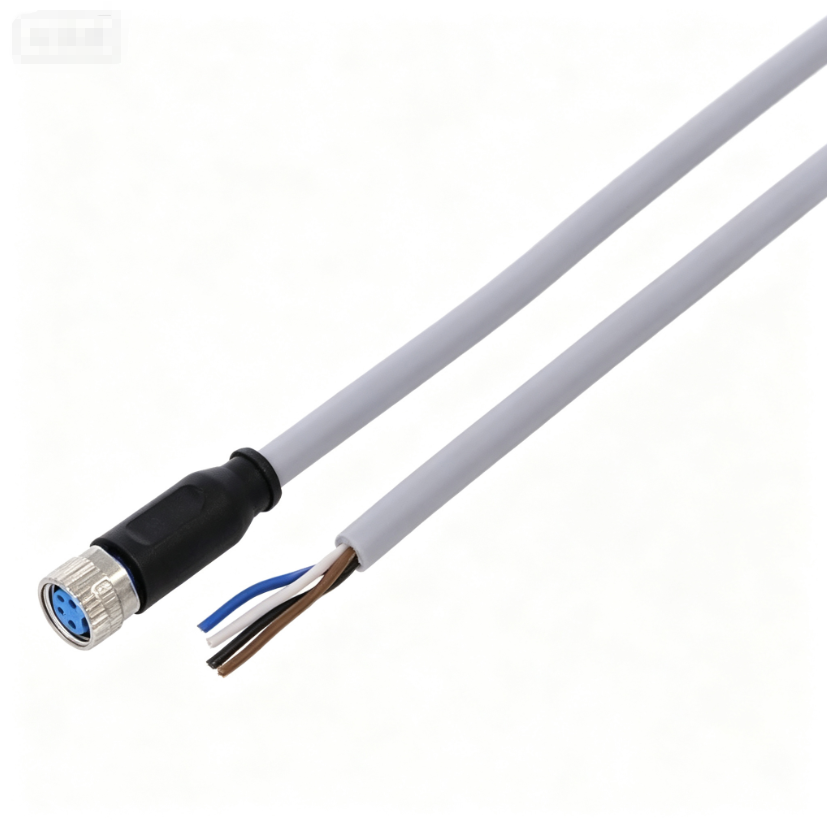

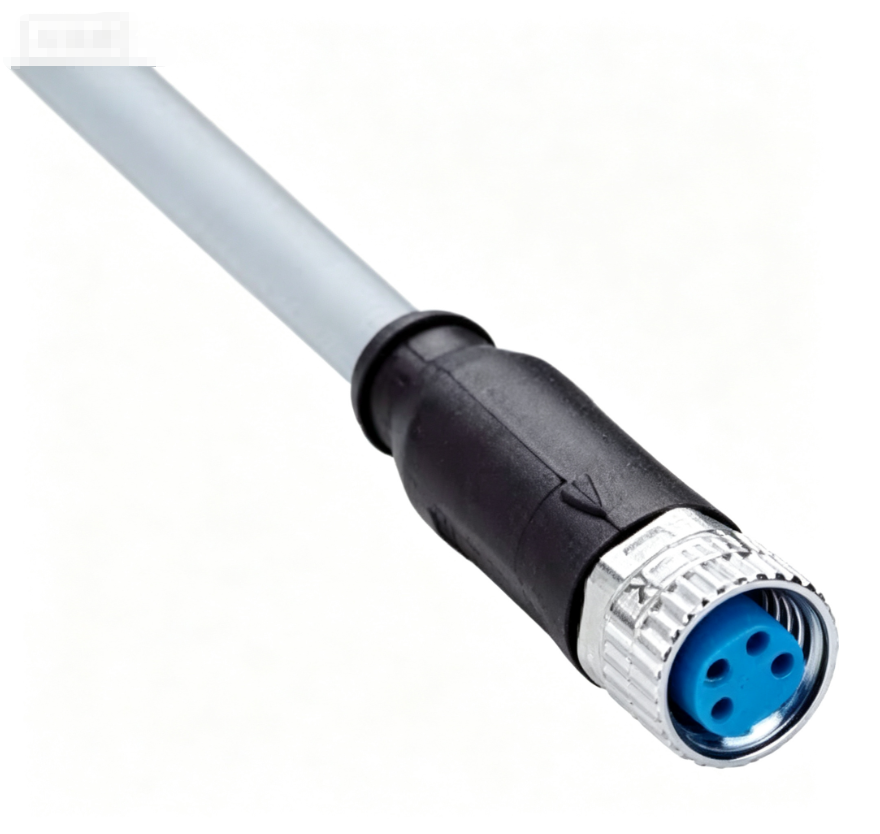

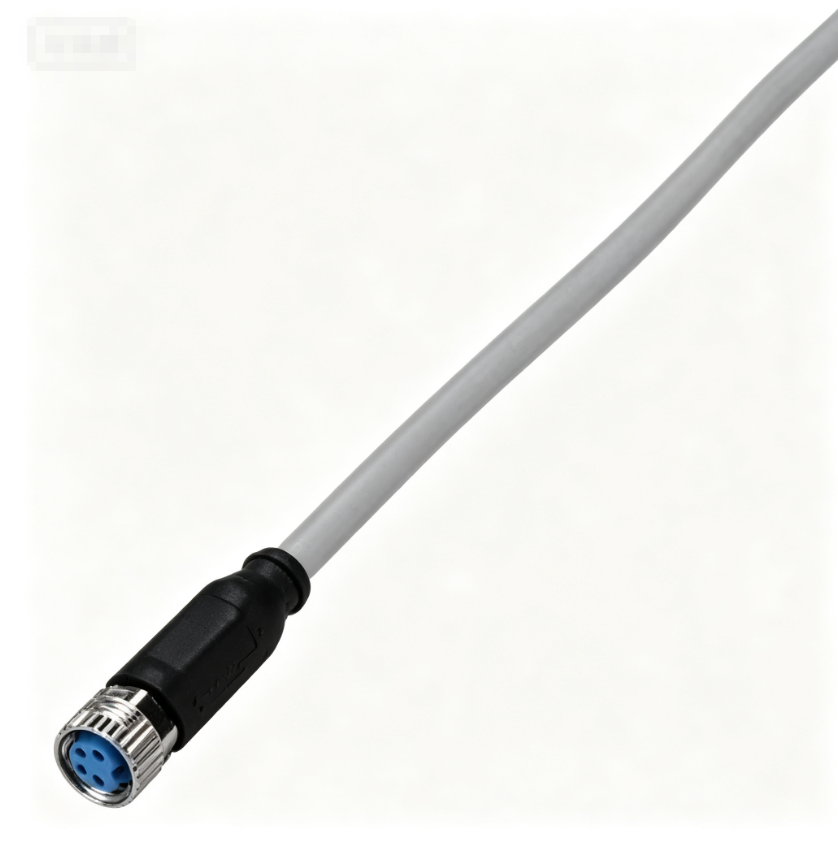

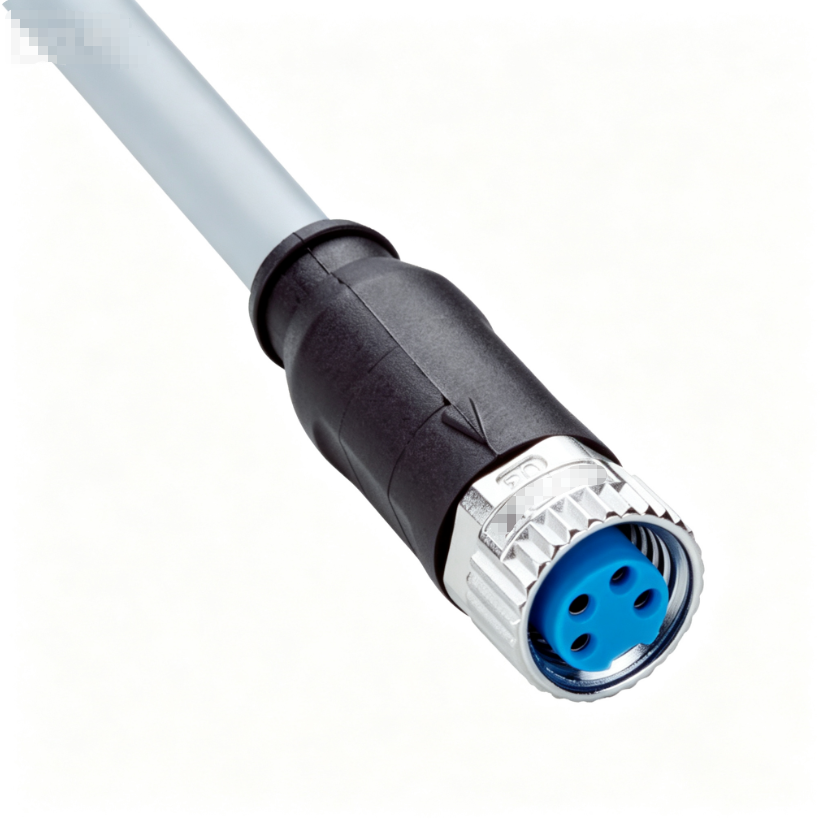

YF8U14-020VA3XLEAX (Part No.2095888) is SICK M8 sensor actuator cable. It adopts 4-pin A-coded straight female connector, cable length 2 meters, PVC cable jacket and unshielded structure. With IP67 protection grade, it can transmit stable signal for sensors and actuators in factory automation equipment.

属性名称	属性值
Brand	SICK
Model	YF8U14-020VA3XLEAX
Order No.	2095888
Product Type	Sensor Actuator Cable
Connector Type	M8 Female, Straight, A-coded
Pin	4 Pin
Cable Length	2 m
Core	4 Core
Conductor Cross Section	0.25 mm²
Cable Jacket Material	PVC
Connector Material	TPU
Color	Gray Cable, Black Connector
Locking Nut	Zinc die-cast, nickel-plated
Seal Material	FKM
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.4 Nm
Cable Diameter	4.8 mm
Operating Temperature	Fixed: -30℃~+80℃, Flexible: -5℃~+80℃, Connector: -25℃~+85℃
Certification	UL
Condition	New Original
MOQ	1 Piece
Gross Weight	0.09 KG
Net Weight	0.07 KG
Place of Origin	Germany
