U-1/4

U-1/4
属性名称	属性值
Brand	Festo
Model	U-1/4
Part Number	2316
Product Type	Pneumatic Silencer / Exhaust Muffler
Series	U Series
Pneumatic Port	G1/4 Male Thread
Flow Rate to Atmosphere	3300 l/min
Operating Pressure	0 ~ 10 bar
Sound Pressure Level	76 dB(A)
Medium	Compressed air ISO 8573-1:2010 [7:-:-], lubricated air allowed
Ambient Temperature	-10 ~ +70 ℃
Medium Temperature	-10 ~ +70 ℃
Mounting Position	Any mounting position
Silencer Insert Material	PE Polyethylene
Weight	7.7 g
CRC Class	CRC

Product Details

Product Tags

Product Overview

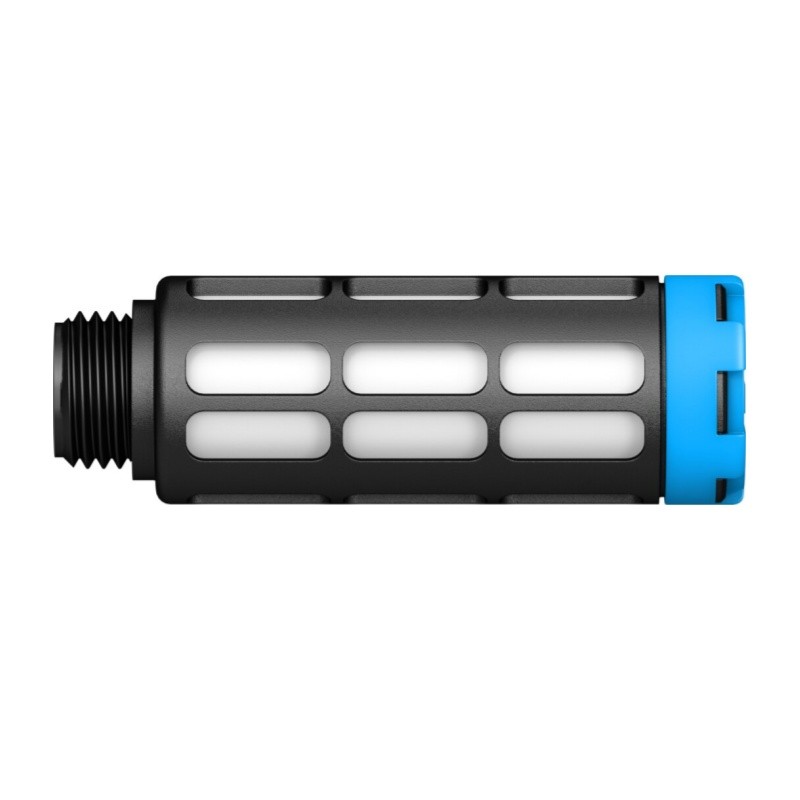

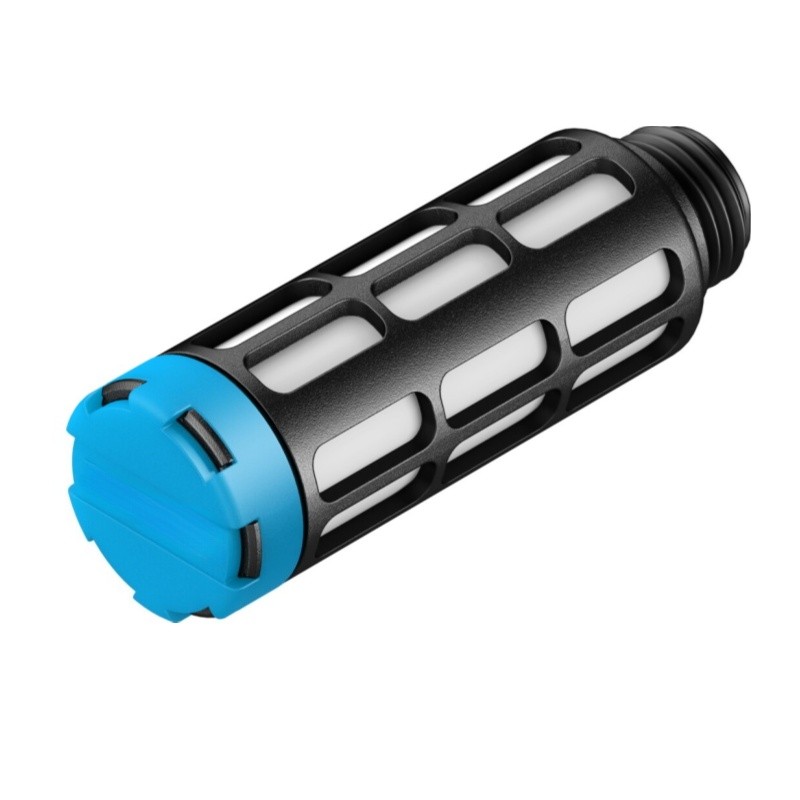

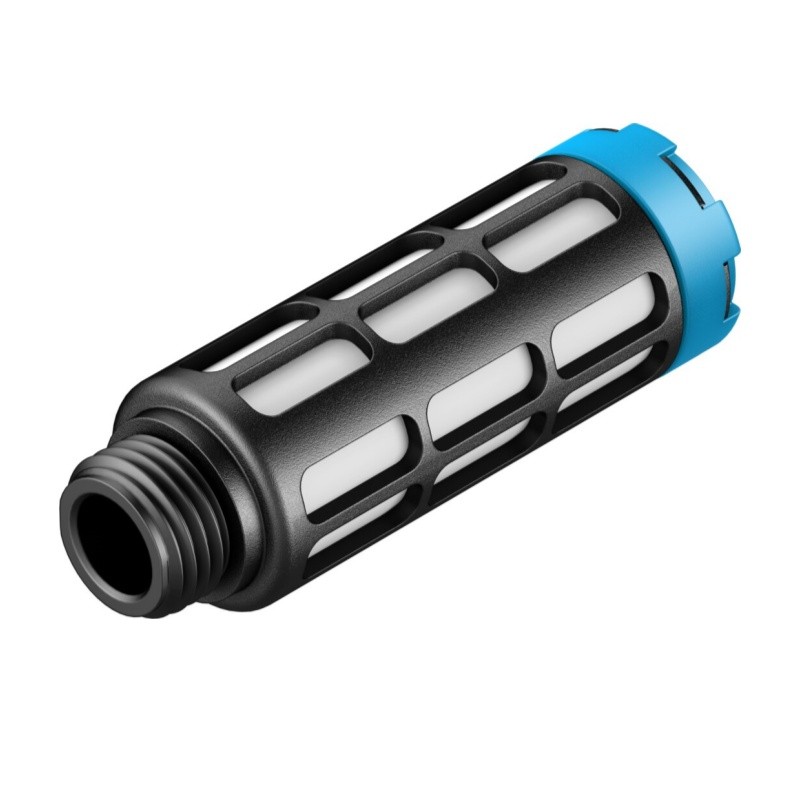

Festo U-1/4 (Part No.2316) is U-series compact pneumatic exhaust silencer. It is installed on exhaust ports of solenoid valves and pneumatic components to reduce exhaust noise and prevent dust contamination inside pneumatic valves, small lightweight design for easy installation.

属性名称属性值
BrandFesto
ModelU-1/4
Part Number2316
Product TypePneumatic Silencer / Exhaust Muffler
SeriesU Series
Pneumatic PortG1/4 Male Thread
Flow Rate to Atmosphere3300 l/min
Operating Pressure0 ~ 10 bar
Sound Pressure Level76 dB(A)
MediumCompressed air ISO 8573-1:2010 [7:-:-], lubricated air allowed
Ambient Temperature-10 ~ +70 ℃
Medium Temperature-10 ~ +70 ℃
Mounting PositionAny mounting position
Silencer Insert MaterialPE Polyethylene
Weight7.7 g
CRC ClassCRC 1
LABS(PWIS)VDMA24364-B1/B2-L
RoHSCompliant
Original/NewNew Original
