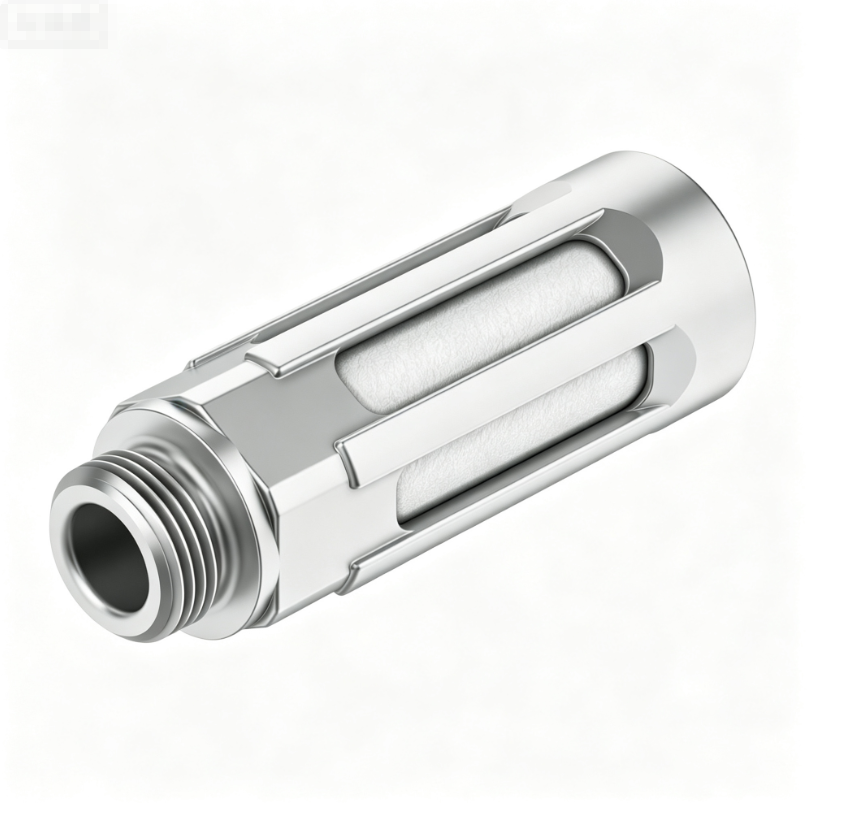

U-1/4-B 6842
Product Overview

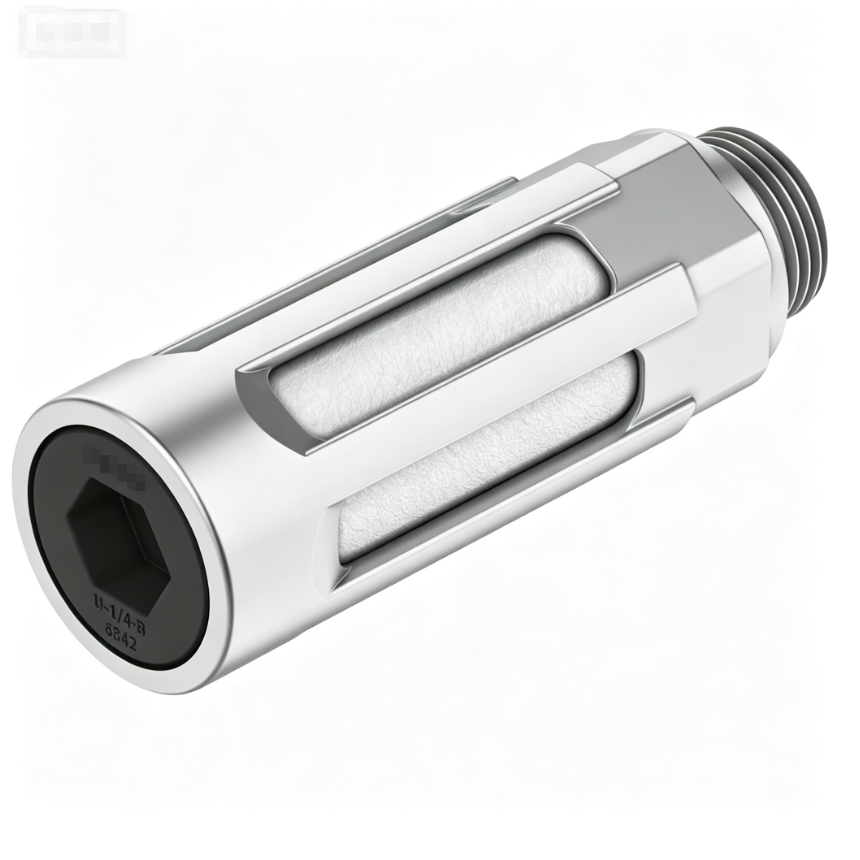

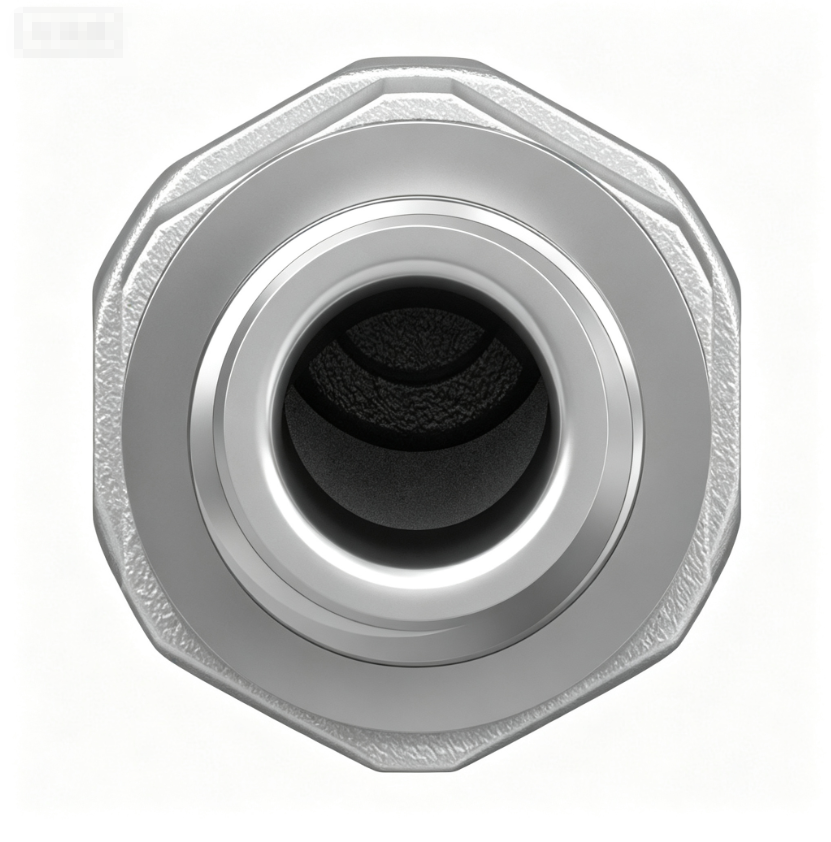

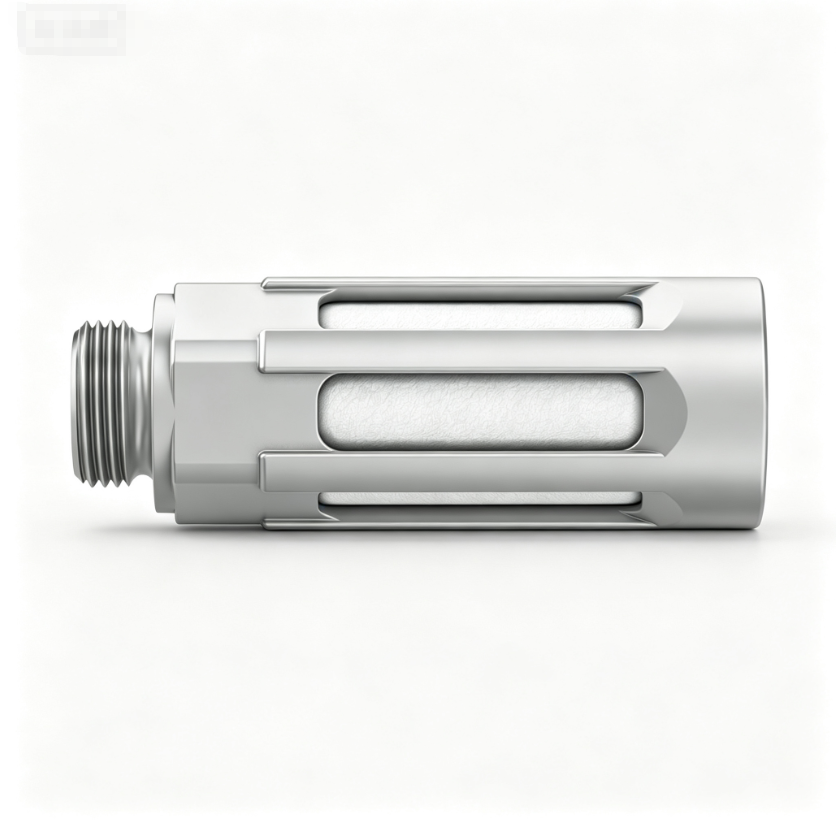

U-1/4-B (Part No.6842) is Festo U series pneumatic exhaust silencer. It adopts G1/4" external male thread connection. Aluminum housing and PE sound absorption insert. Working pressure 0~10 bar, ambient temperature -10~70℃. It can reduce exhaust noise up to 80 dB(A) and prevent contamination entering pneumatic components. Supports any mounting position, reliable performance, RoHS compliant. Widely used for noise reduction at exhaust ports of pneumatic valves and cylinders in industrial automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | U-1/4-B |
| MPN | 6842 |
| Product Type | Pneumatic Silencer |
| Series | U Series |
| Connection | G1/4 external male thread |
| Flow Rate to Atmosphere | 2440 l/min |
| Sound Pressure Level | 80 dB(A) |
| Working Medium | Compressed air (ISO 8573-1:2010 [7:-:-]) |
| Working Pressure | 0 ~ 10 bar |
| Ambient Temperature | -10 ~ 70 ℃ |
| Housing Material | Aluminum |
| Silencer Insert Material | PE |
| Threaded Plug Material | Aluminum |
| Weight | 17.00 g |
| Feature | Reduce exhaust noise, prevent contamination, any mounting position |
| Corrosion Resistance Class | CRC 1 |
| Compliance | RoHS compliant, PWIS conformity VDMA24364-B1/B2-L |
| Application | Pneumatic Automation System |
