ADN-32-40-I-P-A
Product Overview

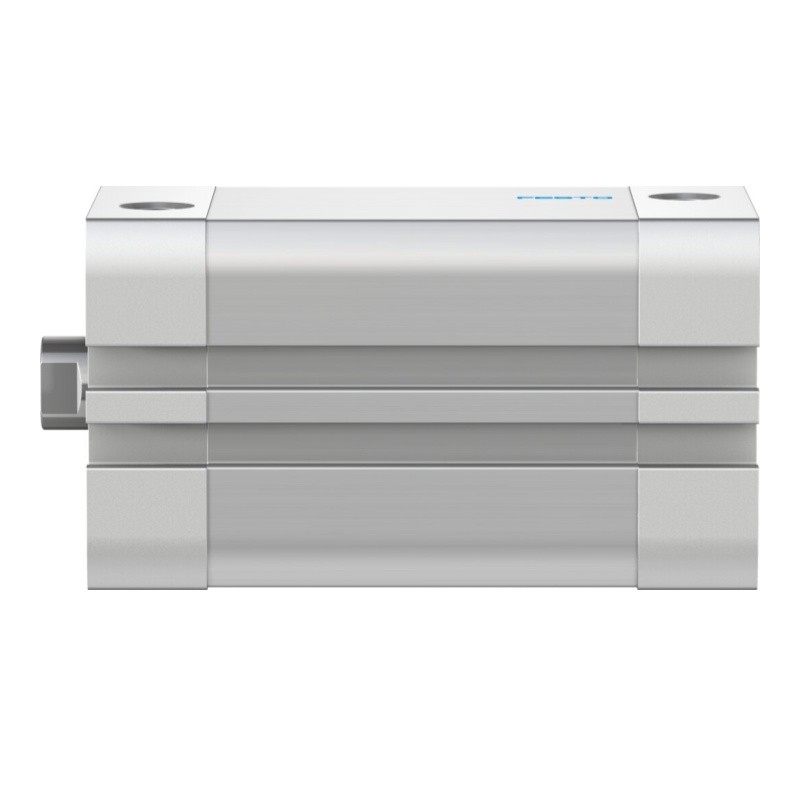

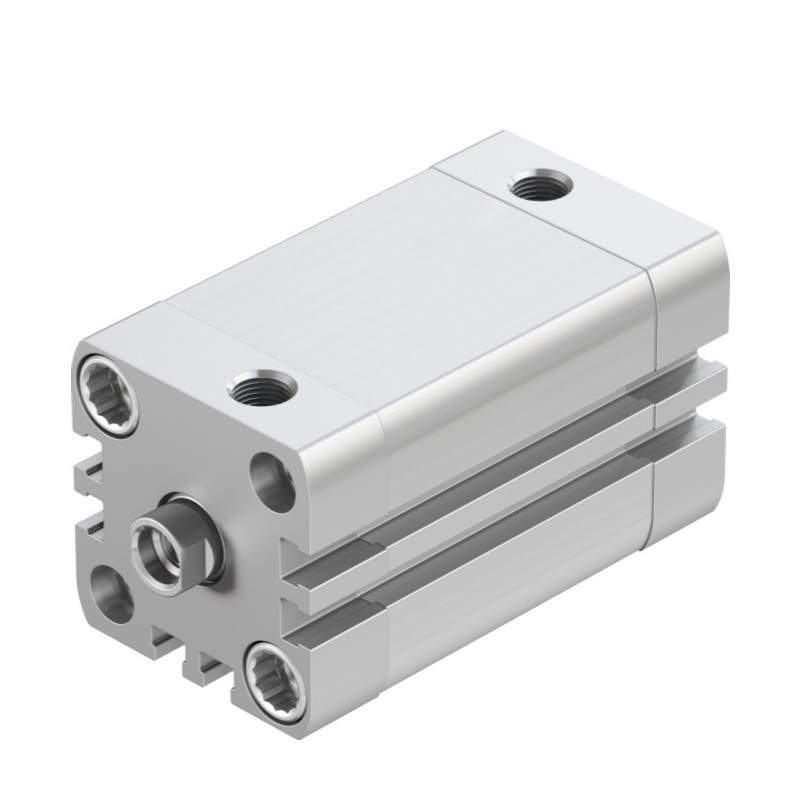

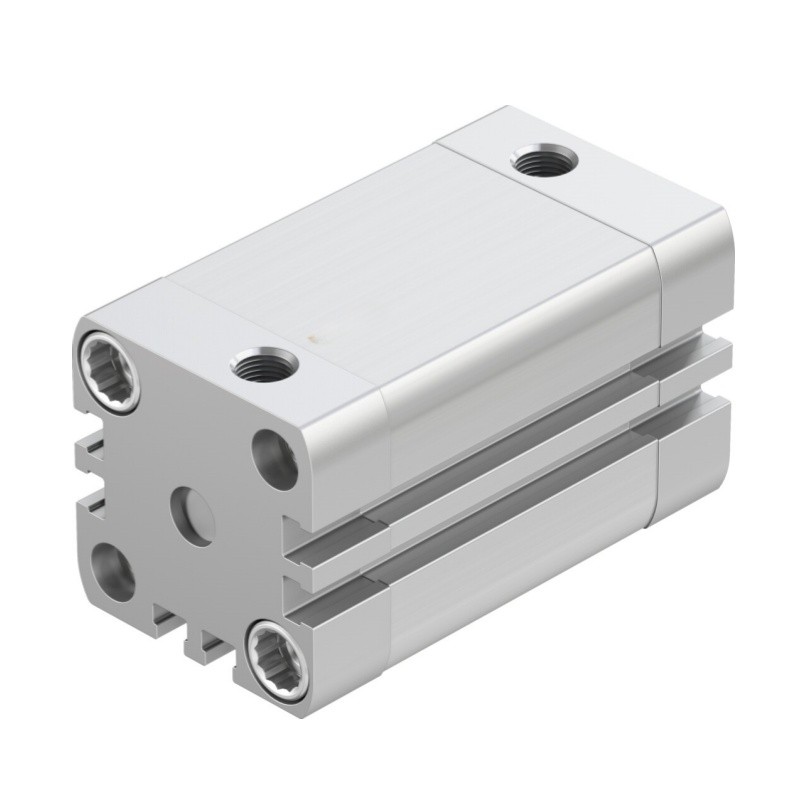

Festo ADN-32-40-I-P-A (Part No.536284) is ADN series double-acting compact cylinder conforming to ISO21287 standard. It features ultra-short compact body, internal piston rod thread and elastic cushion rings on both ends. Supports proximity switch installation for position feedback, widely used for linear pushing, clamping and pick & place actions in limited installation space.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | ADN-32-40-I-P-A |
| Part Number | 536284 |
| Product Type | Compact Cylinder / Pneumatic Air Cylinder |
| Series | ADN Series |
| Standard | ISO 21287 |
| Operation Mode | Double-acting |
| Piston Bore | 32 mm |
| Stroke | 40 mm |
| Piston Rod Thread | Internal thread |
| Pneumatic Connection | G1/8 |
| Cushioning | Elastic cushion rings at both ends |
| Theoretical Force at 6bar Advance | 483 N |
| Theoretical Force at 6bar Retract | 415 N |
| Operating Pressure | 0.6 ~ 10 bar |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air permitted |
| Ambient Temperature | -20 ~ +80 ℃ |
| Mounting Position | Any mounting orientation |
| Position Detection | For proximity sensor |
| Impact Energy End Position | 0.4 J |
| Moving Mass | 87 g |
| Weight | 357 g |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Cleanroom Class | ISO14644-14 Class5 |
| Certification | CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
