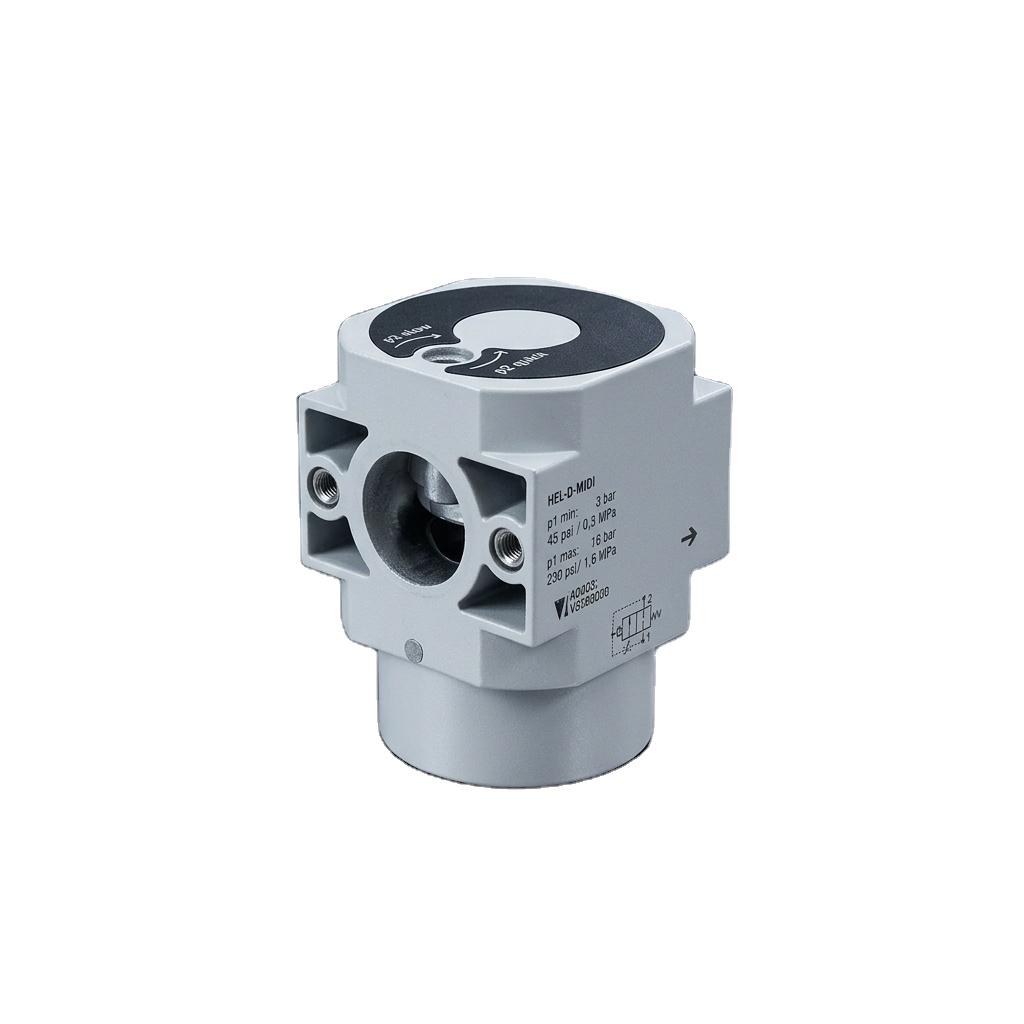

HEL-D-MIDI
Product Overview
Festo HEL-D-MIDI (Part No.170691) belongs to HEL D series modular soft-start valve, MIDI size for air service unit combination. It slowly charges pressure to pneumatic circuit, the main valve opens at around 50% inlet pressure, pressure rising speed can be adjusted by built-in flow restrictor. Effectively prevent sudden jump of cylinders or actuators when system starts up, commonly combined with HE / HEE cut-off valve in compressed air preparation assembly.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | HEL-D-MIDI |
| Part Number | 170691 |
| Product Type | Soft-start Valve / Pneumatic Slow Pressurisation Valve |
| Series | HEL D Series |
| Size | MIDI |
| Grid Dimension | 55 mm |
| Operating Pressure | 0 ~ 16 bar |
| Switching Pressure | Approx. 50% of inlet pressure |
| Adjustment Mode | Adjustable pressure build-up time via flow restrictor |
| Function | Slow pressurisation & controlled exhausting for pneumatic circuit |
| Compatible Unit | Matched with HE / HEE on-off valve, air service assembly |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas, lubricated air permitted |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium Temperature | -10 ~ +60 ℃ |
| Mounting | Module stacked assembly, any mounting position |
| Flow Direction | Non-reversible |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR |
| Weight | 270 g |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Certification | CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
