CPV10-M1H-5JS-M7
Product Overview

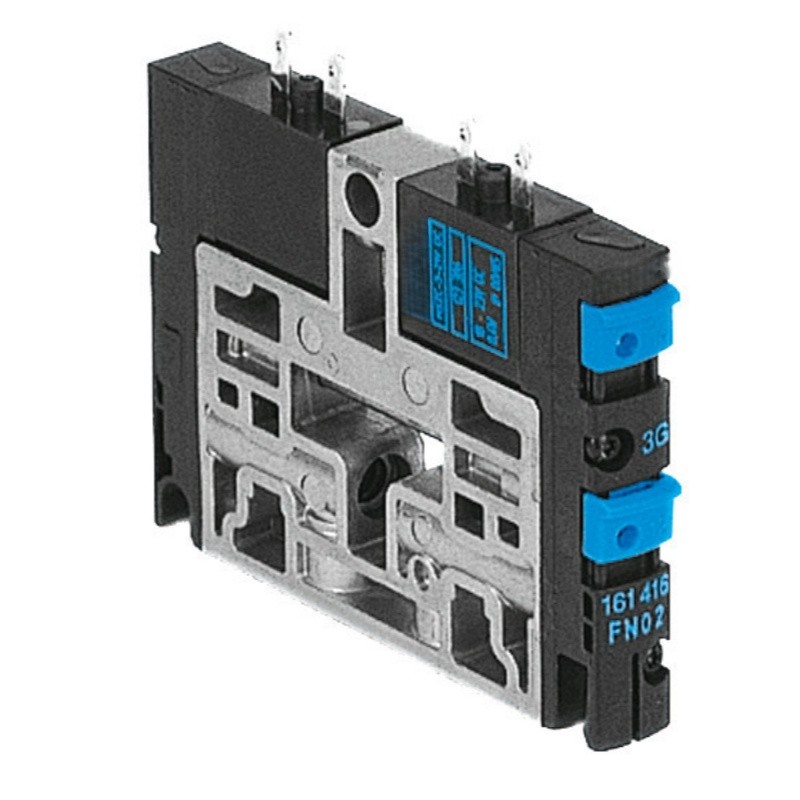

Festo CPV10-M1H-5JS-M7 (Part No.161415) belongs to CPV10 compact valve terminal series. It is a 5/2-way bistable double-solenoid piston slide valve with soft seal and positive overlap, supports internal or external pilot air supply. 10mm slim body with M7 working thread, installed on CPV manifold base to build compact valve terminal for automation pneumatic control.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CPV10-M1H-5JS-M7 |
| Part Number | 161415 |
| Product Type | Solenoid Valve / Piston Slide Valve |
| Series | CPV10 Series |
| Valve Function | 5/2-way, bistable (double solenoid) |
| Valve Width | 10 mm |
| Nominal Size | 4 mm |
| Rated Flow | 400 l/min |
| Operating Voltage | 24V DC |
| Coil Power | 0.46 W |
| Operating Pressure | -0.9 ~ 10 bar |
| Pilot Pressure | 3 ~ 8 bar |
| Control Type | Pilot operated, internal / external pilot air optional |
| Pneumatic Working Port | M7 thread |
| Sealing Type | Soft seal, positive overlap |
| Manual Override | Detenting & Non-detenting |
| Exhaust Function | Non-throttleable exhaust |
| Flow Direction | Non-reversible |
| Protection Class | IP65 |
| Duty Cycle | 100% with holding current reduction |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air permitted |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium Temperature | -5 ~ +50 ℃ |
| Mounting | Valve terminal base mount, any mounting position |
| Housing Material | Plastic / Die-cast aluminium |
| Seal Material | NBR |
| Weight | 70 g |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Certification | CE, UKCA, cULus Recognized |
| RoHS | Compliant |
| Original/New | New Original |
