HE-2-QS-6
Product Overview

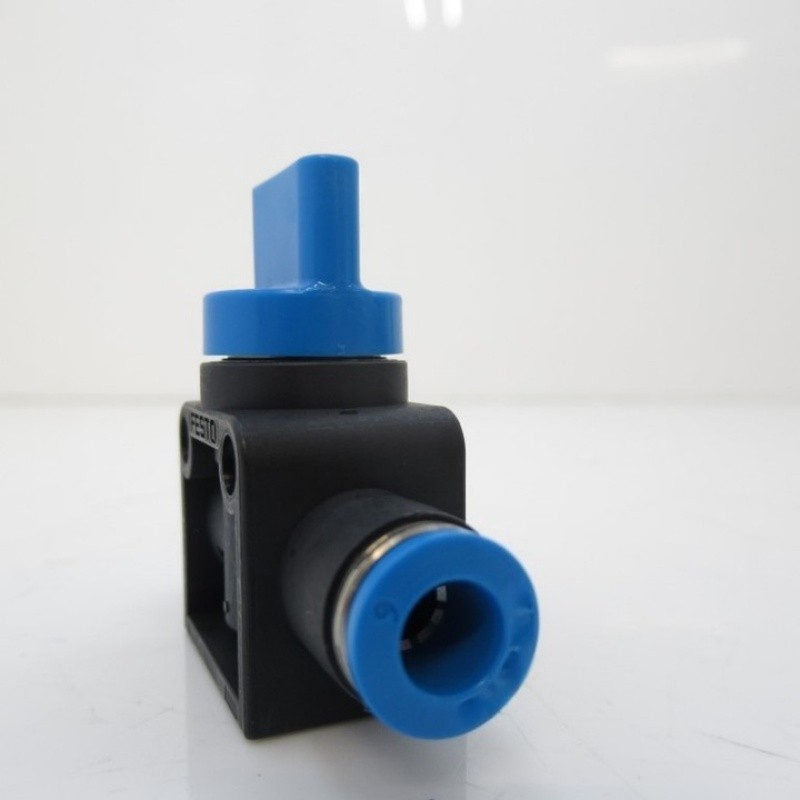

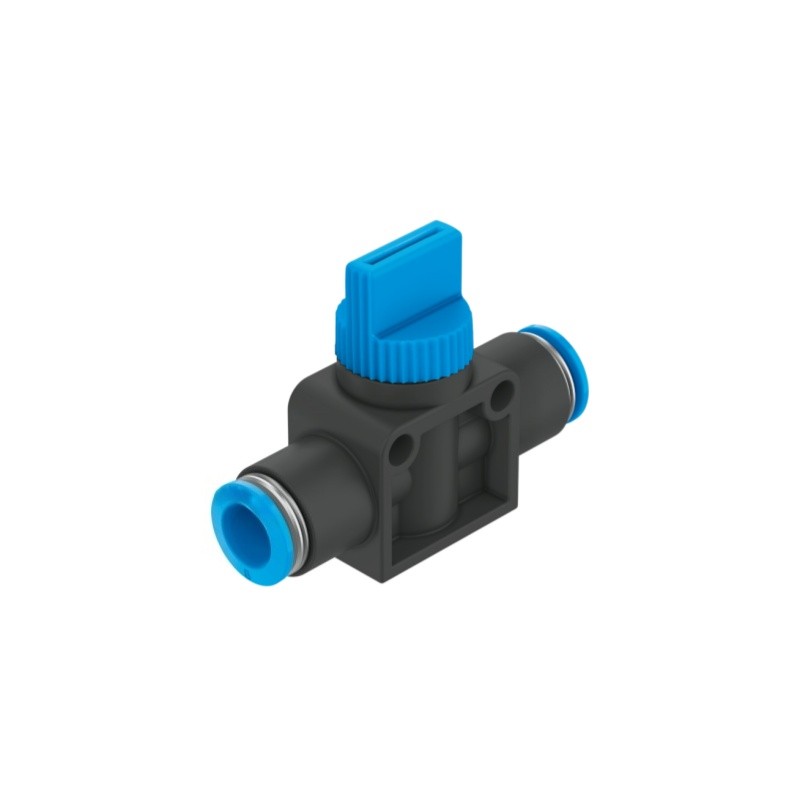

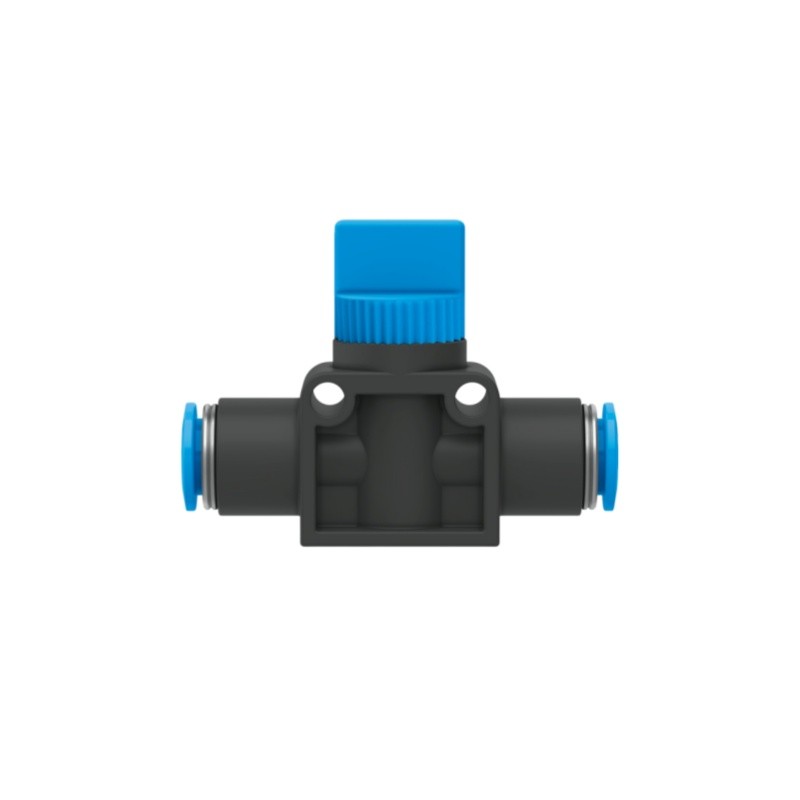

HE-2-QS-6 (Part No.153467) is Festo HE series 2/2-way bistable manual shut-off valve. Both ports adopt QS-6 push-in connectors for 6mm OD pneumatic tube. Reinforced PBT housing and NBR soft seal, piston gate valve structure. Working pressure -0.95~10 bar, ambient temperature 0~60℃. Manual operation with reversible air flow, supports inline installation. Compact structure, reliable sealing, RoHS compliant. Widely used for manual on-off control in compressed air pipelines of industrial automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | HE-2-QS-6 |
| MPN | 153467 |
| Product Type | Pneumatic Manual Shut-off Valve |
| Series | HE Series |
| Valve Function | 2/2-way bistable manual valve |
| Tube Size | Both ports QS-6 for 6mm OD pneumatic tube |
| Nominal Diameter | 3 mm |
| Nominal Flow Rate | 256.5 l/min |
| Working Medium | Compressed air (ISO 8573-1:2010 [7:-:-]) |
| Working Pressure | -0.95 ~ 10 bar |
| Ambient Temperature | 0 ~ 60 ℃ |
| Housing Material | Reinforced PBT |
| Seal Material | NBR |
| Structure | Piston gate valve, soft seal |
| Weight | 23.00 g |
| Feature | Manual operation, reversible flow, inline installation |
| Corrosion Resistance Class | CRC 2 |
| Compliance | RoHS compliant, PWIS conformity |
| Application | Pneumatic Automation System |
