186351 QSL-G1/4-12
Product Overview

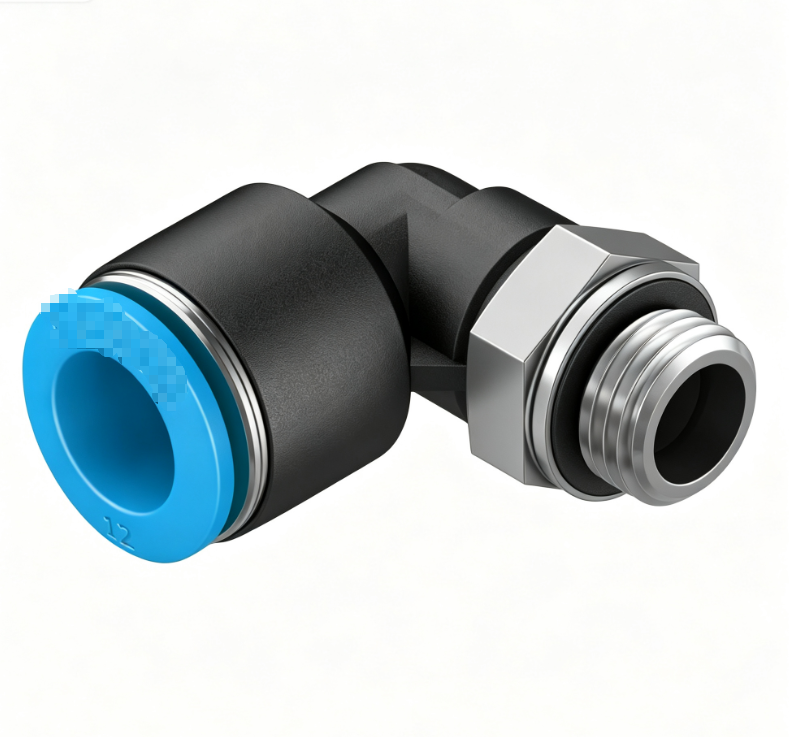

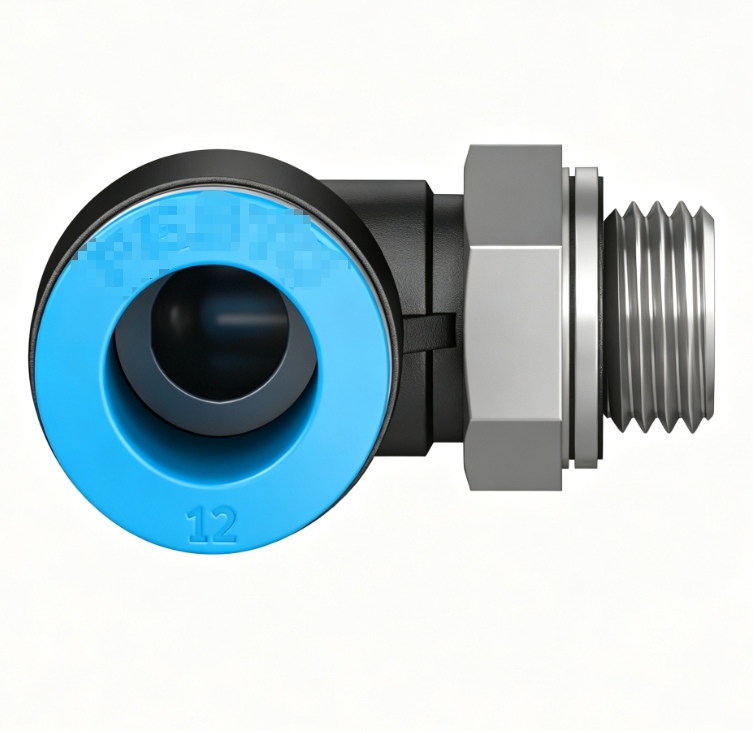

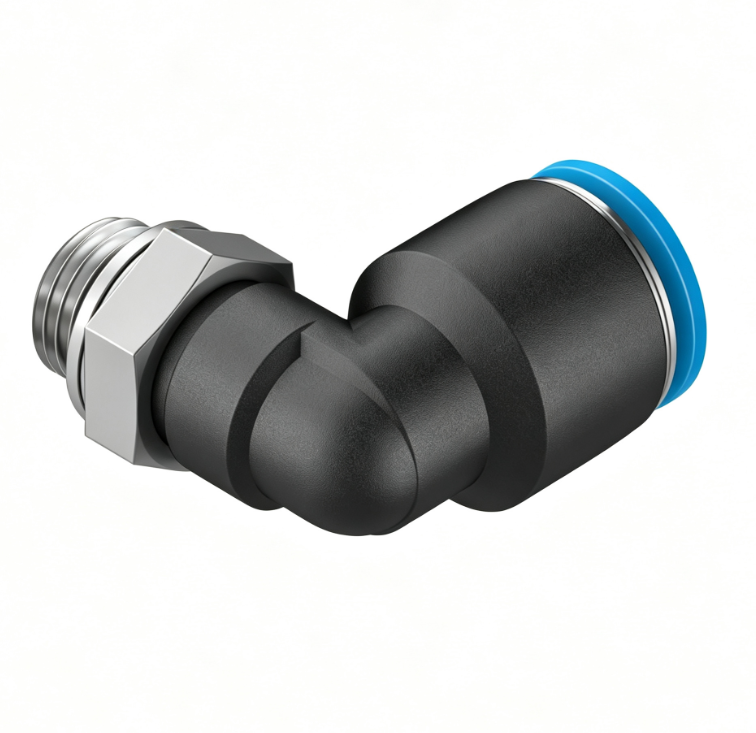

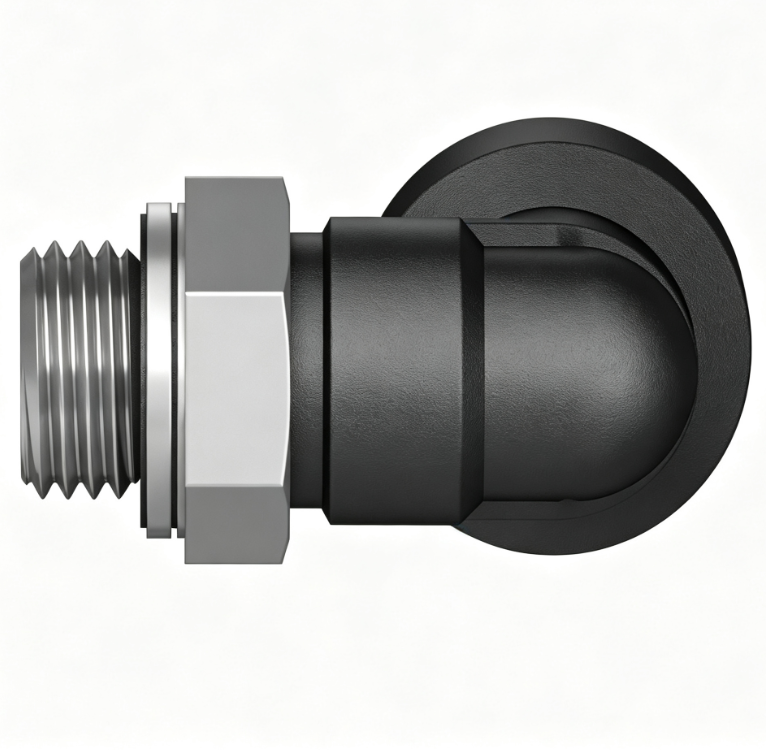

QSL-G1/4-12 (Part No.186351) is Festo QSL series 90° elbow push-in pneumatic fitting. It comes with G1/4 male thread and matches OD12mm pneumatic tubing. Constructed with nickel-plated brass body, POM release ring and NBR seal. The L-shaped push-in design enables fast tube mounting and removal without extra tools, delivering stable leak-tight connection for compressed air and vacuum pipelines. Working pressure -0.95~10 bar, ambient temperature -20~80℃. RoHS compliant. Widely applied for angle transition connection in industrial automation pneumatic systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QSL-G1/4-12 |
| MPN | 186351 |
| Product Type | Push-in Pneumatic Fitting, 90° Elbow Quick Connector |
| Series | QSL Series |
| Thread Specification | G1/4 male thread |
| Tube Size | OD12mm plastic pneumatic tube |
| Material | Body: Nickel-plated brass; Release ring: POM; Seal: NBR |
| Working Medium | Compressed air, vacuum |
| Working Pressure | -0.95 ~ 10 bar |
| Ambient Temperature | -20 ~ 80 ℃ |
| Feature | 90° elbow push-in fitting, tool-free tube mounting, reliable leak tightness, compact structure, corrosion-resistant nickel-plated brass body |
| Compliance | RoHS compliant |
| Application | Pneumatic pipeline turn connection, connect OD12mm PU tube with threaded port, automation compressed air & vacuum circuit |
