152703 PAN-16X2-SI
Product Overview

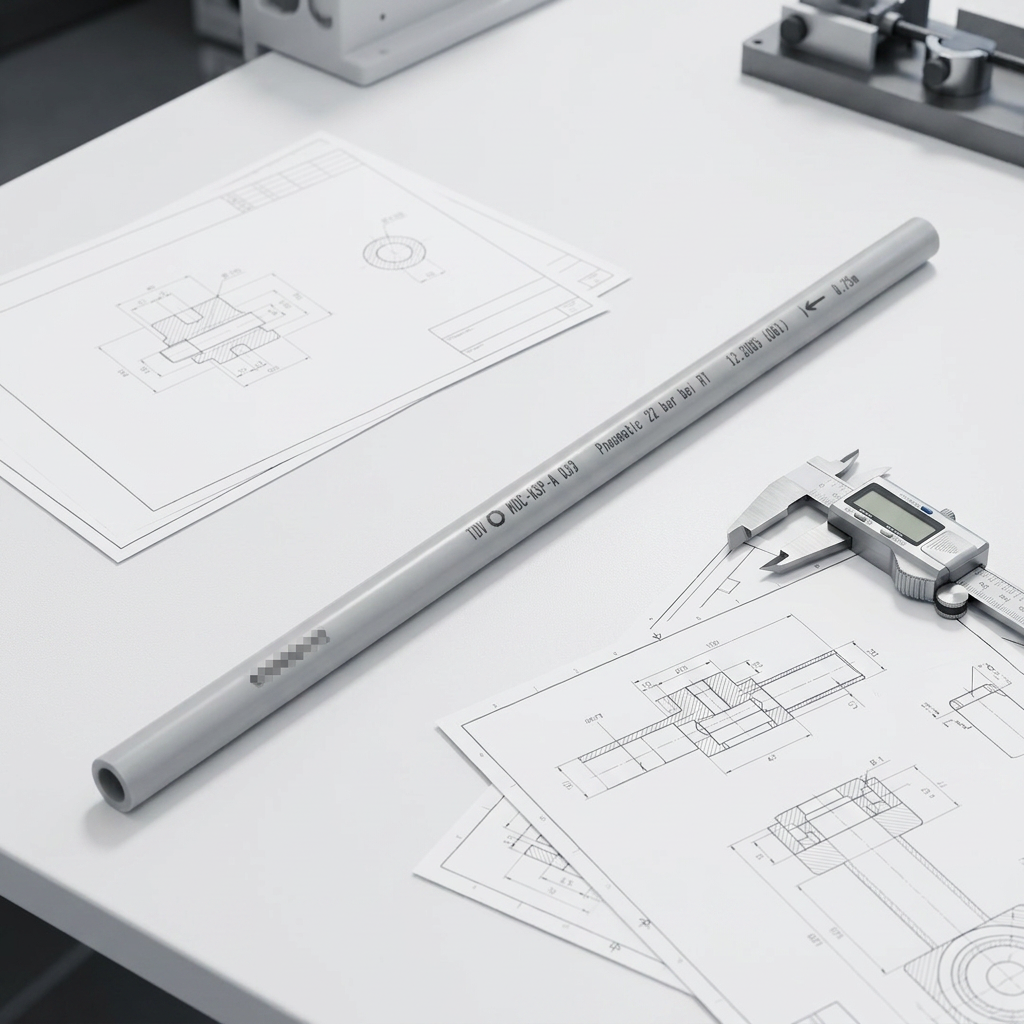

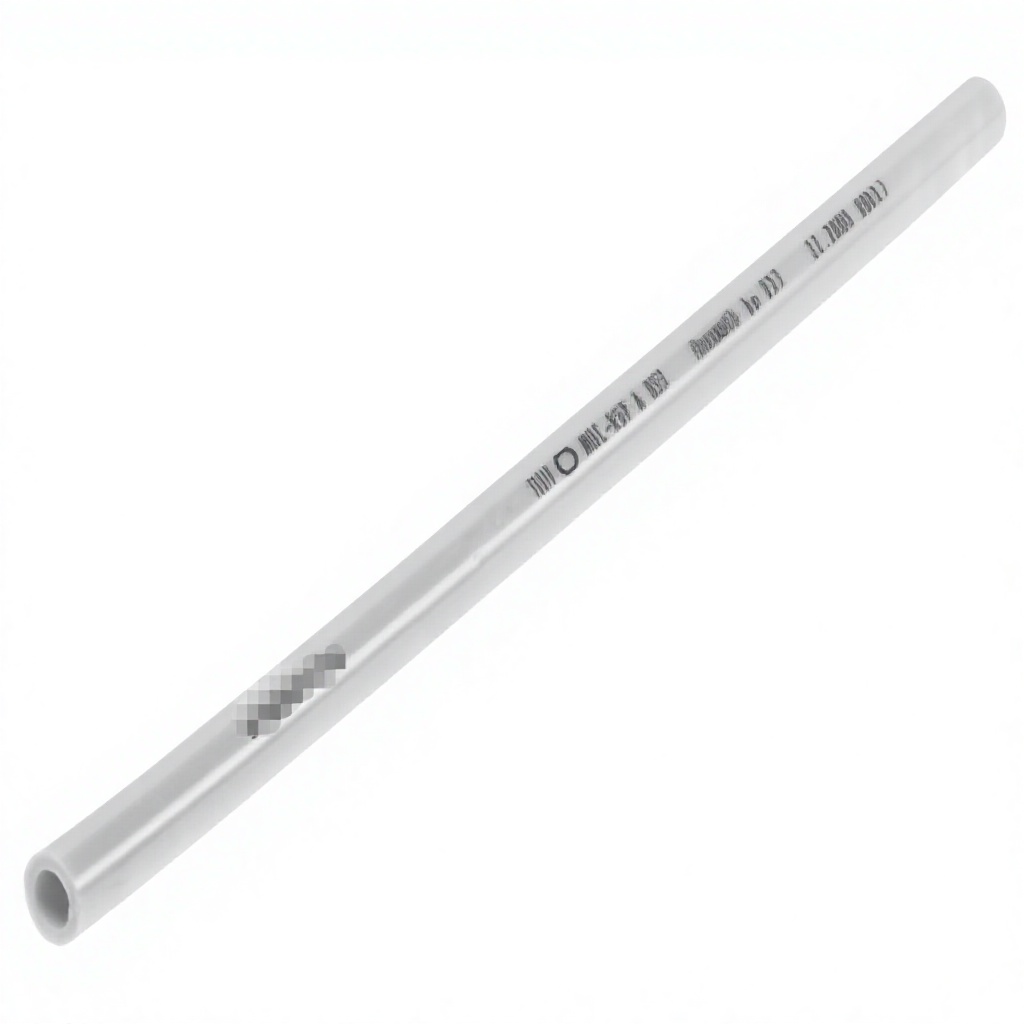

PAN-16X2-SI (Part No.152703) is Festo PAN series polyamide pneumatic plastic tubing. Size OD 16mm, wall thickness 2mm, inner diameter 12mm, silver color. Made of PA polyamide material with high mechanical strength, good rigidity, excellent chemical resistance and anti-ageing performance. Working pressure -0.95~15 bar at 20℃, ambient temperature -40~100℃. RoHS & PWIS compliant. Widely used for compressed air transmission in industrial automation pneumatic pipelines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PAN-16X2-SI |
| MPN | 152703 |
| Product Type | Pneumatic Plastic Tubing |
| Series | PAN Series |
| Material | Polyamide PA (Nylon) |
| Size | OD 16mm, Wall thickness 2mm, ID 12mm |
| Color | Silver (SI) |
| Min Bending Radius | 80 mm |
| Working Medium | Compressed air (ISO 8573-1:2010) |
| Working Pressure | -0.95 ~ 15 bar at 20℃ |
| Ambient Temperature | -40 ~ 100 ℃ |
| Feature | High mechanical strength, rigid, good chemical resistance, ageing-resistant |
| Compliance | RoHS compliant, PWIS conformity |
| Application | Pneumatic Automation System |
