WTM4SF-32161120A00 1157504
Product Details

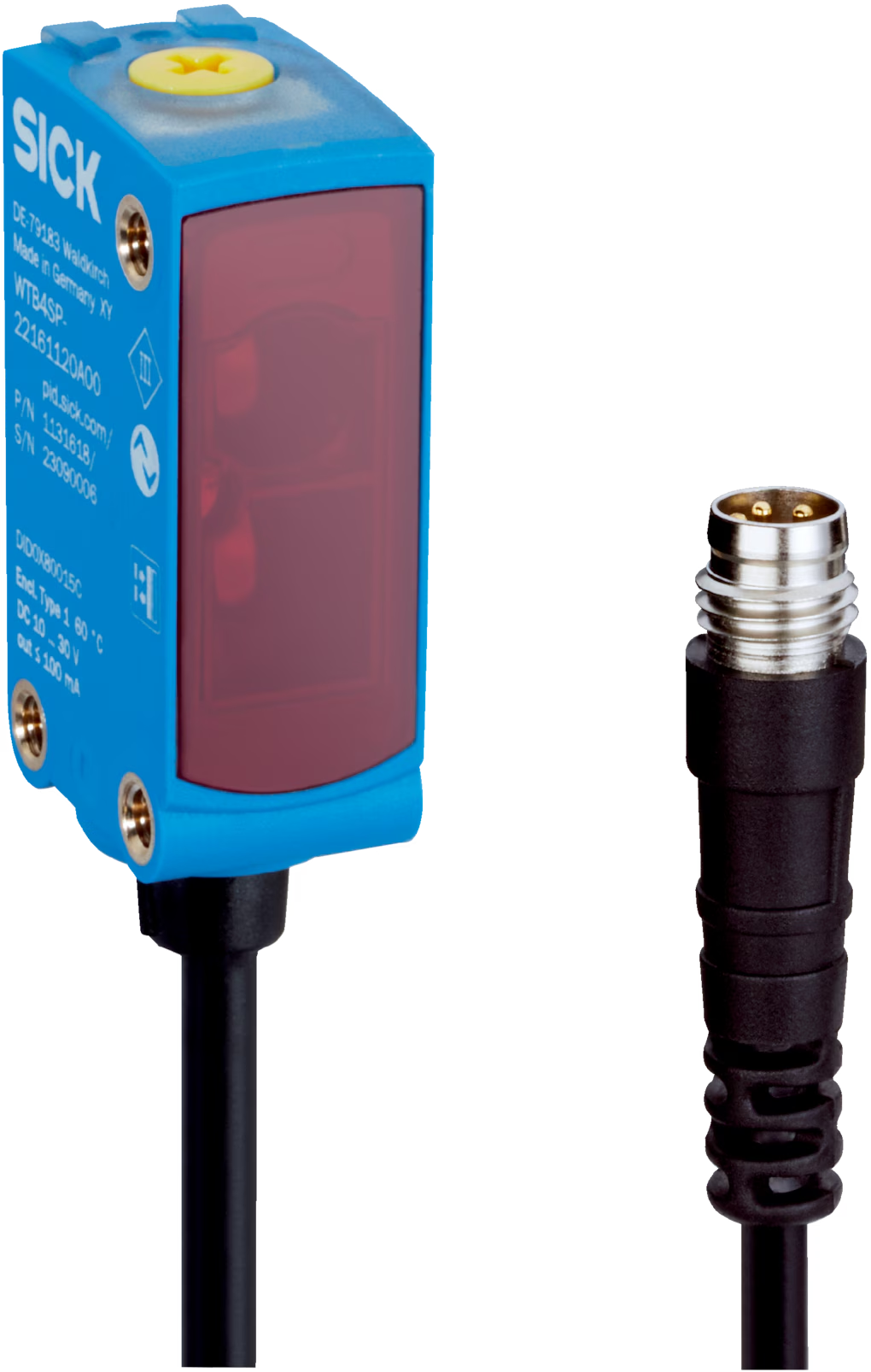

The SICK WTM4SF-32161120A00 is a brand-new original diffuse photoelectric sensor from the WTM4 series. It adopts visible red LED light source and diffuse reflection detection principle, operating with 10–30 V DC power supply. It supports PNP output and switchable Light-ON / Dark-ON function, compatible with multiple industrial automation controllers. It has IP67 protection grade to resist dust and moisture, working stably within -20℃ ~ +60℃ ambient temperature.
This compact sensor is built with plastic rectangular housing and fitted with M8 4-pin connector for simple wiring and assembly. Its sensing range is adjustable from 4mm up to 220mm, ideal for detecting small items.
This diffuse photoelectric sensor is widely applied for object detection and small part counting in packaging machinery and conveyor automated production lines. Each unit undergoes strict pre-shipment quality inspection and holds CE certification. We supply genuine SICK sensors with MOQ of 1 piece and provide stable global shipping services to meet your factory automation demands.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | WTM4SF-32161120A00 |
| Product Name | Photoelectric Sensor |
| Product Type | Diffuse Photoelectric Sensor |
| Series | WTM4 series |
| Working Principle | Diffuse reflection detection |
| Light Source | Visible Red LED |
| Housing Material | Plastic |
| Shape | Rectangular |
| Connection | M8 4-pin connector |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -20℃ ~ +60℃ |
| Sensing Range | 4~220mm adjustable |
| Net Weight | 0.03 kg |
| Gross Weight | 0.08 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Object detection, packaging machinery, conveyor automation, small part counting |
| Certificate | CE |
| MOQ | 1 Piece |
