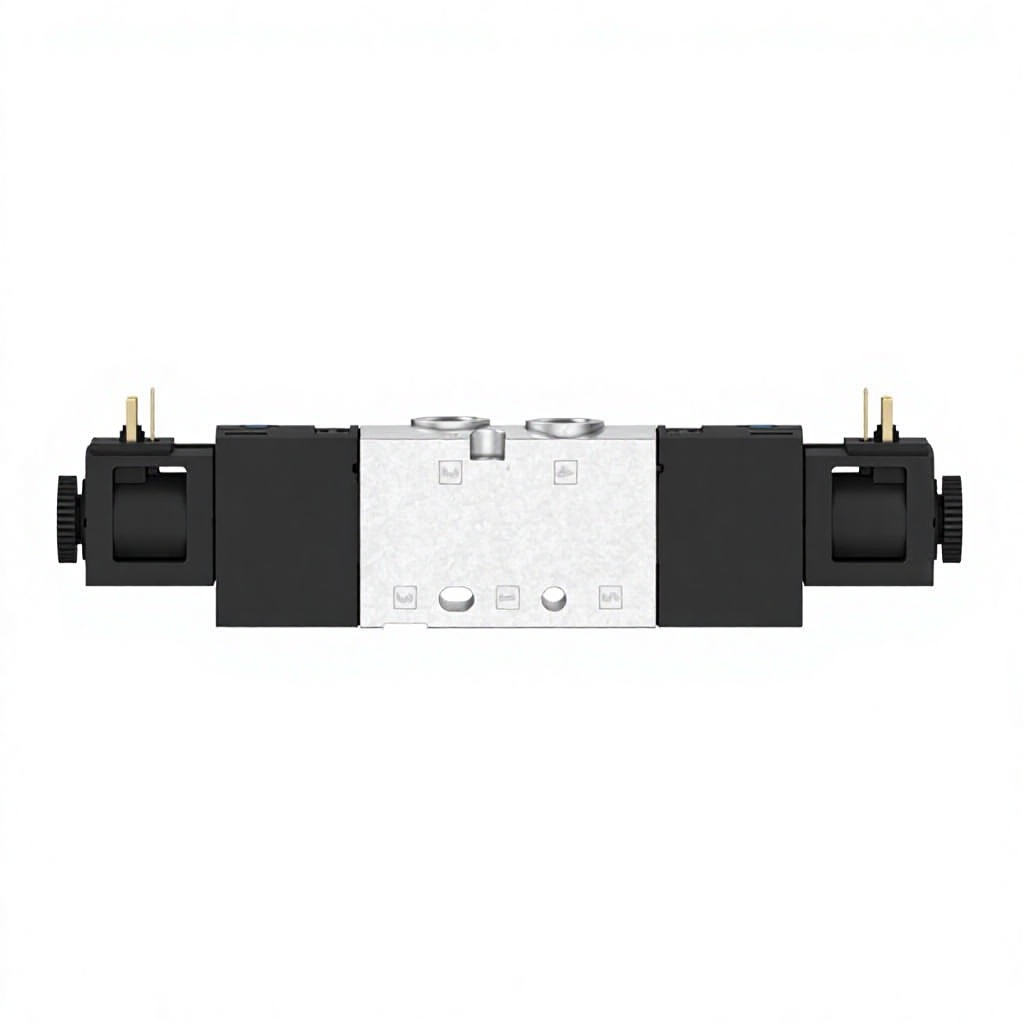

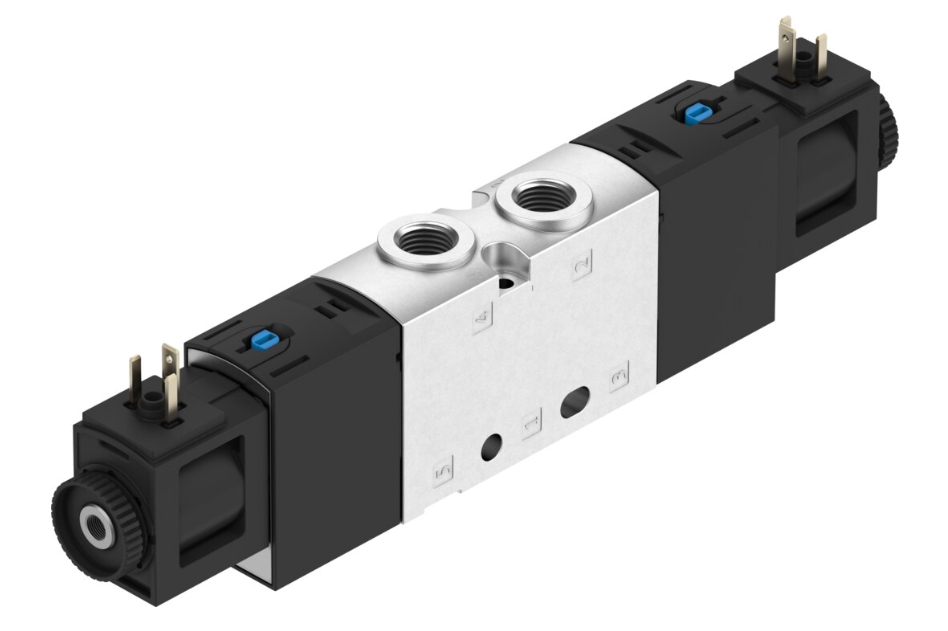

575266 VUVS-L20-P53E-MD-G18-F7-1C1
Product Overview
Item No: 575266 Model: VUVS-L20-P53E-MD-G18-F7-1C1 Brand: Festo Type: 5/3-Way Exhaust Centre Solenoid Valve
Festo VUVS-L20-P53E-MD-G18-F7-1C1 solenoid valve, part number 575266, belongs to VUVS series compact directional control valves. It is a monostable 5/3-way exhaust centre piston gate valve, with 20mm width and G1/8 pneumatic connection. It features high flow capacity of 750 l/min and fast response. Equipped with 24V DC coil and IP65 protection. The die-cast aluminium housing and NBR soft seal ensure reliable sealing. Non-locking manual override enables manual testing during machine setup. It works with filtered compressed air, widely used in automated machinery to control the movement of pneumatic cylinders.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | VUVS-L20-P53E-MD-G18-F7-1C1 |
| Part No. | 575266 |
| Product Series | VUVS |
| Product Type | 5/3-Way Exhaust Centre Solenoid Valve |
| Valve Function | 5/3-way, exhaust centre, monostable |
| Pneumatic Connection | G1/8 |
| Construction Width | 20 mm |
| Nominal Diameter | 6 mm |
| Nominal Flow Rate | 750 l/min |
| Operating Pressure | -0.9 ~ 10 bar |
| Pilot Pressure | 3 ~ 10 bar |
| Operating Medium | Filtered compressed air, ISO 8573-1 [7:4:4] |
| Ambient Temperature | -10 ℃ ~ +50 ℃ |
| Housing Material | Die-cast aluminium alloy |
| Seal Material | NBR |
| Electrical Connection | Solenoid coil with plug socket |
| Coil Voltage | 24V DC |
| Protection Class | IP65 |
| Manual Override | Non-locking button |
| Reset Type | Mechanical spring |
| Mounting | Direct mounting / sub-base mounting |
| Net Weight | 110 g/pc |
| RoHS Compliance | Yes |
| Feature | Piston gate valve, compact structure, fast switching |
| Application | Industrial automation, pneumatic cylinder control |
