534789 VSVA-B-P53E-ZH-A2-1R2L
Product Overview

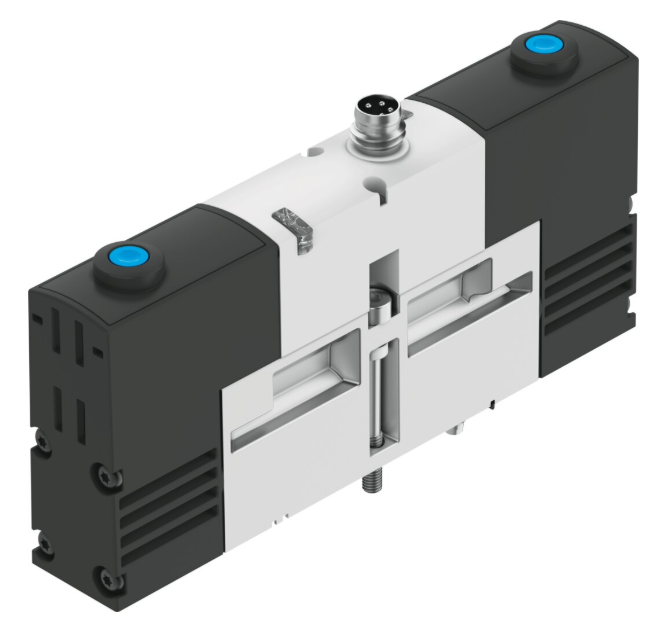

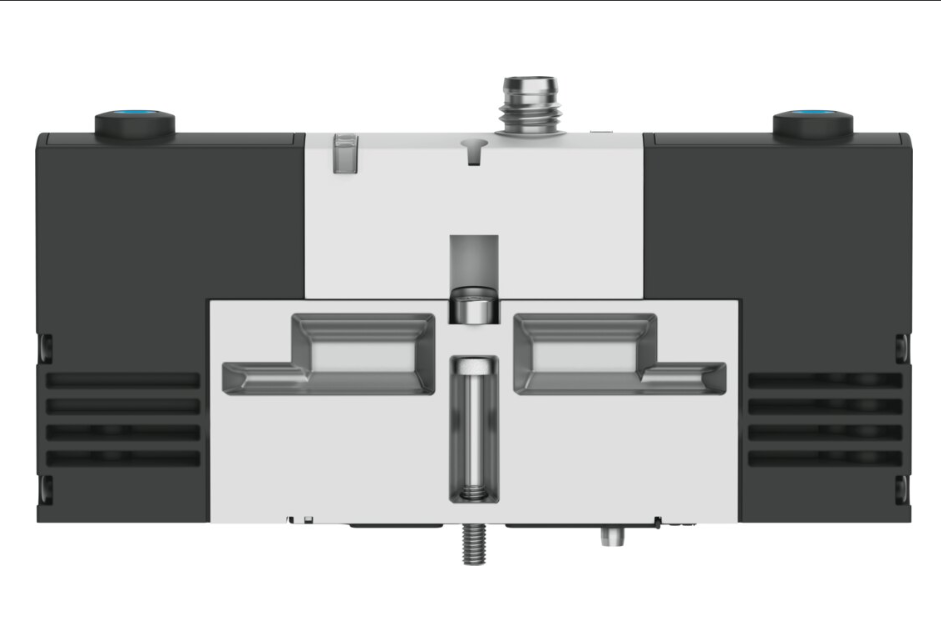

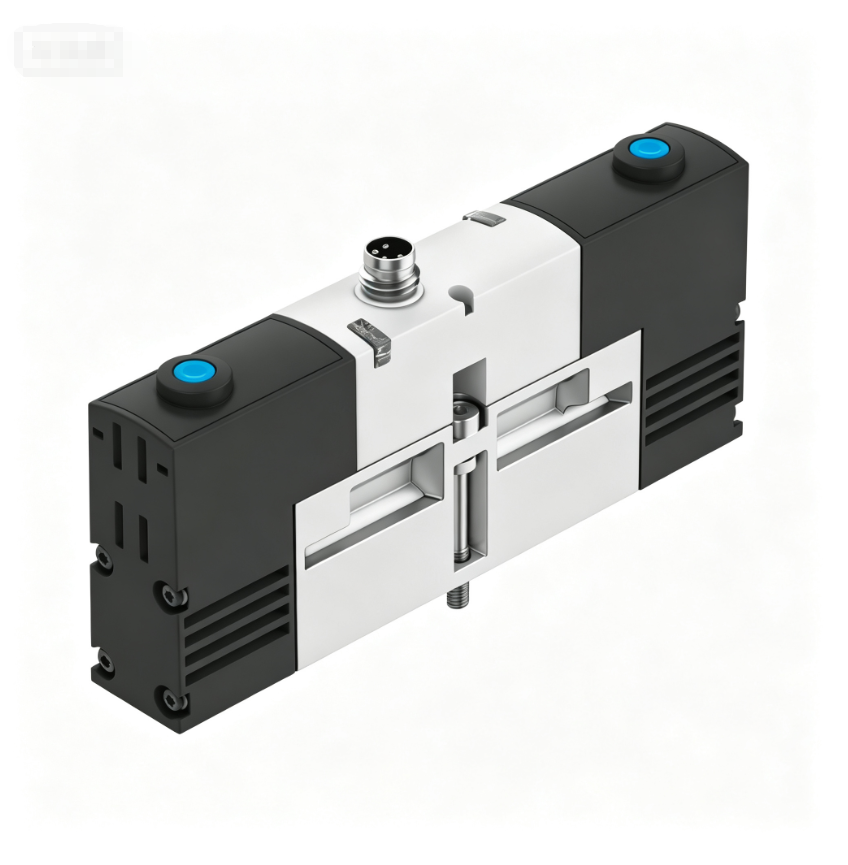

Item No: 534789 Model: VSVA-B-P53E-ZH-A2-1R2L Brand: Festo Type: 5/3-Way Exhaust Centre Solenoid Valve
Festo VSVA-B-P53E-ZH-A2-1R2L solenoid valve, part number 534789, belongs to VSVA series compact directional control valves. It is a monostable 5/3-way exhaust centre piston gate valve, with 18mm width and sub-base mounting conforming to ISO 15407-1 / VDMA 24563. It features high flow capacity of 450 l/min and fast response. Equipped with 24V DC coil, M8 round connector, IP65 protection and LED status indicator. The die-cast aluminium housing and NBR soft seal ensure reliable sealing. Covered manual override enables manual testing during machine setup. It works with filtered compressed air, widely used in automated machinery to control the movement of pneumatic cylinders.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | VSVA-B-P53E-ZH-A2-1R2L |
| Part No. | 534789 |
| Product Series | VSVA |
| Product Type | 5/3-Way Exhausted Solenoid Valve |
| Valve Function | 5/3-way, exhaust centre, monostable |
| Pneumatic Connection | Sub-base 18mm, ISO 15407-1 / VDMA 24563 |
| Construction Width | 18 mm |
| Nominal Diameter | 5 mm |
| Nominal Flow Rate | 450 l/min |
| Operating Pressure | -0.9 ~ 10 bar |
| Pilot Pressure | 3 ~ 10 bar |
| Operating Medium | Filtered compressed air, ISO 8573-1 [7:4:4] |
| Ambient Temperature | -5 ℃ ~ +50 ℃ |
| Housing Material | Die-cast aluminium alloy |
| Seal Material | NBR |
| Electrical Connection | M8×1 central round plug |
| Coil Voltage | 24V DC |
| Protection Class | IP65 |
| Manual Override | Covered button |
| Reset Type | Mechanical spring |
| Mounting | Sub-base mounted, any position |
| Net Weight | 80 g/pc |
| RoHS Compliance | Yes |
| Feature | Piston gate valve, soft seal, LED signal indicator |
| Application | Industrial automation, pneumatic cylinder control |
