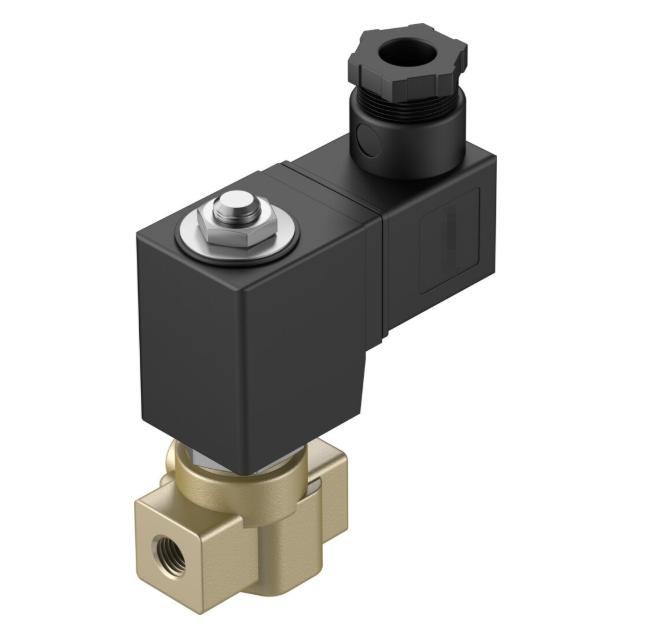

1491845 VZWD-L-M22C-M-G14-40-V-1P4-8
Product Overview
Item No: 1491845 Model: VZWD-L-M22C-M-G14-40-V-1P4-8 Brand: Festo Type: 2/2-Way Normally Closed Direct Acting Poppet Solenoid Valve
Festo VZWD-L-M22C-M-G14-40-V-1P4-8 solenoid valve, part number 1491845, belongs to VZWD series fluid control valves. It is a monostable 2/2-way normally closed direct acting poppet valve with G1/4 connection. The valve adopts cast brass body and FPM sealing material, good compatibility with compressed air, inert gas, mineral oil and neutral liquids. It works with 24V DC coil, 11W power rating, IP65 protection with standard EN 175301-803 Form A connector. It can run at 100% duty cycle and can be installed in any in-line position. Designed for simple and stable on-off control of gas and liquid media, widely applied in industrial automation fluid circuits.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | VZWD-L-M22C-M-G14-40-V-1P4-8 |
| Part No. | 1491845 |
| Product Series | VZWD |
| Product Type | 2/2 Way Direct Acting Poppet Solenoid Valve |
| Valve Function | 2/2-way, Normally Closed, Monostable |
| Process Connection | G1/4 |
| Nominal Width | 4 mm |
| Operating Pressure | 0 ~ 8 bar |
| Kv Flow Rate | 0.3 m³/h |
| Operating Medium | Compressed air, inert gas, mineral oil, water, neutral liquids |
| Ambient Temperature | -10 ℃ ~ +35 ℃ |
| Medium Temperature | -10 ℃ ~ +80 ℃ |
| Housing Material | Cast Brass CW617N |
| Seal Material | FPM |
| Armature Tube | High-alloy Steel |
| Coil Voltage | 24V DC |
| Coil Power | 11.0 W |
| Insulation Class | H |
| Electrical Connection | EN 175301-803 Form A Plug |
| Protection Class | IP65 |
| Manual Override | None |
| Reset Type | Mechanical spring |
| Mounting | In-line installation, any position |
| Net Weight | 550 g/pc |
| RoHS Compliance | Yes |
| Feature | Direct poppet valve, non-reversible flow, 100% duty cycle |
| Application | Industrial automation, fluid & air on-off control |
