LFP0300-G2NMB

属性名称	属性值
Brand	SICK
Model	LFP0300-G2NMB
Order No.	LFP0300-G2NMB
Product Type	TDR Level Sensor / Level Transmitter
Connector Type	M12 Straight, 5 Pin, A-coded
Pin	5 Pin
Probe Length	300 mm
Process Connection	G3/4 A
Wetted Material	1.4404(316L), PTFE, FKM
Output Signal	1×PNP +1×PNP/NPN + 4…20mA / 0…10V
Supply Voltage	12~30 V DC
Max Current	100 mA
IP Rating	IP67, IP69K
Working Pressure	-1 bar ~ +16 bar
Operating Temperature	-20℃~+150℃
Feature	High precision, hygienic design, IO-Link

INQUIRY

Product Details

Product Tags

Product Overview

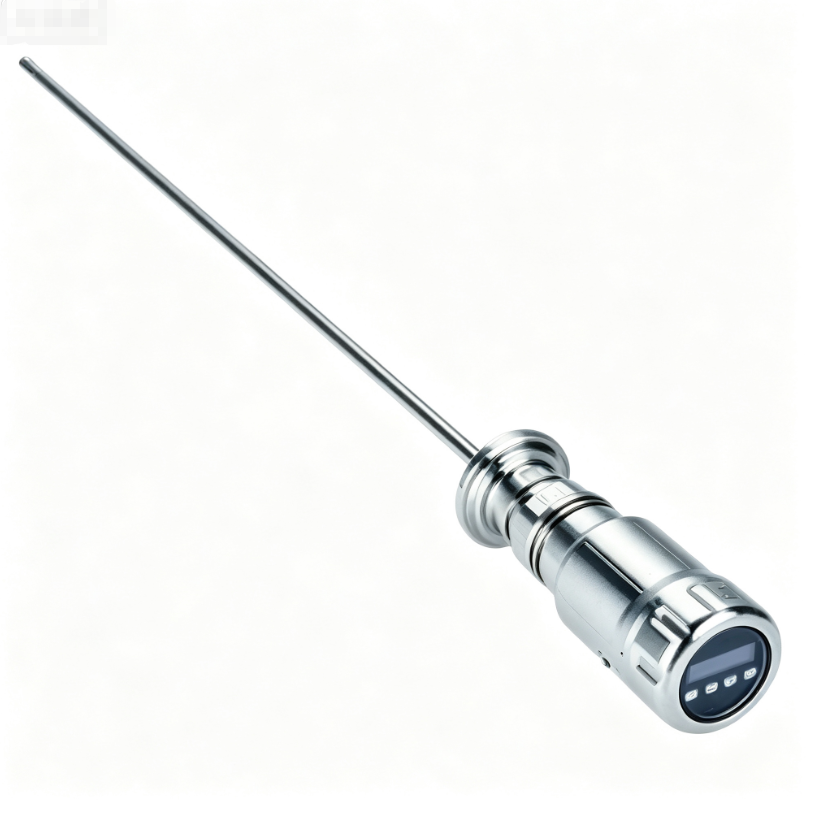

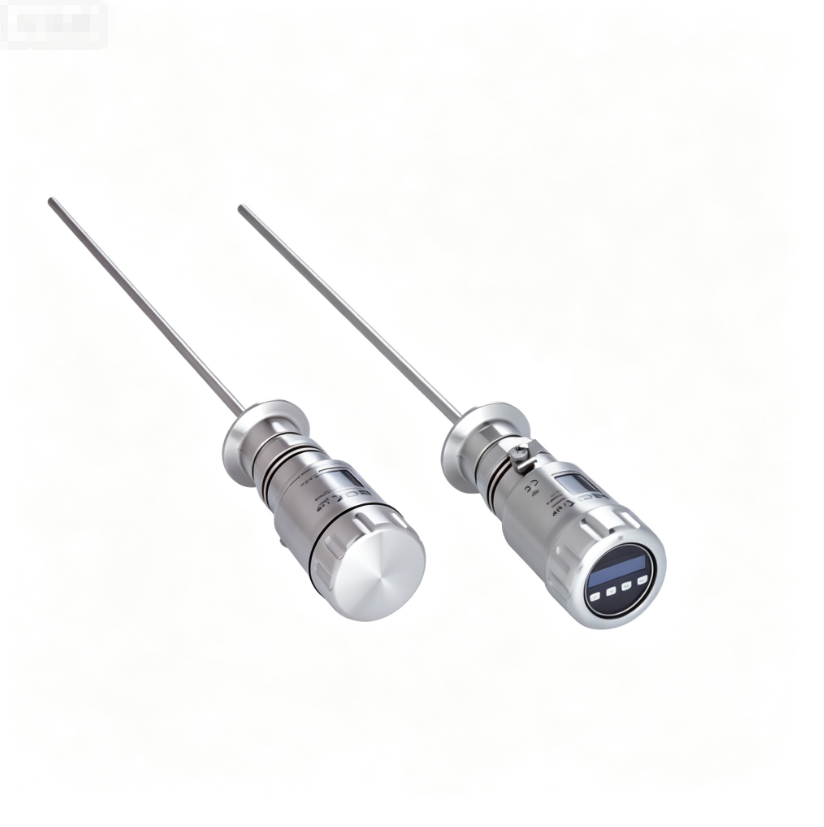

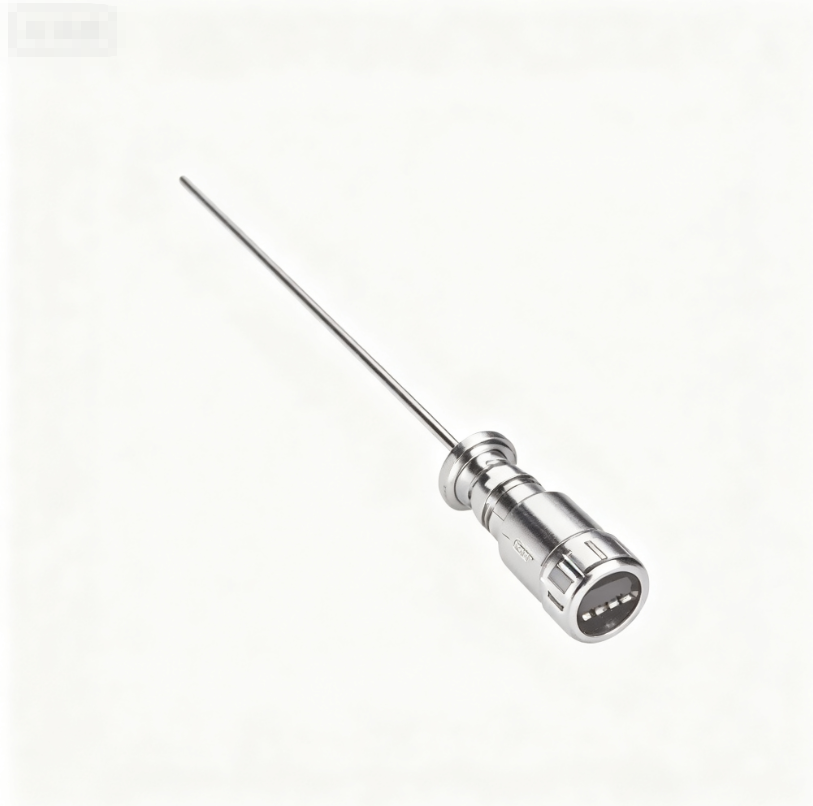

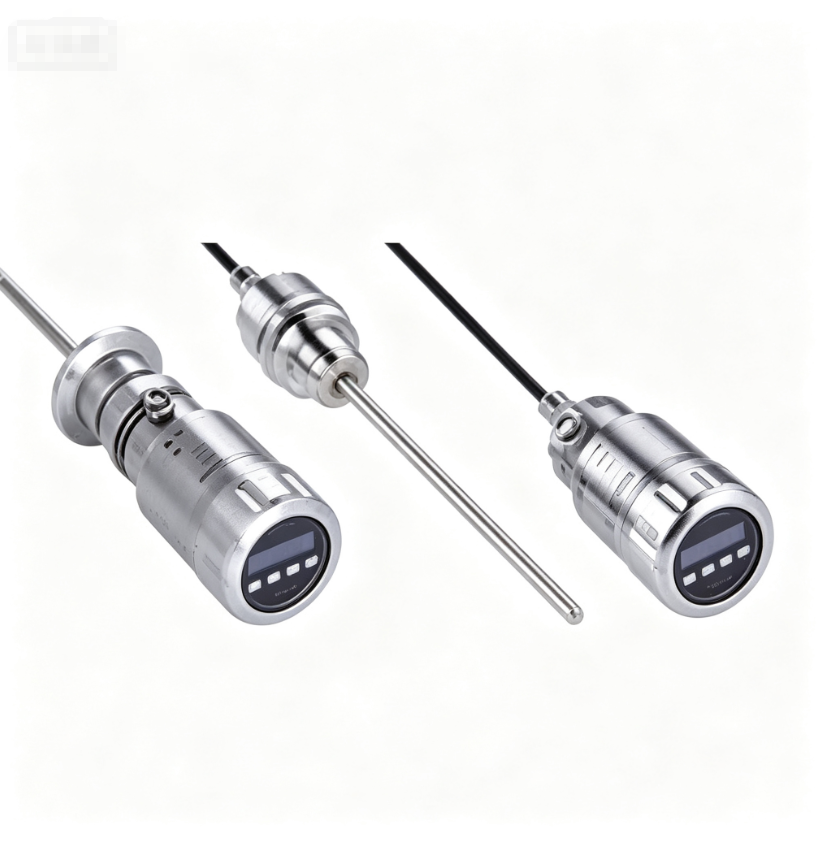

LFP0300-G2NMB is SICK TDR guided wave level sensor (level transmitter). It adopts 300mm probe with G3/4 process connection. Wetted components are made of 1.4404(316L) stainless steel, PTFE and FKM. It provides 4…20mA / 0…10V analog signal plus PNP switching output, and supports IO-Link communication. With IP67 & IP69K high protection rating, it can realize continuous and accurate liquid level measurement for tanks under high pressure and wide temperature conditions.

属性名称	属性值
Brand	SICK
Model	LFP0300-G2NMB
Order No.	LFP0300-G2NMB
Product Type	TDR Level Sensor / Level Transmitter
Connector Type	M12 Straight, 5 Pin, A-coded
Pin	5 Pin
Probe Length	300 mm
Process Connection	G3/4 A
Wetted Material	1.4404(316L), PTFE, FKM
Output Signal	1×PNP +1×PNP/NPN + 4…20mA / 0…10V
Supply Voltage	12~30 V DC
Max Current	100 mA
IP Rating	IP67, IP69K
Working Pressure	-1 bar ~ +16 bar
Operating Temperature	-20℃~+150℃
Feature	High precision, hygienic design, IO-Link available
Certification	CE
Condition	New Original
MOQ	1 Piece
Gross Weight	0.45 KG
Net Weight	0.40 KG
Place of Origin	Germany
