1052070 (LFP0500-G1NMB)
Product Overview

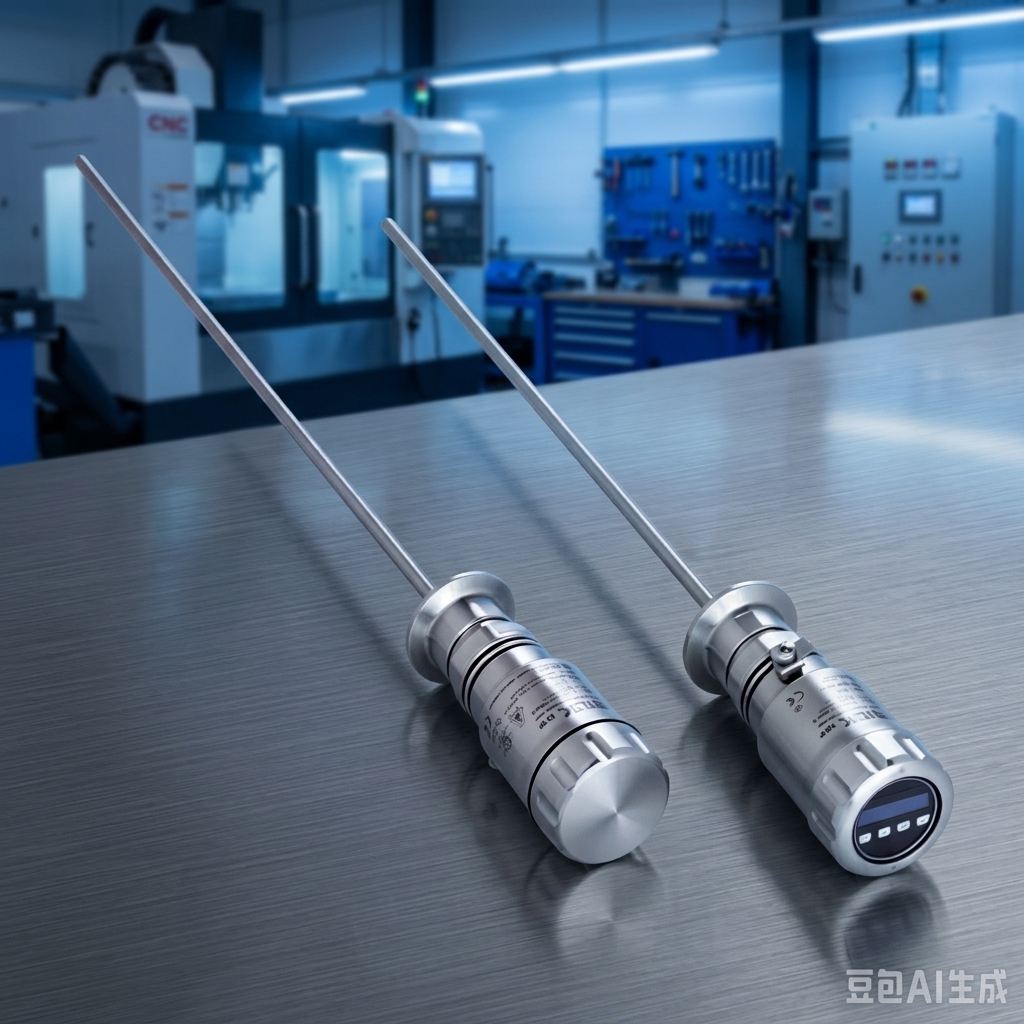

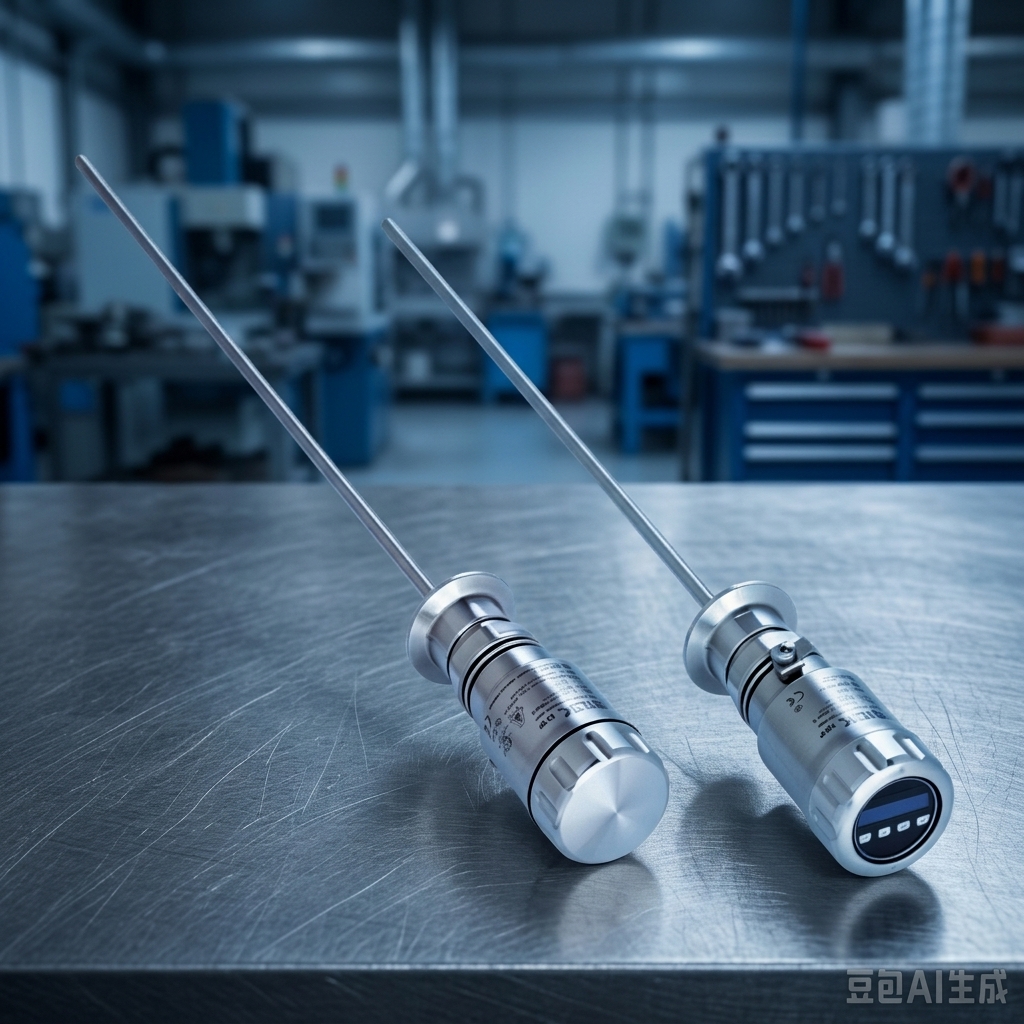

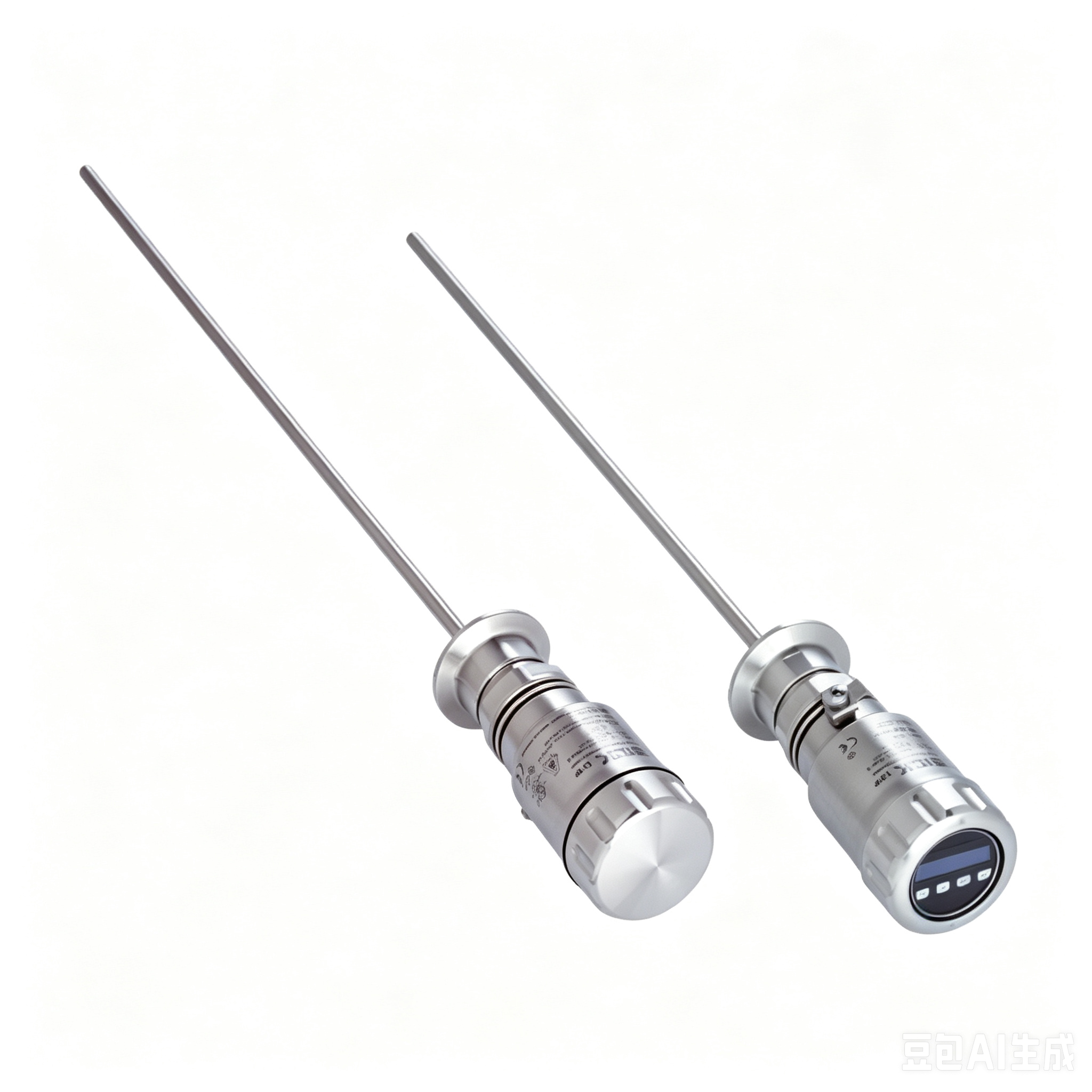

LFP0500-G1NMB (Part No.1052070) is SICK TDR guided wave level sensor (level transmitter). Equipped with 500mm probe and G3/4 A process connection. Wetted components are made of 1.4404(316L) stainless steel, PTFE and FKM. It provides 4…20mA / 0…10V analog signal plus PNP switching output, and supports IO-Link communication. With IP67 & IP69K high protection rating, it can realize continuous and accurate liquid level measurement for tanks under high pressure and wide temperature conditions.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | LFP0500-G1NMB |
| Order No. | 1052070 |
| Product Type | TDR Level Sensor / Level Transmitter |
| Connector Type | M12 Straight, 5 Pin, A-coded |
| Pin | 5 Pin |
| Probe Length | 500 mm |
| Process Connection | G3/4 A |
| Wetted Material | 1.4404(316L), PTFE, FKM |
| Output Signal | 1×PNP +1×PNP/NPN + 4…20mA / 0…10V |
| Supply Voltage | 12~30 V DC |
| Max Current | 100 mA |
| IP Rating | IP67, IP69K |
| Working Pressure | -1 bar ~ +16 bar |
| Operating Temperature | -20℃~+150℃ |
| Feature | High precision, IO-Link available, hygienic design |
| Certification | CE |
| Condition | New Original |
| MOQ | 1 Piece |
| Gross Weight | 0.48 KG |
| Net Weight | 0.44 KG |
| Place of Origin | Germany |
