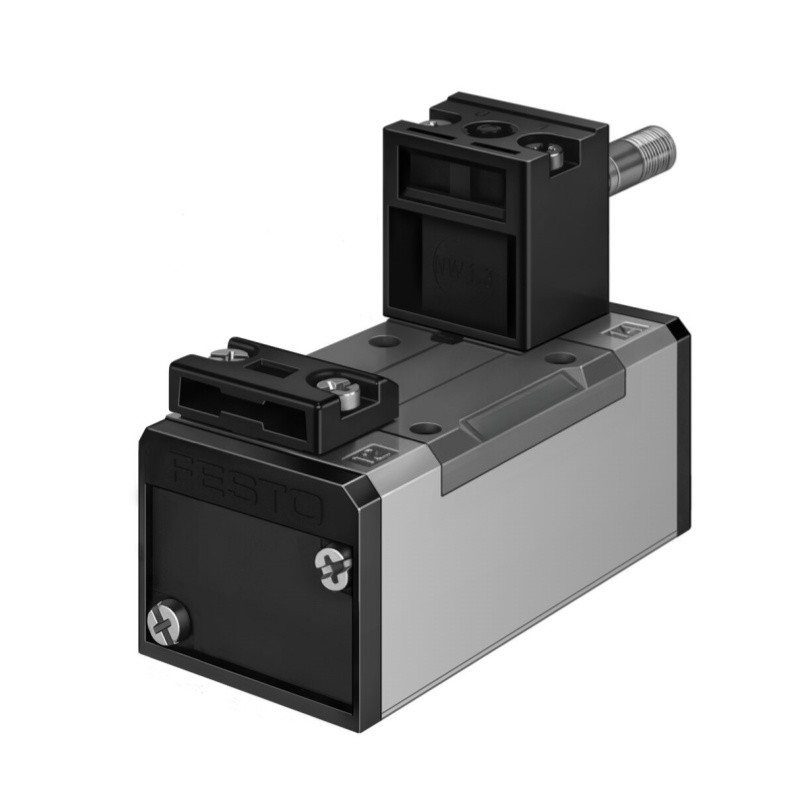

MFH-5/2-D-1-FR-C
Product Description
Festo MFH-5/2-D-1-FR-C (PN:151016) is MFH series ISO5599-1 standard 5/2-way monostable single solenoid directional valve with internal pilot. The FR suffix means exhaust throttle function for adjusting cylinder speed.
It adopts piston gate soft-seal structure, high flow rate up to 1200L/min, mounted on ISO5599-1 standard manifold subbase. Solenoid coil is not included and must be purchased separately. It is widely used for double-acting cylinder forward/backward control. This product is being phased out, not suitable for new equipment design.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MFH-5/2-D-1-FR-C |
| Part No | 151016 |
| Product Type | Solenoid Valve |
| Series | MFH Series |
| Valve Function | 5/2-way, monostable, single solenoid, internal pilot |
| Structure | Piston gate valve, soft sealing |
| Pneumatic Port | Sub-base size 1 ISO5599-1, G1/4 |
| Nominal Size | 8 mm |
| Construction Width | 42 mm |
| Operating Pressure | 0.3 ~1.0 MPa (3 ~10 bar) |
| Nominal Flow Rate | 1200 L/min (DIN1343) |
| Switching Time | ON:16 ms, OFF:45 ms |
| Exhaust Function | Exhaust with flow control option |
| Manual Override | Non-detenting; detenting available via accessory |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air allowed |
| Ambient Temperature | -10 ~ +60 ℃ |
| Protection Class | IP65 |
| Mounting | Any mounting position, ISO5599-1 manifold subbase mounting |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR |
| Weight | 410.00 g |
| Corrosion Resistance Class | CRC 2 |
| Compliance | LABS / VDMA24364-B1/B2-L, RoHS, CE, cULus |
| Feature | ISO5599-1 standard 5/2 monostable solenoid valve, internal pilot, FR=flow regulator exhaust throttle, coil sold separately, widely used for cylinder control; phase-out product, not recommended for new projects |
