VHER-P-H-B43C-B-G18
Product Overview

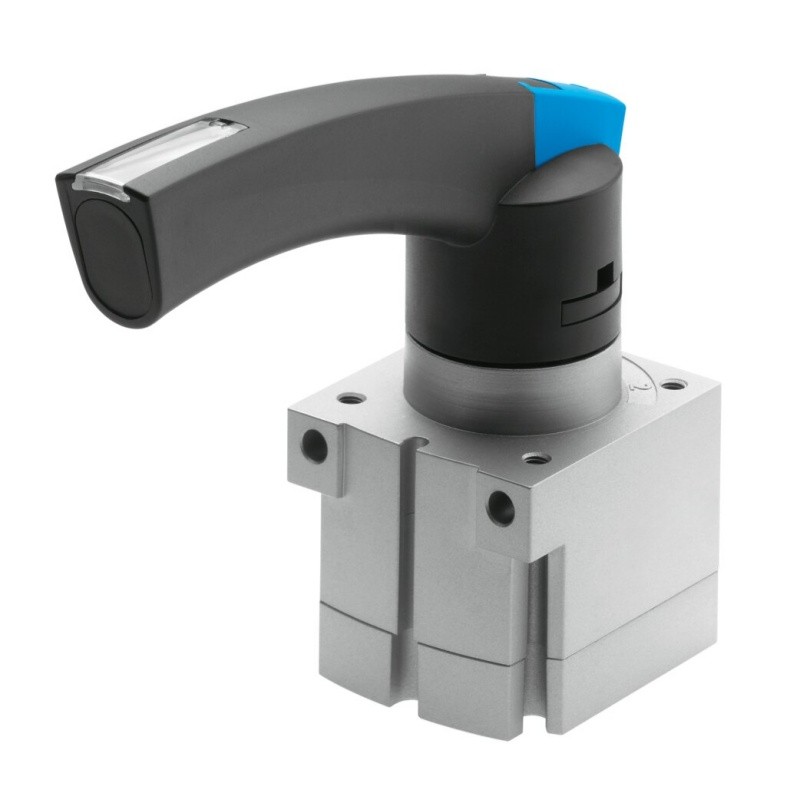

FESTO VHER-P-H-B43C-B-G18 belongs to VHER hand lever valve series. It is a 4/3-way rotary slide manual valve with detent locking, mid-position closed. All ports G1/8 thread, nominal flow up to 800 l/min. Manual lever operation, exhaust port can be throttled to adjust cylinder speed. Detent keeps valve at selected position; padlock can be fitted for LOTO safety lockout. Body and lever made of PA polyamide, NBR seal, LABS(PWIS) compliant, suitable for paint workshop. Through-hole panel mounting, any installation orientation, widely used for manual directional control of pneumatic cylinders in automation and packaging equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | VHER-P-H-B43C-B-G18 |
| Order No. | 3488209 |
| Product Series | VHER |
| Product Type | 4/3-Way Hand Lever Valve |
| Valve Function | 4/3-way, detenting, mid-position closed（中位封闭） |
| Structure | Rotary slide valve |
| Actuation | Manual hand lever operation |
| Pneumatic Port | Port1/2/3/4: G1/8 |
| Nominal Size | 6 mm |
| Nominal Flow Rate | 800 l/min (DIN1343) |
| Operating Pressure | 0 ~ 10 bar |
| Exhaust Function | Throttleable exhaust |
| Valve Width | 42 mm |
| Actuating Torque | 0.9 Nm |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air optional |
| Housing Material | PA Polyamide |
| Lever Material | PA Polyamide |
| Seal Material | NBR |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L, detent locking, optional padlock for safety lockout, rotary slide design, exhaust throttle adjustable |
| Mounting | Through-hole panel mounting, any mounting position |
| Corrosion Resistance Class | CRC 2 |
| Weight | 125 g |
| Certificate | RoHS |
| Origin | Brazil |
| Condition | New Original |
