6ES7317-2EK13-0AB0

Attribute Name	Value
Brand	Siemens
Model	6ES7317-2EK13-0AB0
Series	SIMATIC S7-300, CPU317-2PN/DP
Type	PLC Central Processing Unit / CPU
Memory	Work memory 512KB, load memory 256KB (expandable by MMC)
Interface	1×Profibus-DP, 1×Profinet (2-port switch)
Execution Speed	Boolean:0.025μs, Integer:0.025μs, Floating point:0.3μs
Max IO Address	1024DI /1024DO,1024AI /1024AO
Protocol	Profinet, Profibus-DP, S7 communication, ISO-on-TCP, TCP/IP
Power Supply	DC24V
Mounting	DIN rail, S7-300 backpla

INQUIRY

Product Details

Product Tags

Product Overview

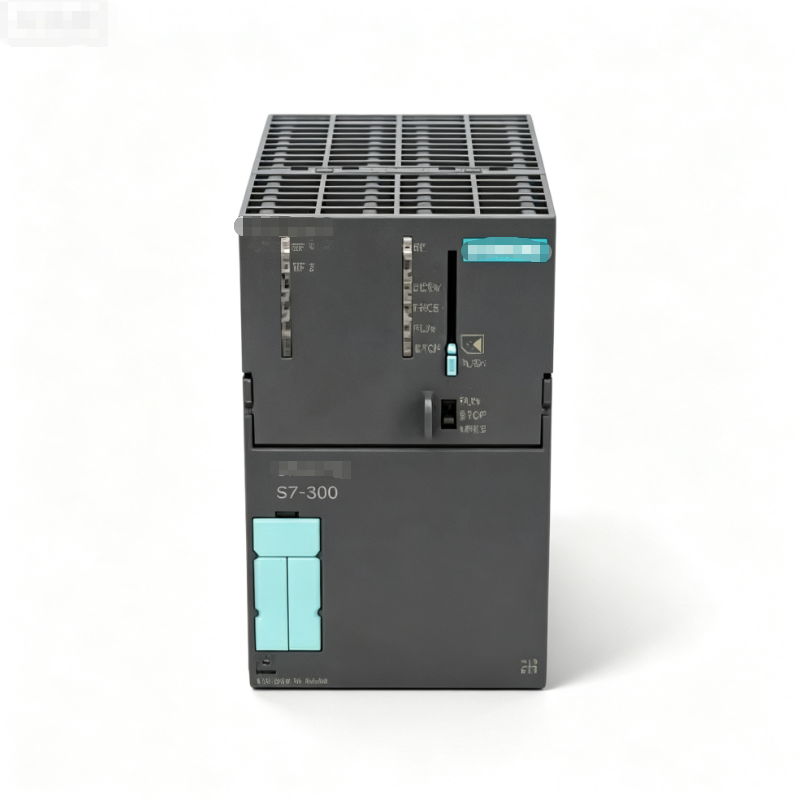

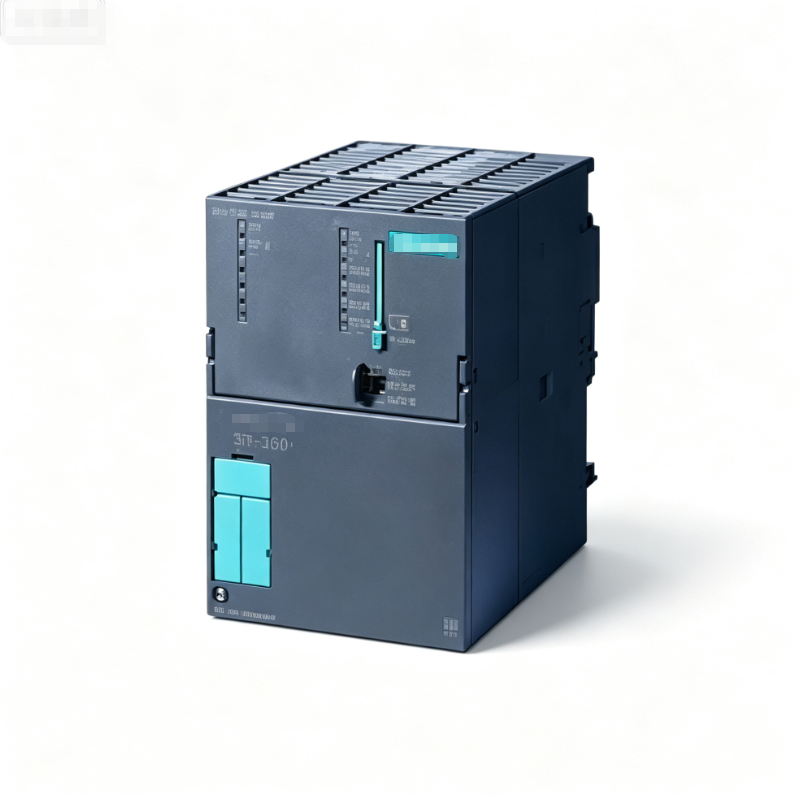

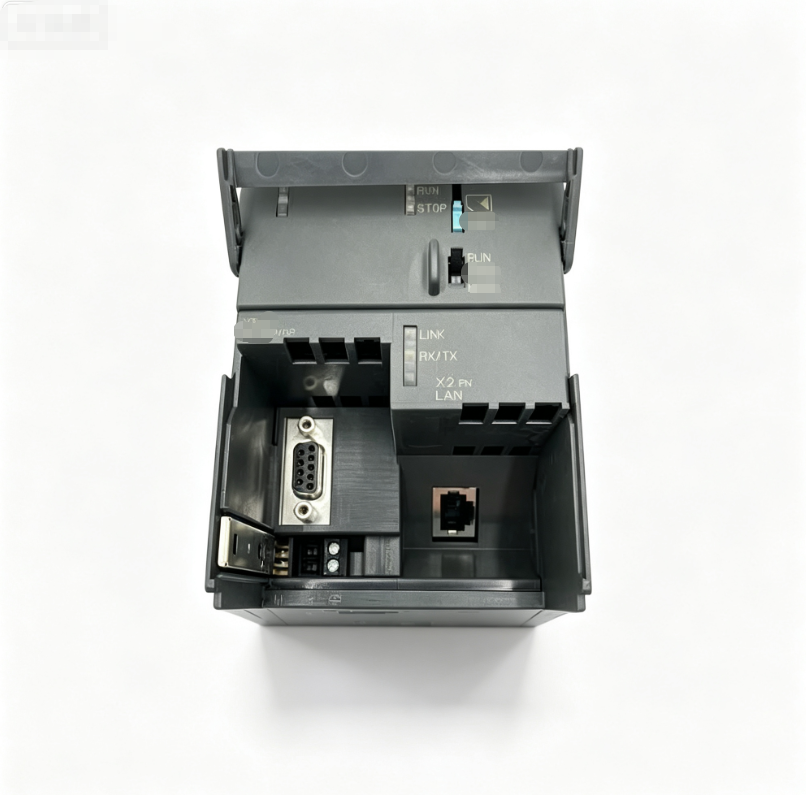

Siemens 6ES7317-2EK13-0AB0 is SIMATIC S7-300 CPU317-2PN/DP central processing unit. It comes with 512KB work memory and 256KB load memory (expandable by MMC memory card). Integrated 1×Profibus-DP port and 1×Profinet interface with built-in 2-port switch. Fast processing speed, supports Profinet, Profibus-DP, S7 communication, ISO-on-TCP and TCP/IP. Powered by DC24V, DIN rail mounted on S7-300 rack. Suitable for medium and large-scale automation projects with distributed I/O.

Attribute Name	Value
Brand	Siemens
Model	6ES7317-2EK13-0AB0
Series	SIMATIC S7-300, CPU317-2PN/DP
Type	PLC Central Processing Unit / CPU
Memory	Work memory 512KB, load memory 256KB (expandable by MMC)
Interface	1×Profibus-DP, 1×Profinet (2-port switch)
Execution Speed	Boolean:0.025μs, Integer:0.025μs, Floating point:0.3μs
Max IO Address	1024DI /1024DO,1024AI /1024AO
Protocol	Profinet, Profibus-DP, S7 communication, ISO-on-TCP, TCP/IP
Power Supply	DC24V
Mounting	DIN rail, S7-300 backplane
Origin	Germany
Warranty	1 year
Condition	New Original
Net Weight	0.42kg
Gross Weight	0.62kg
