CTEU-PN

属性名称	属性值
Brand	Festo
Model	CTEU-PN
Part No	2201471
Product Type	PROFINET Bus Node / Valve Terminal Fieldbus Module
Series	CTEU Series, 40mm grid size
Protocol	PROFINET RT, 100BaseTX Ethernet, integrated switch
Process data	Max. 64 Byte Input / 64 Byte Output
Power Supply	DC24V, operating range DC18~30V; typical consumption 65mA
Bus Connection	2×M12 D-coded (4pin), 100 Mbit/s
Power Connector	M12 A-coded 5pin
Indicator	6pcs LED for power, I-Port status, network fault, port activity
DIP

INQUIRY

Product Details

Product Tags

Product Description

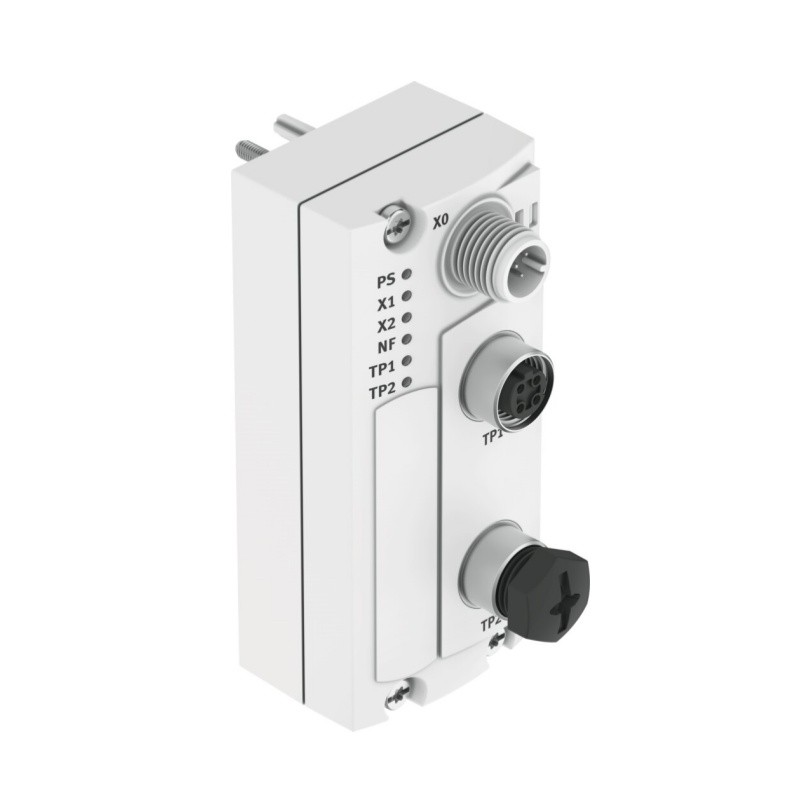

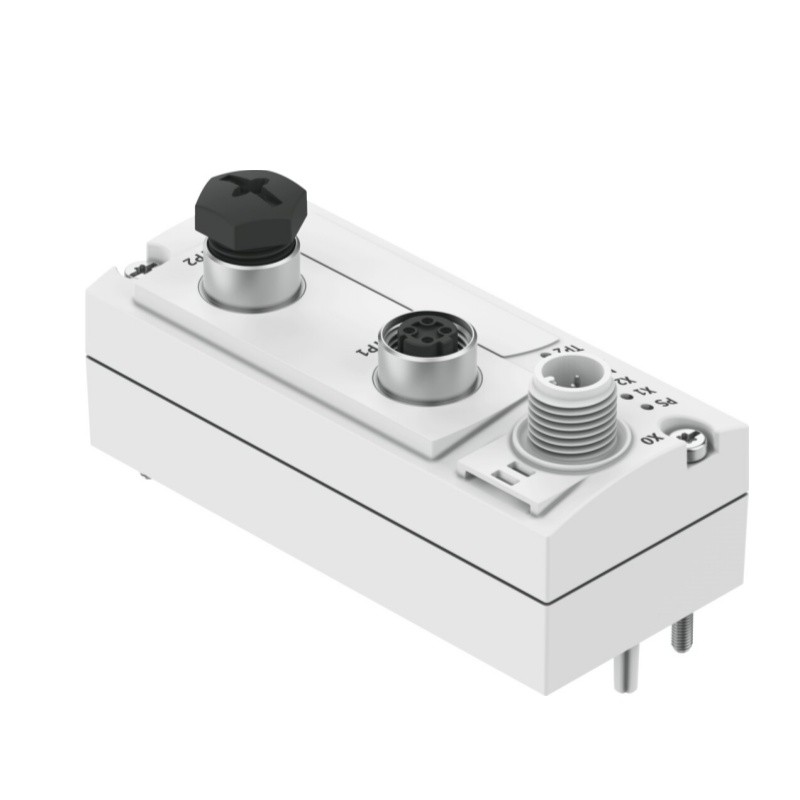

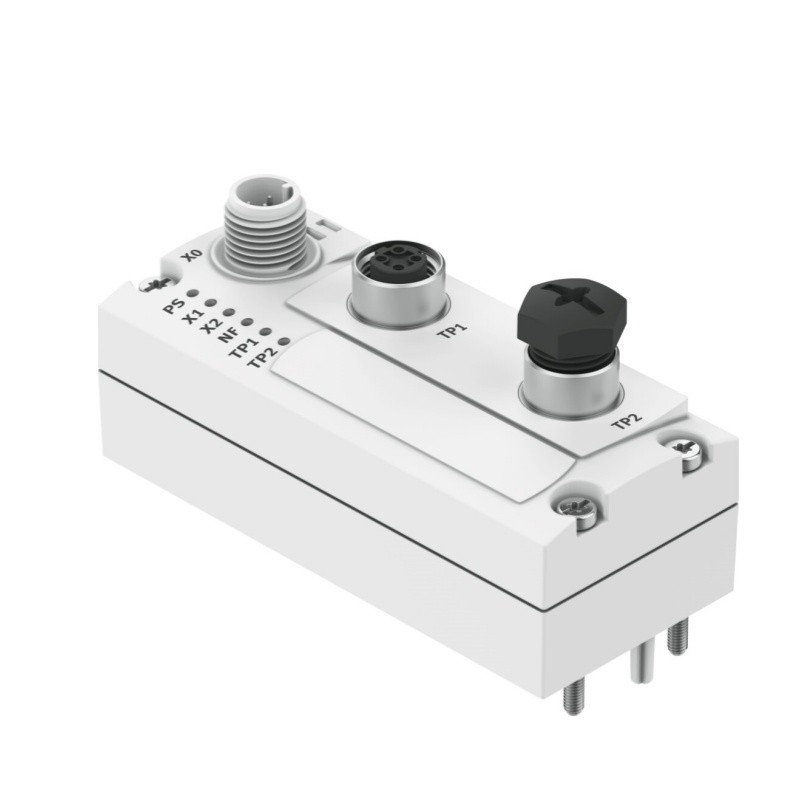

Festo CTEU-PN (PN:2201471) is CTEU series PROFINET RT bus node for Festo valve terminals. It acts as the communication gateway between valve terminal and PROFINET PLC controller.

Equipped with integrated Ethernet switch, two M12 D-coded ports support line topology without extra switch. It transmits cyclic process data up to 64Byte input and 64Byte output, with built-in diagnostic LEDs for quick troubleshooting. It can be mounted directly on valve terminal electrical interface or CAPC electrical base, IP65/IP67 for industrial automation environment. It is widely used for valve island control in assembly, packaging and handling machines.

Item	Specification
Brand	Festo
Model	CTEU-PN
Part Number	2201471
Type	PROFINET Bus Node
Series	CTEU
Protocol	PROFINET RT, 100BaseTX Ethernet
Power Supply	DC18~30V (Nominal DC24V)
Process IO	Max.64Byte In / 64Byte Out
Bus Interface	2 × M12 D-coded
Power Connector	M12 A-coded
Dimension	40 × 91 × 50 mm
Weight	93 g
Housing Material	PA
Ambient Temp	0 ~ +50 ℃
Protection	IP65/IP67
Corrosion Class	CRC2
Standard	LABS, RoHS, CE, cULus
