153040 QS-12-10
Product Overview
Item No: 153040 Model: QS-12-10 Brand: Festo Type: Straight Push-in Reducer Pneumatic Fitting

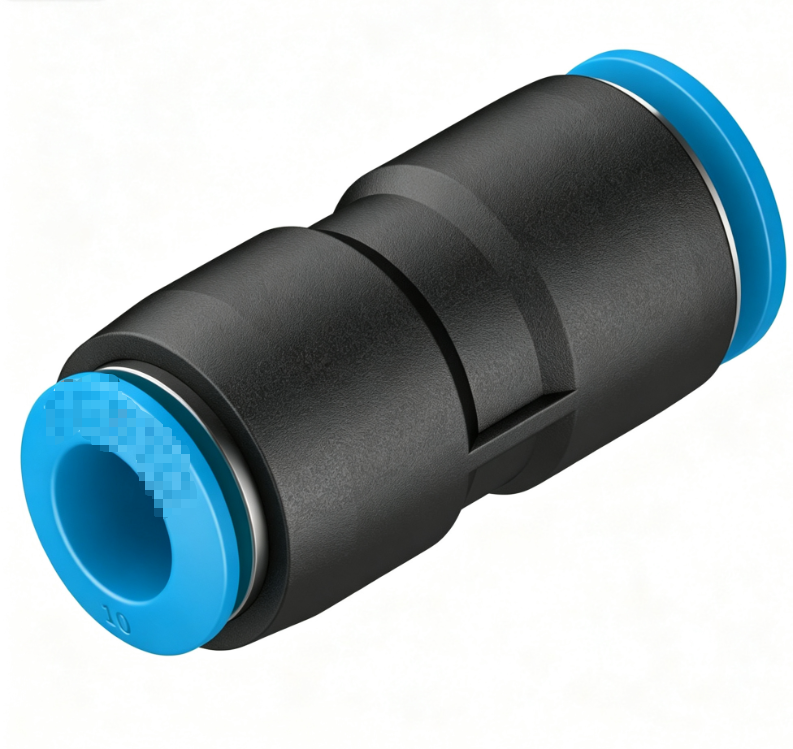

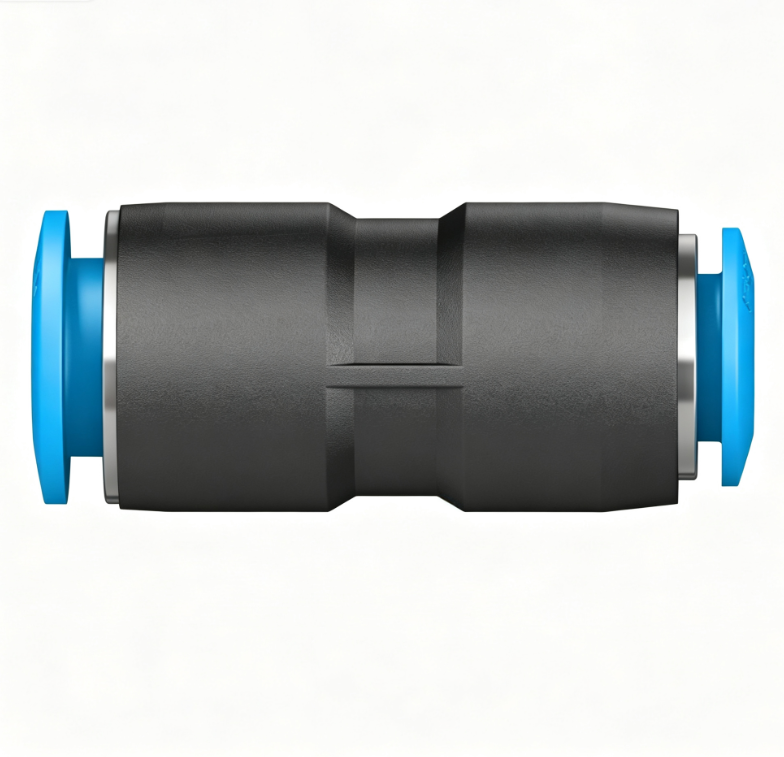

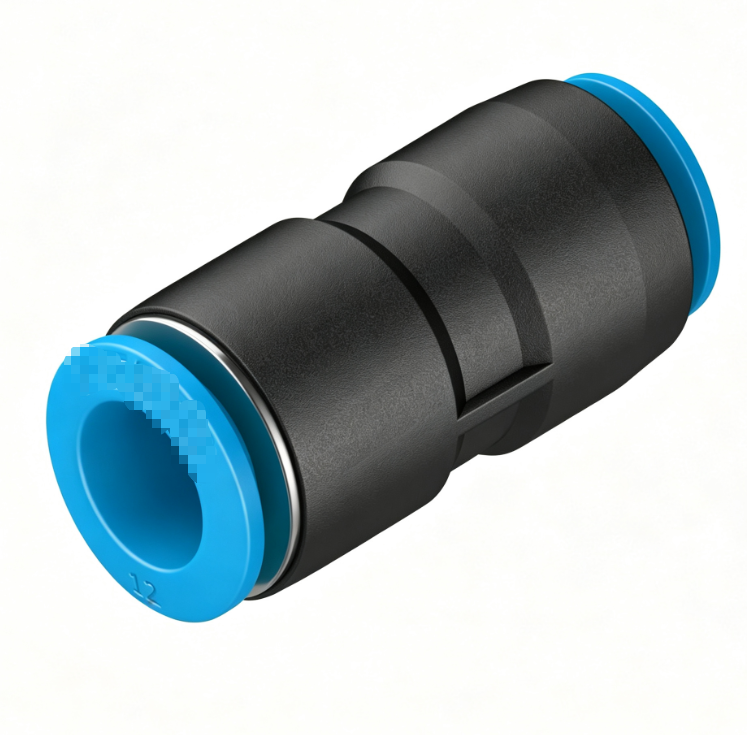

Festo QS-12-10 pneumatic reducer fitting, part number 153040, belongs to QS Quick Star push-in series. It is a straight reducing connector for connecting 12mm OD pneumatic hose to 10mm OD hose. It adopts push-pull quick connection design, enabling fast hose insertion and removal without any tools. This fitting features compact structure and reliable sealing, ideal for pipeline diameter transition in pneumatic circuits. Made of premium PBT housing, NBR seal and high-alloy stainless steel clamp spring, it ensures stable airtight performance and long service life. Widely used in industrial automation pneumatic systems for pipe size conversion.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | QS-12-10 |
| Part No. | 153040 |
| Product Series | QS Quick Star |
| Product Type | Straight Push-in Reducer Connector |
| Port 1 | Push-in for 12mm OD Tube |
| Port 2 | Push-in for 10mm OD Tube |
| Nominal Diameter | 9 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Full Temperature Range Pressure | ≤ 6 bar |
| Operating Medium | Compressed air / Ice-free water |
| Ambient Temperature | -10 ℃ ~ +80 ℃ |
| Body Material | PBT |
| Release Ring Material | POM |
| Seal Material | NBR |
| Clamp Spring | High-alloy Stainless Steel |
| Release Ring Color | Blue |
| Pack Quantity | 10 pcs/pack |
| Net Weight | 21 g/pc |
| RoHS Compliance | Yes |
| Feature | Push-in connection, straight reducing fitting |
| Application | Pneumatic Automation Circuit |
