186124 QSL-G3/8-12
Product Overview
Item No: 186124 Model: QSL-G3/8-12 Brand: Festo Type: 90° L-type Push-in Elbow Pneumatic Fitting

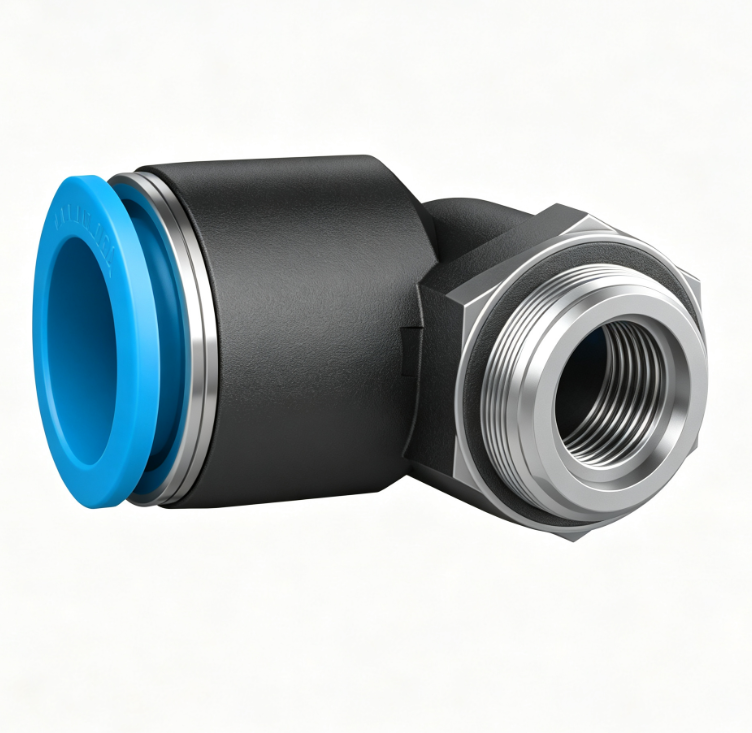

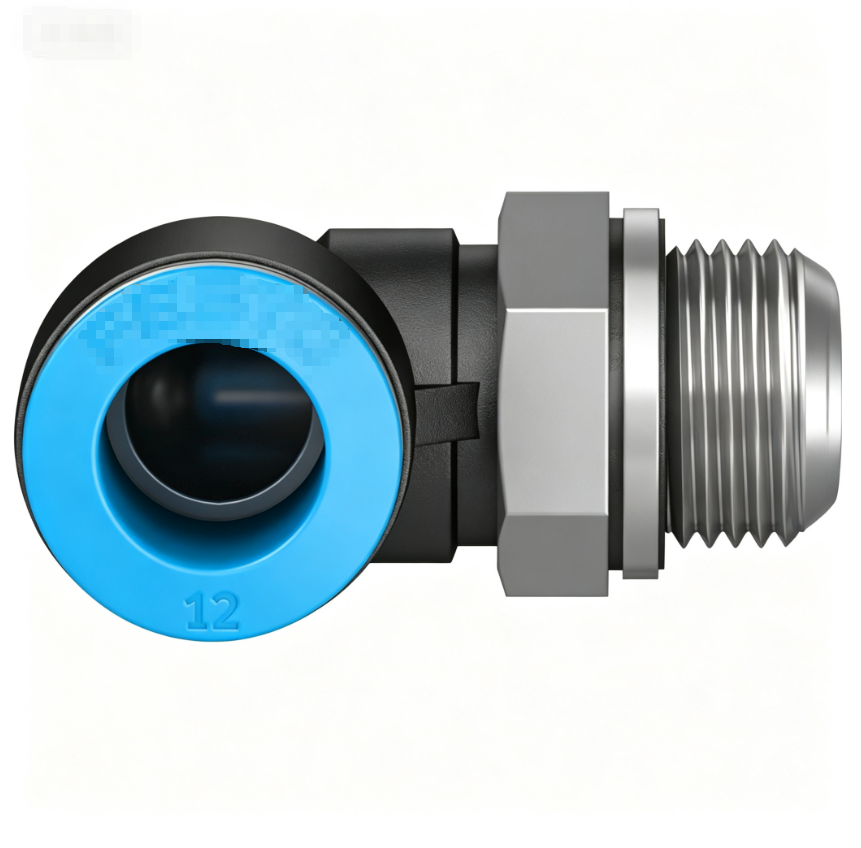

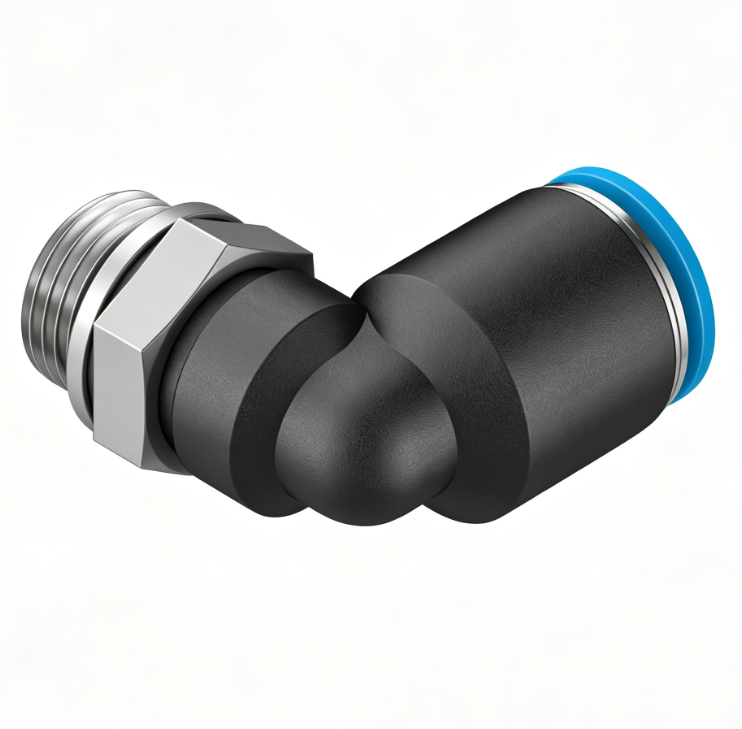

Festo QSL-G3/8-12 pneumatic elbow fitting, part number 186124, belongs to the classic QS Quick Star push-in series. It is a 90-degree L-shaped connector with G3/8 BSPP male thread and 12mm tube push-in port. Adopting push-pull quick connection structure, it enables tool-free, fast installation and disassembly of pneumatic hoses. The rotatable thread allows flexible angle adjustment during mounting for easier pipeline layout. With high-quality PBT housing, NBR sealing and stainless steel clamp ring, this fitting features stable airtightness, anti-leakage and long service life. Widely applied in automated pneumatic systems for pipe turning and directional connection.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | QSL-G3/8-12 |
| Part No. | 186124 |
| Product Series | QS Quick Star |
| Product Type | 90° L Push-in Elbow |
| Port 1 | G3/8 BSPP Male Thread |
| Port 2 | Push-in for 12mm OD Tube |
| Nominal Diameter | 10 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Ambient Temperature | -10 ~ +80 ℃ |
| Operating Medium | Compressed air / Ice-free water |
| Body Material | PBT |
| Release Ring Material | POM |
| Seal Material | NBR |
| Clamp Spring | High-alloy Stainless Steel |
| Thread Core Material | Nickel-plated Brass |
| Release Ring Color | Blue |
| Pack Quantity | 10 pcs/pack |
| Net Weight | 37 g/pc |
| RoHS Compliance | Yes |
| Feature | Push-in connection, rotatable thread |
| Application | Pneumatic Automation Circuit |
