PL20F 5308844

Attribute Name	Value
Brand	SICK
Model	PL20F
Part No.	5308844
Series	PL Series Fine Triple Reflector
Type	Fine Triple Retro-reflective Reflector for Laser Sensors
Shape	Rectangular, 2-hole screw mounting
Dimension	20mm × 60mm
Effective Reflective Area	16mm × 38mm
Material	PMMA/ABS
Operating Temp	-30℃ ~ +65℃
Reflection Principle	Fine triple corner cube retroreflection, stable signal even with light spot offset
Compatible Sensor	SICK retro-reflective laser photoelectric sensors, also fo

INQUIRY

Product Details

Product Tags

Product Overview

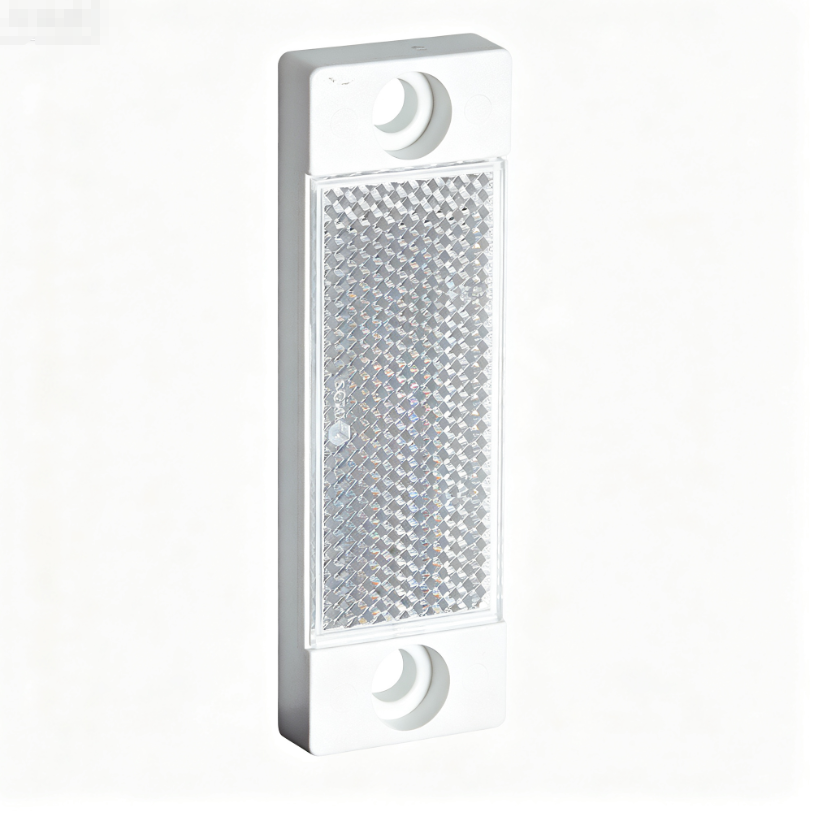

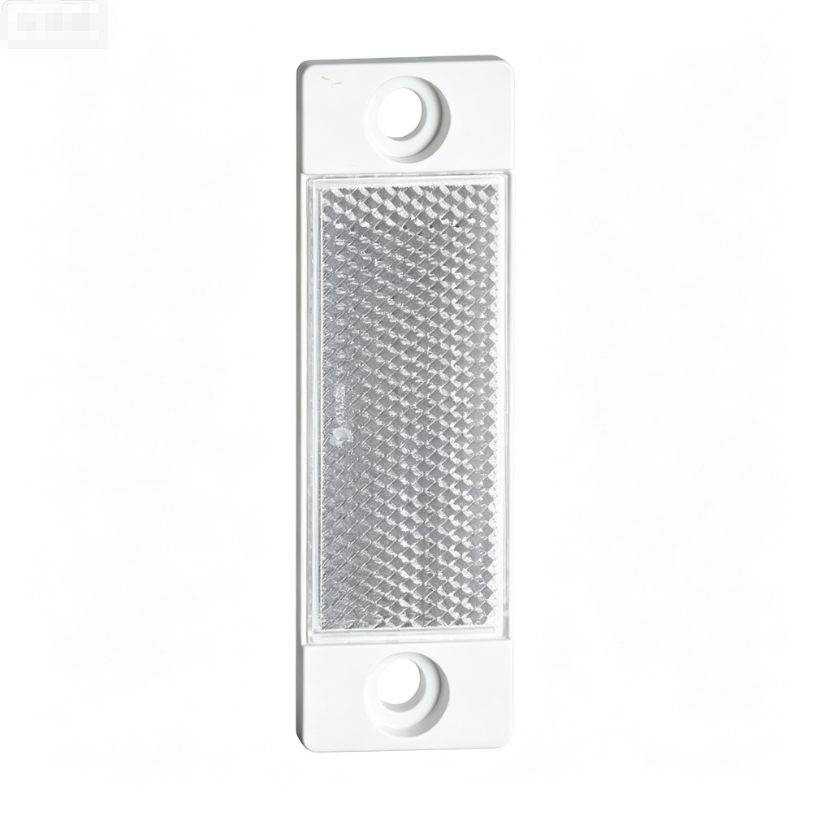

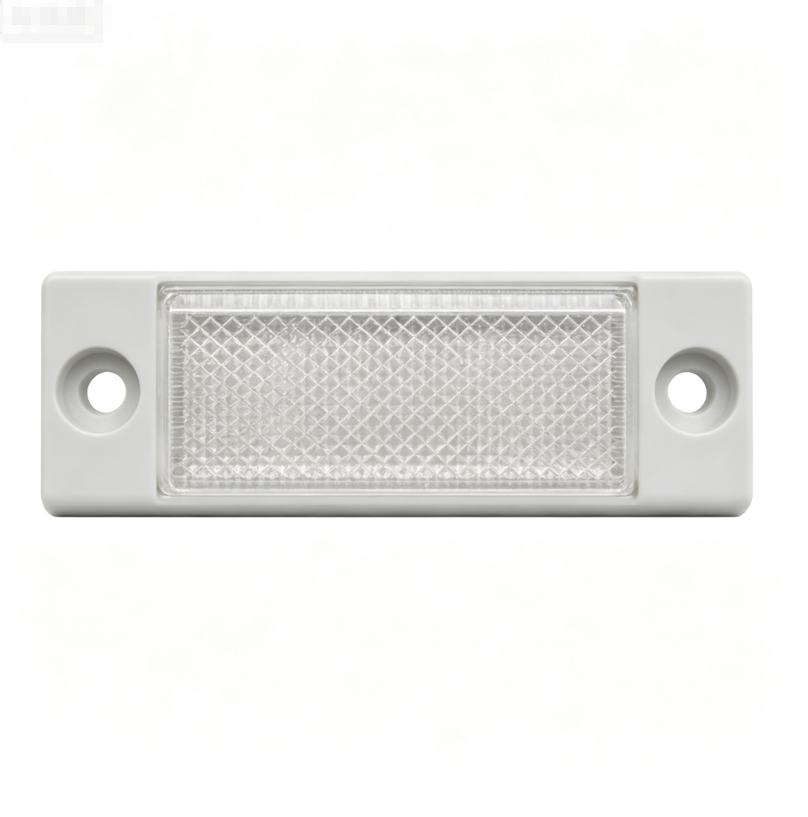

SICK PL20F (Part No.5308844) is Fine Triple retro-reflective reflector for SICK laser photoelectric sensors. Rectangular shape with 2 mounting holes, dimension 20mm × 60mm, effective reflective area 16mm × 38mm, made of PMMA/ABS material. Fine triple corner cube structure ensures stable return light even when laser spot drifts on reflector surface. Operating temperature range -30℃ ~ +65℃. It is optimized for laser retro-reflective sensors, and also works for LED photoelectric sensors to detect transparent objects. Widely used as accessory for conveyor, production line and logistics sorting detection.

Attribute Name	Value
Brand	SICK
Model	PL20F
Part No.	5308844
Series	PL Series Fine Triple Reflector
Type	Fine Triple Retro-reflective Reflector for Laser Sensors
Shape	Rectangular, 2-hole screw mounting
Dimension	20mm × 60mm
Effective Reflective Area	16mm × 38mm
Material	PMMA/ABS
Operating Temp	-30℃ ~ +65℃
Reflection Principle	Fine triple corner cube retroreflection, stable signal even with light spot offset
Compatible Sensor	SICK retro-reflective laser photoelectric sensors, also for transparent object detection with LED photoelectric sensors
Net Weight	0.03kg
Gross Weight	0.09kg
Origin	Germany
Warranty	1 year
Condition	New Original
Application	Matching reflector for laser photoelectric sensors, transparent object detection, logistics sorting, conveyor line, machine position sensing
