PEV-W-KL-LED-GH
Product Overview

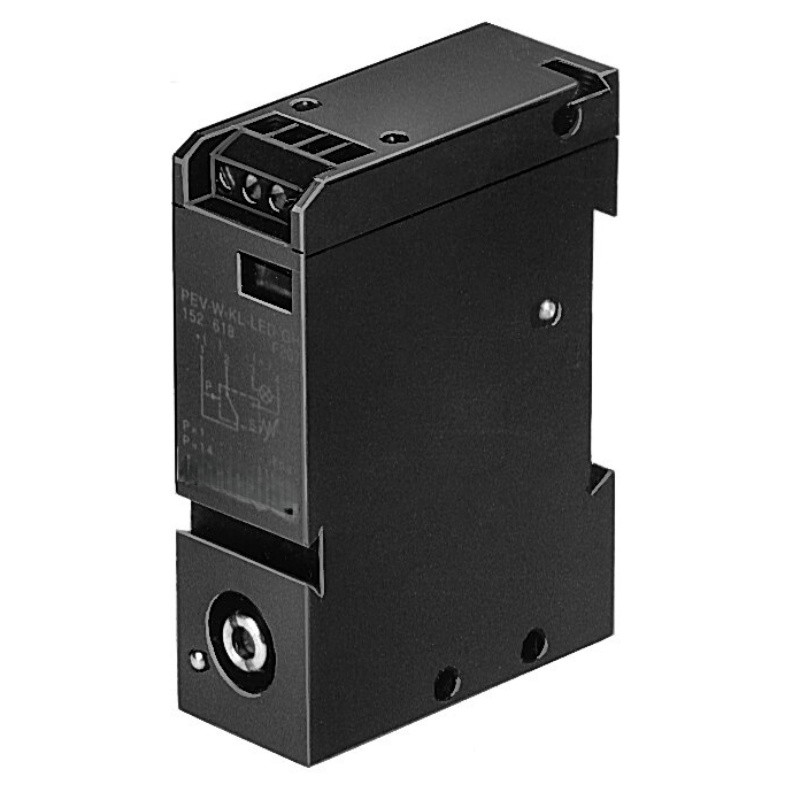

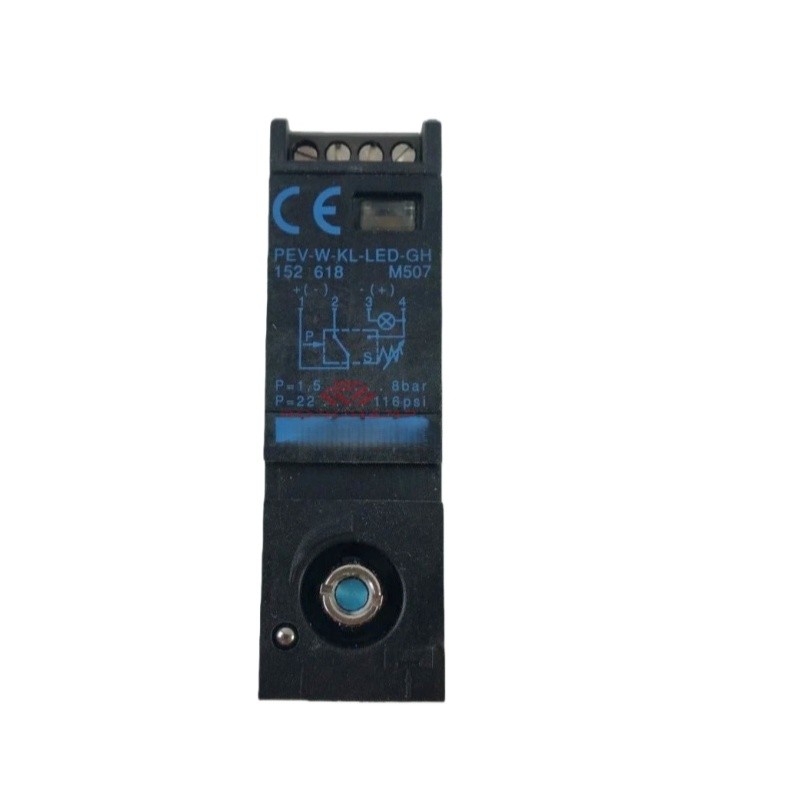

FESTO PEV-W-KL-LED-GH belongs to PEV-W series mechanical pressure switch. It is equipped with M5 pneumatic port, adjustable switching threshold from 2 to 8 bar and adjustable hysteresis 0.5~2 bar. SPDT changeover contact, working voltage DC10~30V, max output current 2500mA. Yellow LED shows switching status. KL version uses 4-pin screw terminal wiring; GH supports DIN H rail installation or through-hole panel mounting. Diaphragm sensing structure, overload pressure up to 20 bar. LABS(PWIS) compliant, suitable for paint workshop and general automation. Compact lightweight design, widely used for pressure supervision and signal interlock in pneumatic systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PEV-W-KL-LED-GH |
| Order No. | 152618 |
| Product Series | PEV-W |
| Product Type | Pneumatic Pressure Switch / Pressure Monitoring Switch |
| Measured Pressure | Relative pressure |
| Pneumatic Port | M5 |
| Setting Range | 2 ~ 8 bar |
| Hysteresis | 0.5 ~ 2 bar adjustable |
| Switching Element | Changeover contact (SPDT) |
| Operating Voltage | DC 10 ~ 30 V |
| Max Switching Current | 2500 mA |
| Max Switching Frequency | 3 Hz |
| Electrical Connection | 4-pin screw terminal |
| Indication | Yellow LED for switching status |
| Overload Pressure | Max 20 bar |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Housing Material | PA, PET, POM |
| Diaphragm Material | NBR |
| Feature | KL：screw terminal；LED：yellow status indicator；GH：H-rail / DIN rail mounting, LABS(PWIS) compliant VDMA24364 |
| Mounting | DIN H rail mounting or through-hole panel mounting |
| Corrosion Resistance Class | CRC 2 |
| Weight | 56 g |
| Certificate | CE, RoHS, RCM |
| Origin | Germany |
| Condition | New Original |
