QSML-M5-4
Product Overview

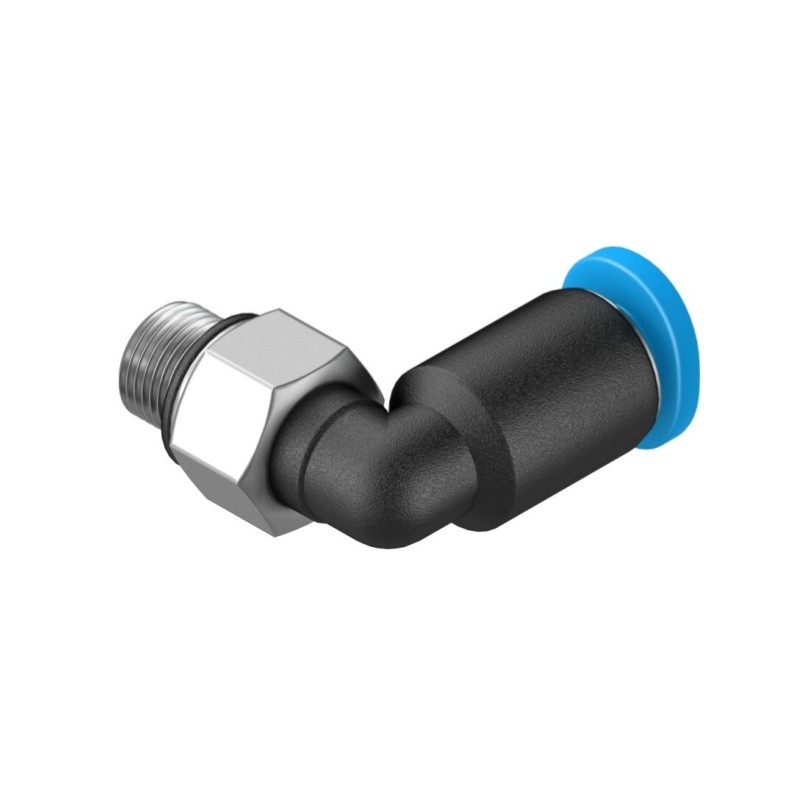

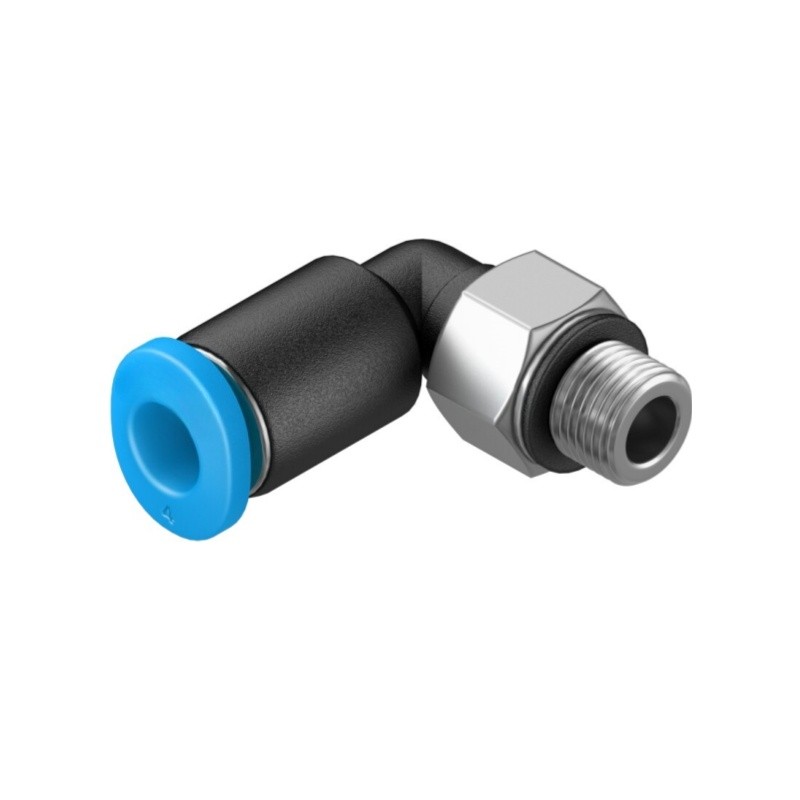

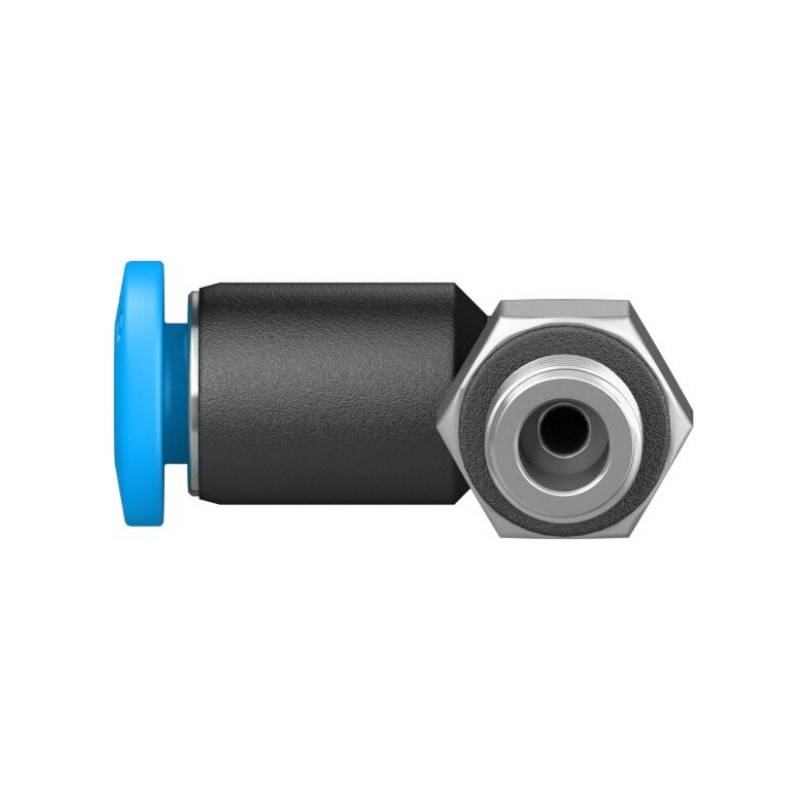

QSML-M5-4 (Part No.186161) is Festo QSML series compact mini L-shape push-in pneumatic fitting. It adopts push-pull quick connection principle, one end is M5 male thread, the other end is for 4mm outer diameter pneumatic tubing. Mini size design, easy to assemble and disassemble, widely used for compressed air pipeline connection in miniature pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSML-M5-4 |
| Part No. | 186161 |
| Product Type | Pneumatic Mini Push-in Fitting / L-fitting |
| Series | QSML |
| Port 1 | Male thread M5 |
| Port 2 | For tubing OD 4 mm |
| Nominal Width | 2.8 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Nominal Tightening Torque | 1.2 Nm (±20%) |
| Design | L-shape, push-pull principle |
| Mounting Position | Optional |
| Release Ring Color | Blue |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:-:-], ice-free water |
| Ambient Temperature | -10 ~ +80 ℃ |
| Housing Material | PBT |
| Screw Plug | Nickel-plated brass |
| Release Ring Material | POM |
| Tubing Seal Material | NBR |
| Clamping Element | High-alloy stainless steel |
| CRC Corrosion Class | CRC1 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.005 kg |
| Gross Weight | 0.01 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Mini pneumatic circuit, small automation, pneumatic tubing connection |
