QSLF-1/4-8-B
Product Overview

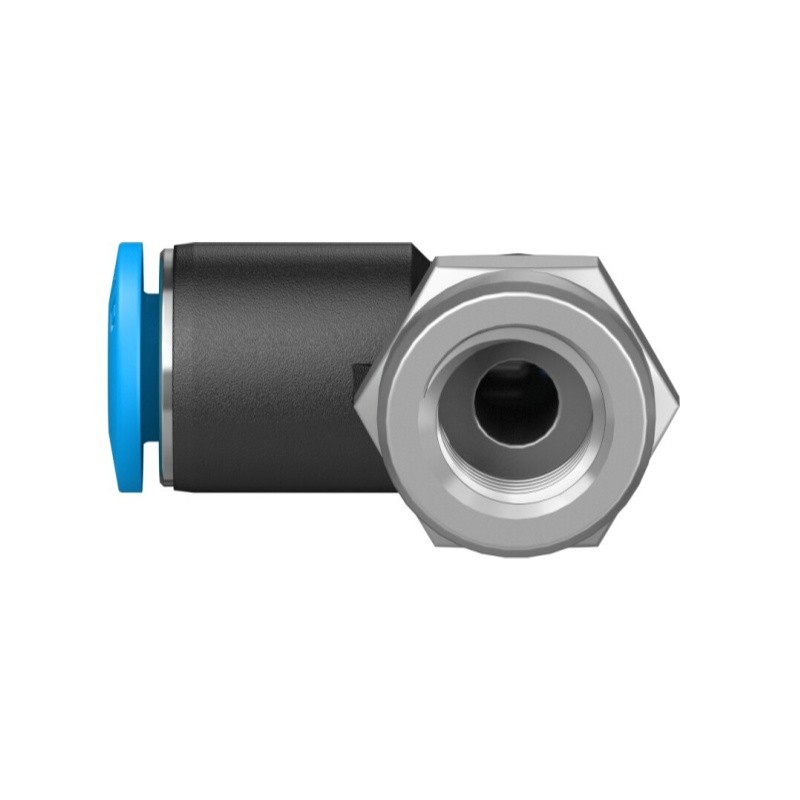

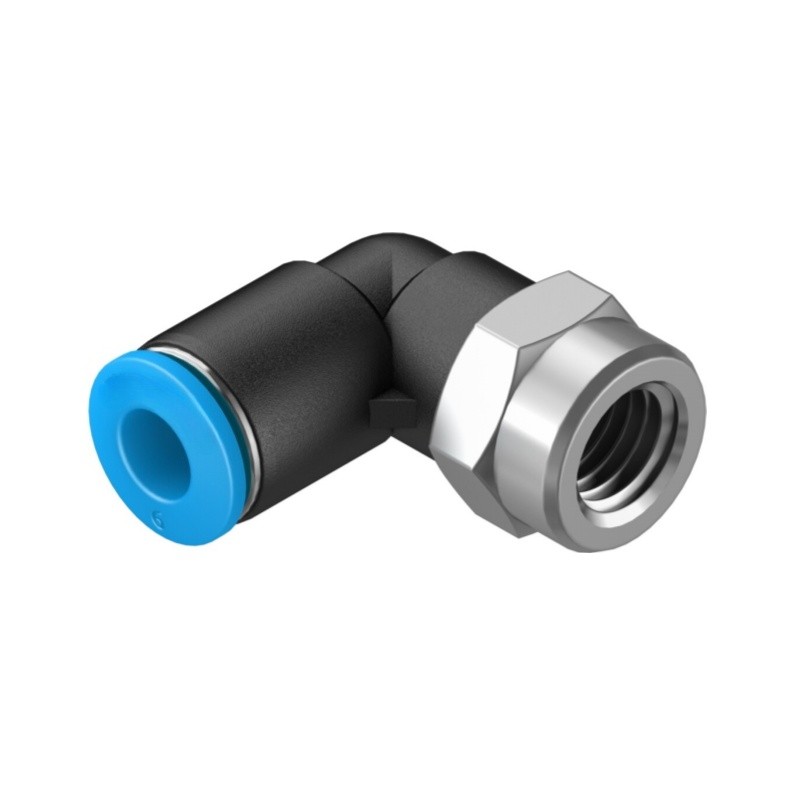

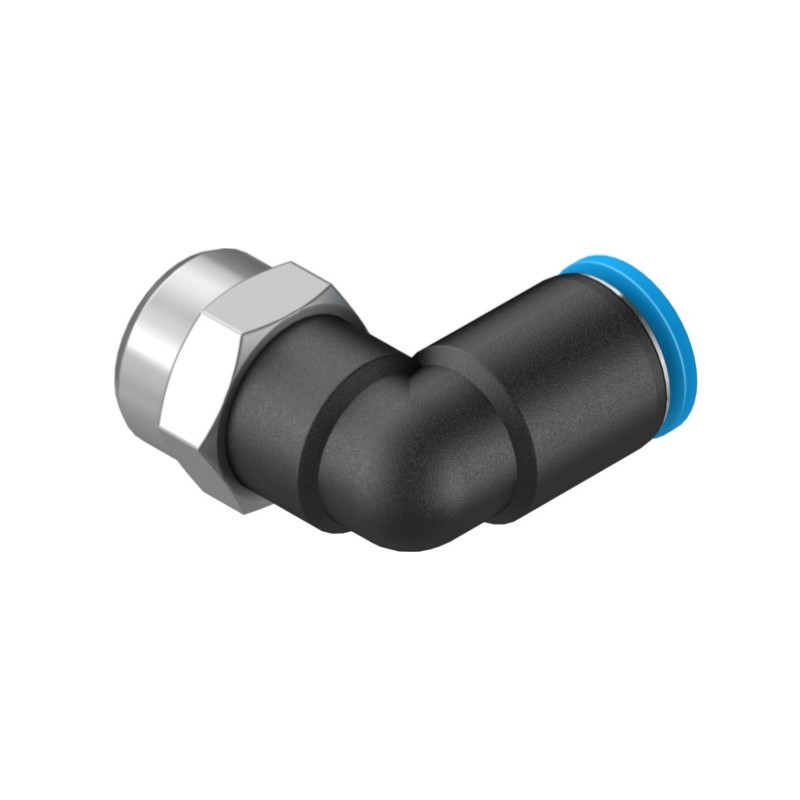

QSLF-1/4-8-B (Part No.153277) is Festo QS series L-shape push-in pneumatic fitting. It adopts push-pull quick connection principle, one end is G1/4 female thread, the other end is for 8mm outer diameter pneumatic tubing. It is suitable for cleanroom environment ISO Class4. Easy to assemble and disassemble, widely used for compressed air pipeline connection in pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSLF-1/4-8-B |
| Part No. | 153277 |
| Product Type | Pneumatic Push-in Fitting / L-fitting |
| Series | QS |
| Port 1 | Female thread G1/4 |
| Port 2 | For tubing OD 8 mm |
| Nominal Width | 5.8 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Nominal Tightening Torque | 11 Nm (±20%) |
| Design | L-shape, push-pull principle |
| Mounting Position | Optional |
| Release Ring Color | Blue |
| Hex Size | SW17 |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:-:-], ice-free water |
| Ambient Temperature | -10 ~ +80 ℃ |
| Housing Material | PBT |
| Screw Plug | Nickel-plated brass |
| Release Ring Material | POM |
| Tubing Seal Material | NBR |
| Clamping Element | High-alloy stainless steel |
| CRC Corrosion Class | CRC1 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Cleanroom Class | ISO 14644-1 Class 4 |
| Net Weight | 0.024 kg |
| Gross Weight | 0.03 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Pneumatic tubing connection, automation pneumatic circuit, cleanroom equipment |
