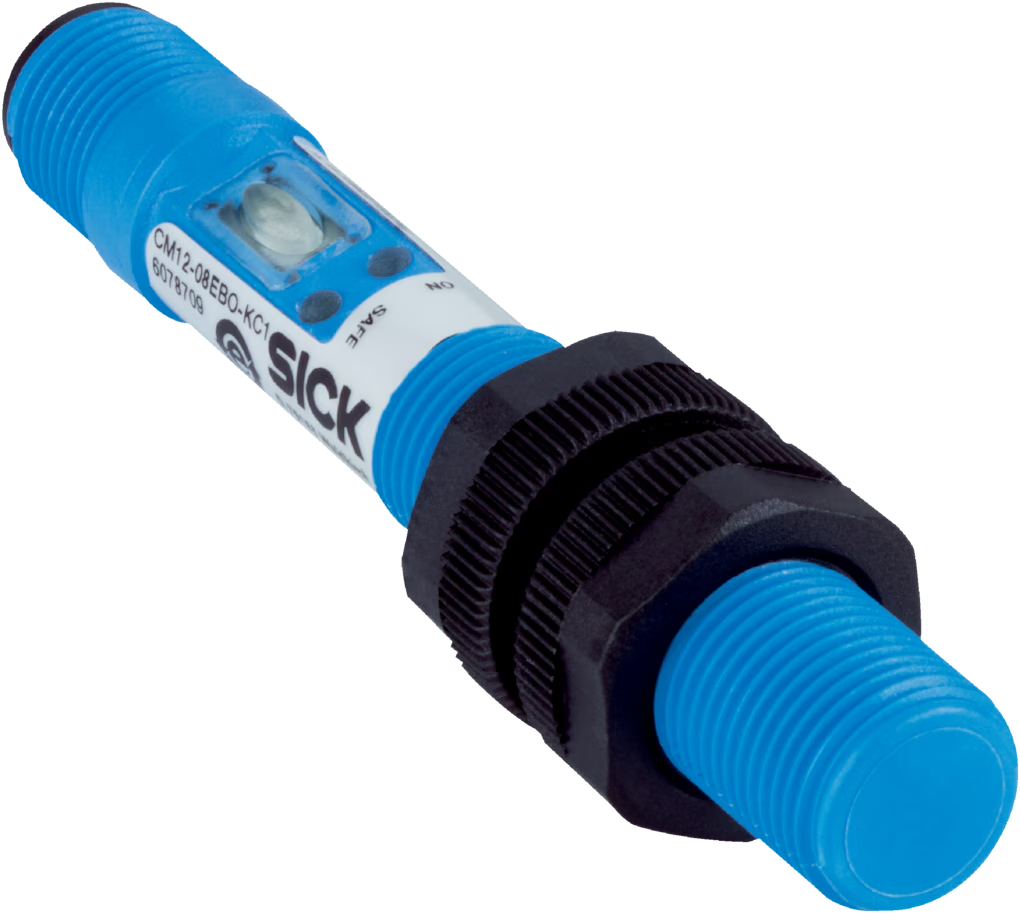

CM12-08EBO-KC1 6078709
Product Overview
New original SICK CM12-08EBO-KC1 capacitive proximity sensor, PN 6078709, CM series M12 threaded sensor. Sensing range 0.5~8mm, wire configurable PNP/NPN output with factory setting NC, 10-36VDC power supply. It adopts M12 4-pin male connector and IP68 protection grade. It features teach-in function and excellent EMC performance. Working temperature ranges from -20℃ to +85℃. Widely used for material level detection, object counting and position monitoring on packaging and conveyor automation lines. We supply genuine SICK sensors with fast delivery and professional after-sales support.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CM12-08EBO-KC1 |
| Part No. | 6078709 |
| Series | CM |
| Sensor type | Capacitive proximity sensor |
| Sensing distance | 0.5 ~ 8 mm |
| Installation | Flush / Non-flush mount |
| Output type | PNP/NPN, wire configurable, factory NC |
| Wiring | DC 4-wire |
| Connection | M12 male, 4-pin |
| Supply voltage | 10–36 V DC |
| Max switching current | 200 mA |
| Switching frequency | 15 Hz |
| IP rating | IP68 |
| Housing material | PBT plastic |
| Operating temperature | -20 ℃ ~ +85 ℃ |
| Feature | Teach-in function, high EMC, wire configurable output |
| Weight(net) | 0.07 kg |
| Weight(gross) | 0.13 kg |
| Certificate | RoHS |
