CM12-08EBP-KW1 6051029

属性名	属性值
Brand	SICK
Model	CM12-08EBP-KW1
Part No.	60581029
Series	CM
Sensor type	Capacitive proximity sensor
Sensing distance	0.5 ~ 8 mm
Installation	Flush / Non-flush mount
Output type	Wire configurable, PNP/NPN
Wiring	DC 4-wire
Connection	2m 4-core PVC cable
Supply voltage	10–36 V DC
Max switching current	200 mA
Switching frequency	15 Hz
IP rating	IP68
Housing material	PBT plastic
Operating temperature	-20 ℃ ~ +85 ℃
Feature	Teach-in function, high EMC, wire configurable output

INQUIRY

Product Details

Product Tags

Product Overview

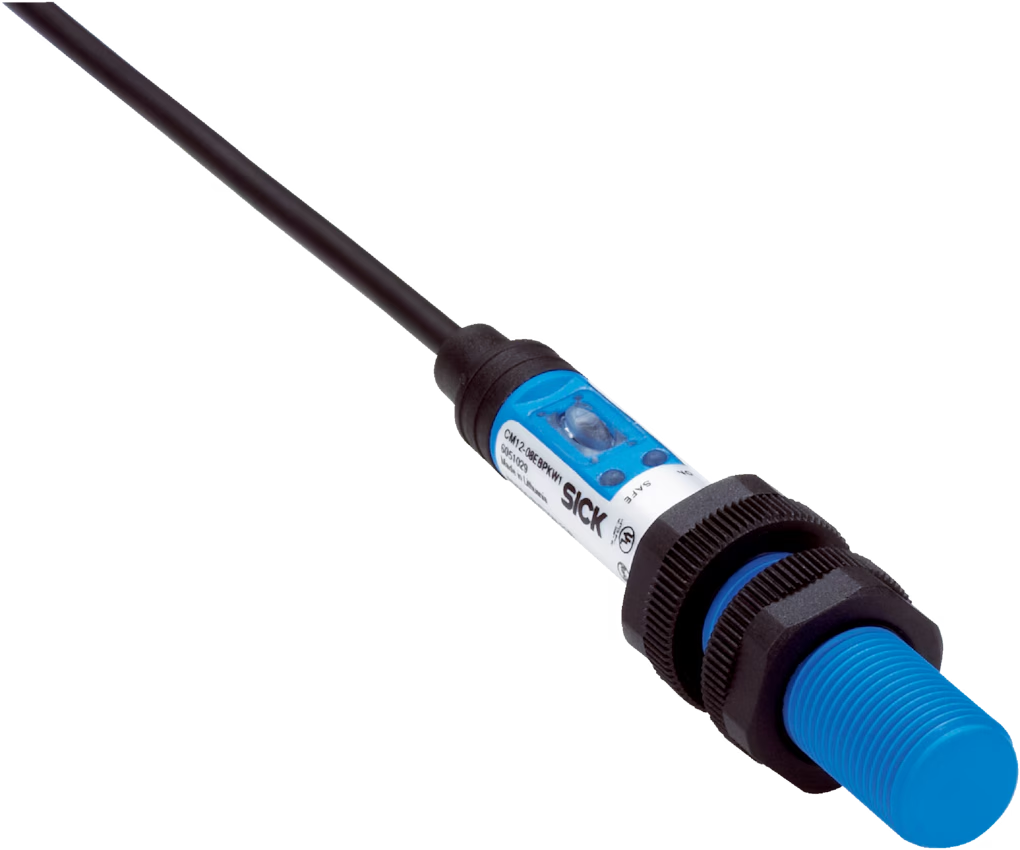

New original SICK CM12-08EBP-KW1 capacitive proximity sensor, PN 6051029, CM series M12 threaded sensor. Sensing range 0.5~8mm, wire configurable PNP/NPN output, 10-36VDC power supply. It comes with 2m 4-core PVC cable and IP68 protection grade. It features teach-in function and excellent EMC performance. Working temperature ranges from -02℃ ~ +85℃. Suitable for material level detection and object counting on packaging and conveyor automation lines. We supply genuine SICK sensors with fast delivery and professional after-sales support.

属性名	属性值
Brand	SICK
Model	CM12-08EBP-KW1
Part No.	60581029
Series	CM
Sensor type	Capacitive proximity sensor
Sensing distance	0.5 ~ 8 mm
Installation	Flush / Non-flush mount
Output type	Wire configurable, PNP/NPN
Wiring	DC 4-wire
Connection	2m 4-core PVC cable
Supply voltage	10–36 V DC
Max switching current	200 mA
Switching frequency	15 Hz
IP rating	IP68
Housing material	PBT plastic
Operating temperature	-20 ℃ ~ +85 ℃
Feature	Teach-in function, high EMC, wire configurable output
Weight(net)	0.07 kg
Weight(gross)	0.13 kg
Certificate	RoHS
