H-1/8-A/I

属性名称	属性值
Brand	Festo
Model	H-1/8-A/I
Part No	3324
Product Type	Check Valve / Non-Return Valve
Series	H Series
Valve Function	Non-return one-way function
Pneumatic Port 1	G1/8
Pneumatic Port 2	G1/8
Operating Pressure	0.04 ~ 0.8 MPa (0.4 ~ 8 bar)
Nominal Flow Rate	280 L/min (DIN1343)
Medium	Compressed air ISO 8573-1:2010 [7:-:-], lubricated air available
Ambient Temperature	-10 ~ +60 ℃
Media Temperature	-10 ~ +60 ℃
Mounting	In-line inline installation, any mounting position
Housing

INQUIRY

Product Details

Product Tags

Product Description

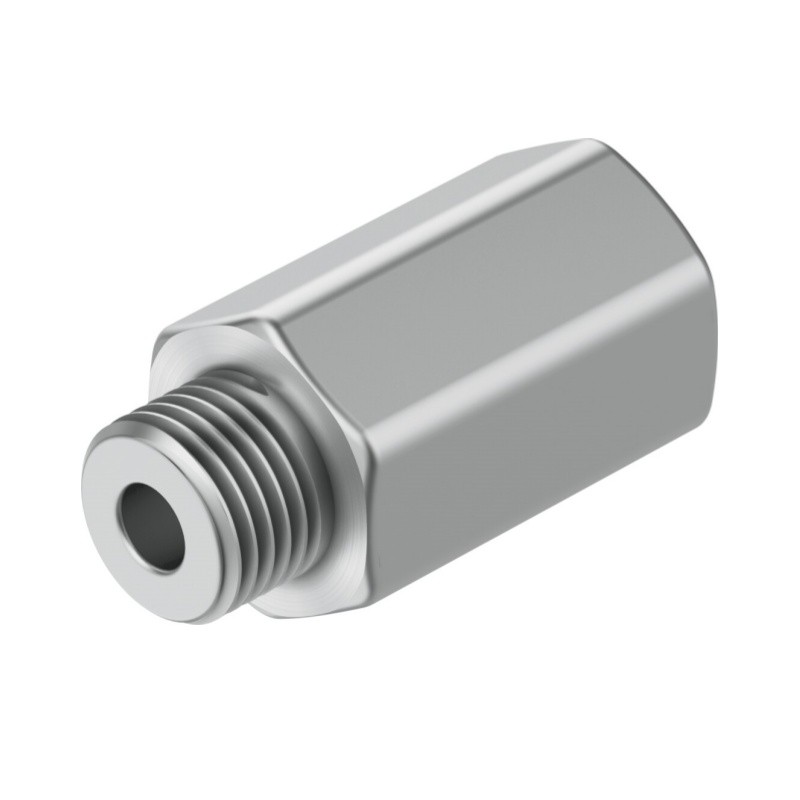

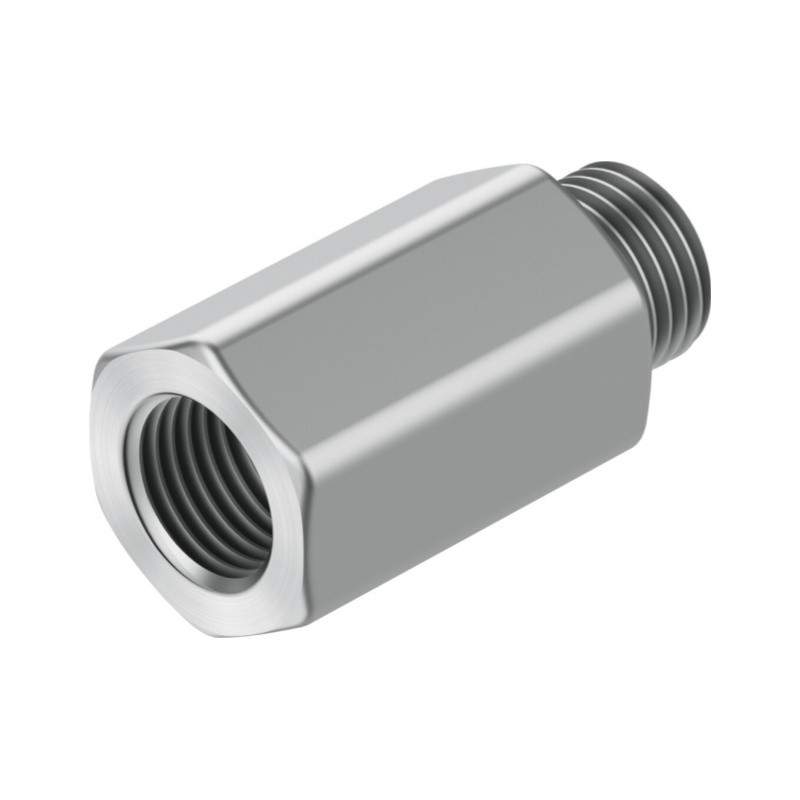

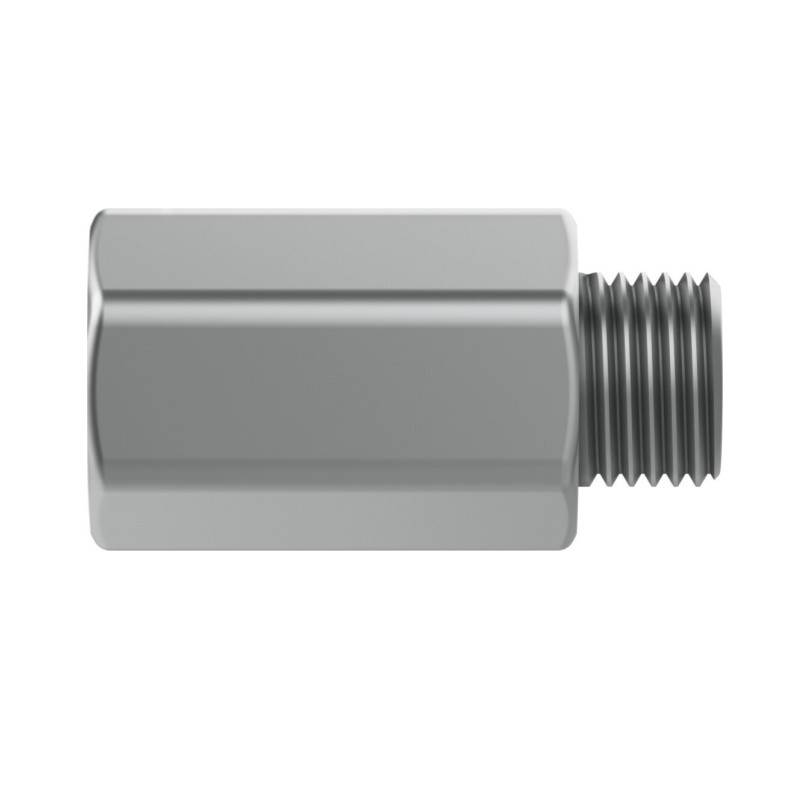

Festo H-1/8-A/I (Part No.3324) is H series inline brass check valve with G1/8 threads on both ends. It is a simple one-way valve allowing air flow in one direction and blocking reverse flow automatically.

It can be installed directly in pneumatic pipelines to avoid backflow and maintain pressure in circuits. Compact brass body with NBR seal ensures stable sealing performance. Suitable for general compressed air circuits, also compatible with lubricated compressed air. Widely used for pressure retention and circuit protection in automation equipment.

Item	Specification
Brand	Festo
Model	H-1/8-A/I
Part Number	3324
Type	Check / Non-return valve
Series	H
Valve Function	One-way non-return
Pneumatic Port	G1/8 both ends
Operating Pressure	0.04 ~0.8 MPa
Nominal Flow	280 L/min
Medium	Compressed air ISO8573-1 [7:-:-]
Ambient Temp	-10 ~ +60 ℃
Weight	21.00 g
Material	Brass housing, NBR seal
Corrosion Class	CRC1
Standard	LABS, RoHS
