573482 VUVG-B14-M52-AZT-F-1T1L
Product Overview

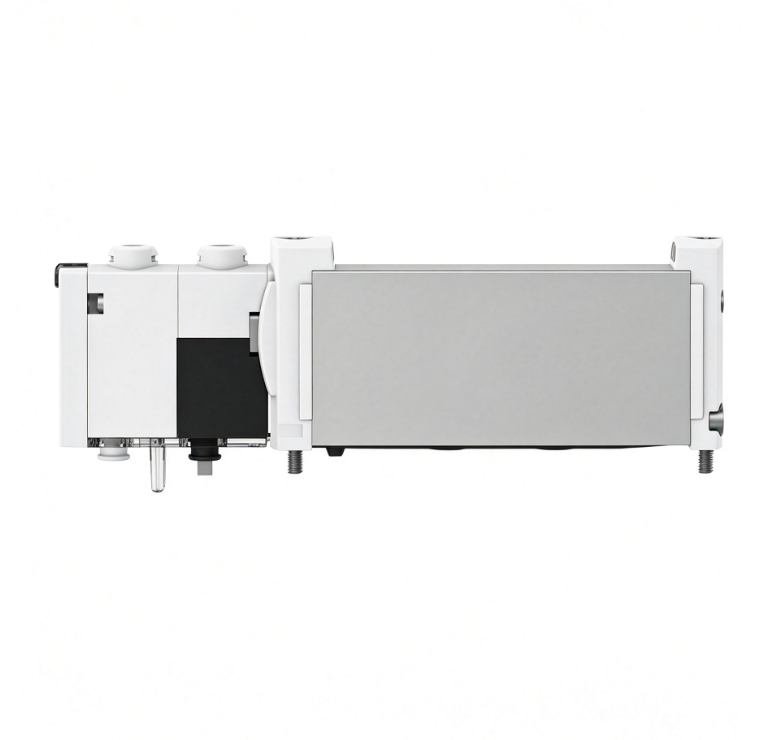

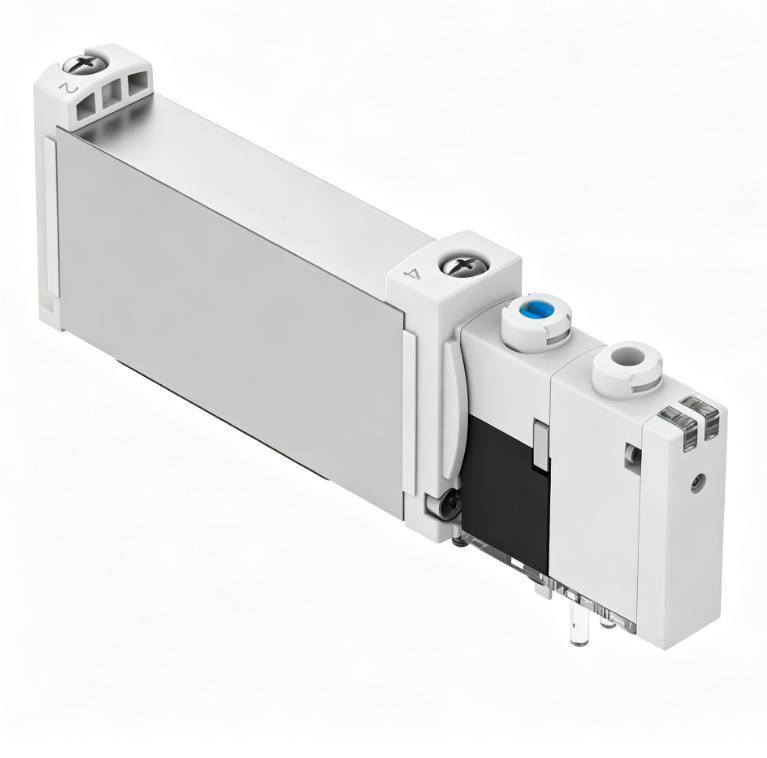

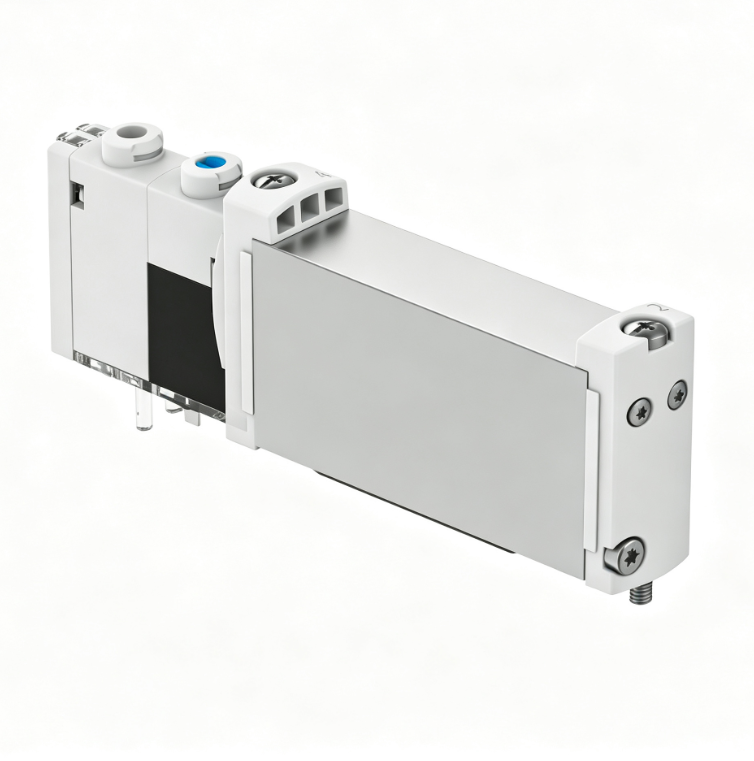

VUVG-B14-M52-AZT-F-1T1L (Part No.573482) is Festo VUVG series compact 5/2-way single solenoid pneumatic control valve. Operating voltage 24V DC, B14 size configuration with FKM fluororubber seal. Equipped with AZT solenoid coil and 1T1L electrical plug connector. It delivers high air flow rate and rapid switching response. Working pressure 0.2~10 bar, ambient temperature -5~50℃. CE & RoHS compliant. Widely adopted to control pneumatic cylinders and other actuators in automated production machinery.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | VUVG-B14-M52-AZT-F-1T1L |
| MPN | 573482 |
| Product Type | Solenoid Valve, Pneumatic Control Valve |
| Series | VUVG Series |
| Valve Function | 5/2-way, single solenoid |
| Supply Voltage | 24V DC |
| Valve Size | B14 |
| Seal Type | F: FKM fluororubber seal |
| Working Medium | Compressed air (ISO 8573-1:2010) |
| Working Pressure | 0.2 ~ 10 bar |
| Ambient Temperature | -5 ~ 50 ℃ |
| Feature | High flow compact solenoid valve, AZT coil, 1T1L plug connection, FKM seal, fast switching response |
| Compliance | RoHS compliant, CE certified |
| Application | Pneumatic actuator control, automation machine, valve terminal single valve |
