QS-3/8-16
Product Overview

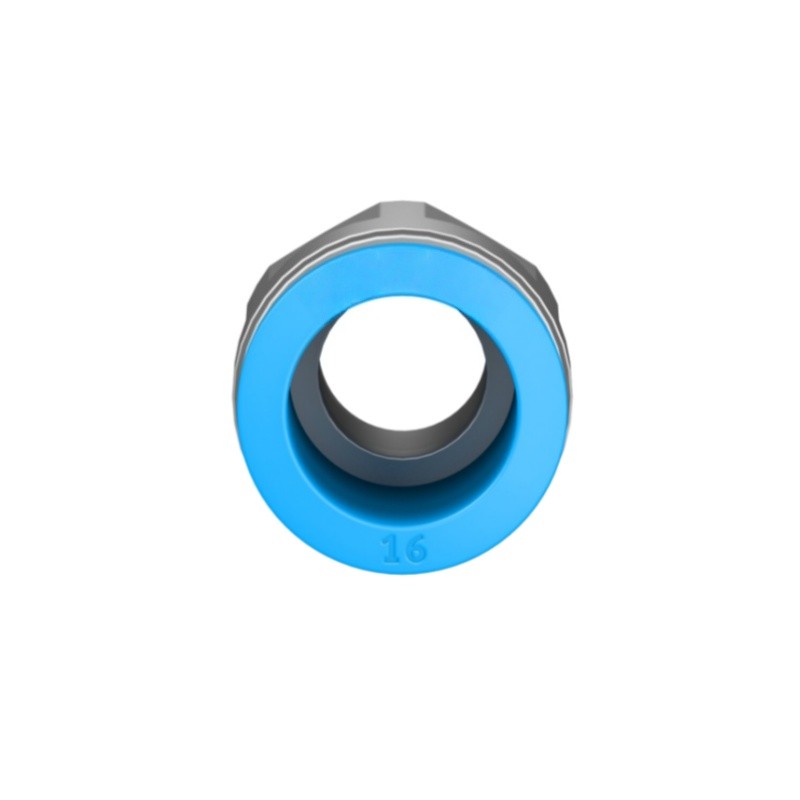

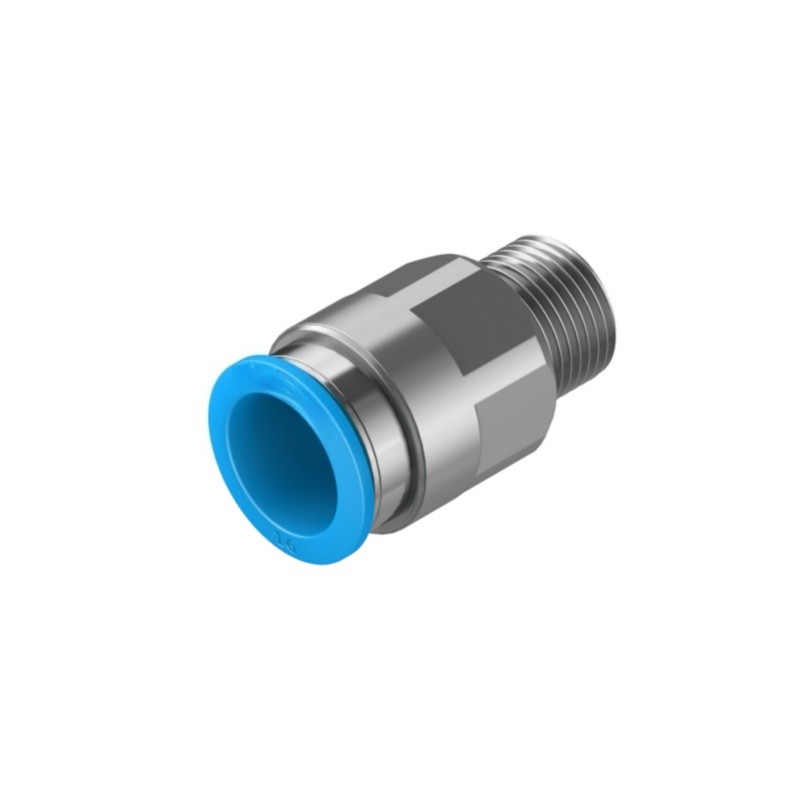

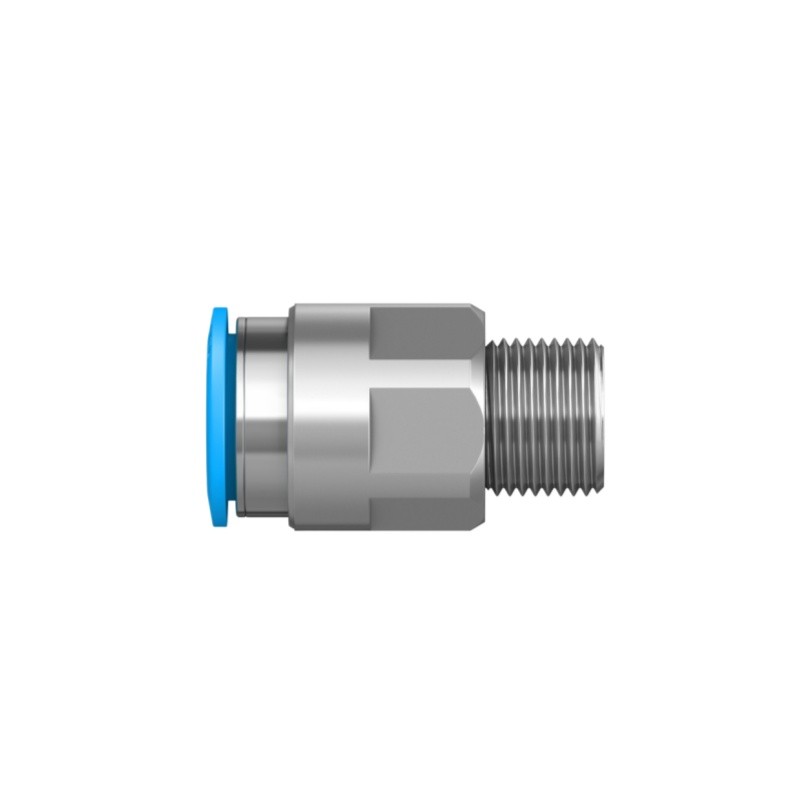

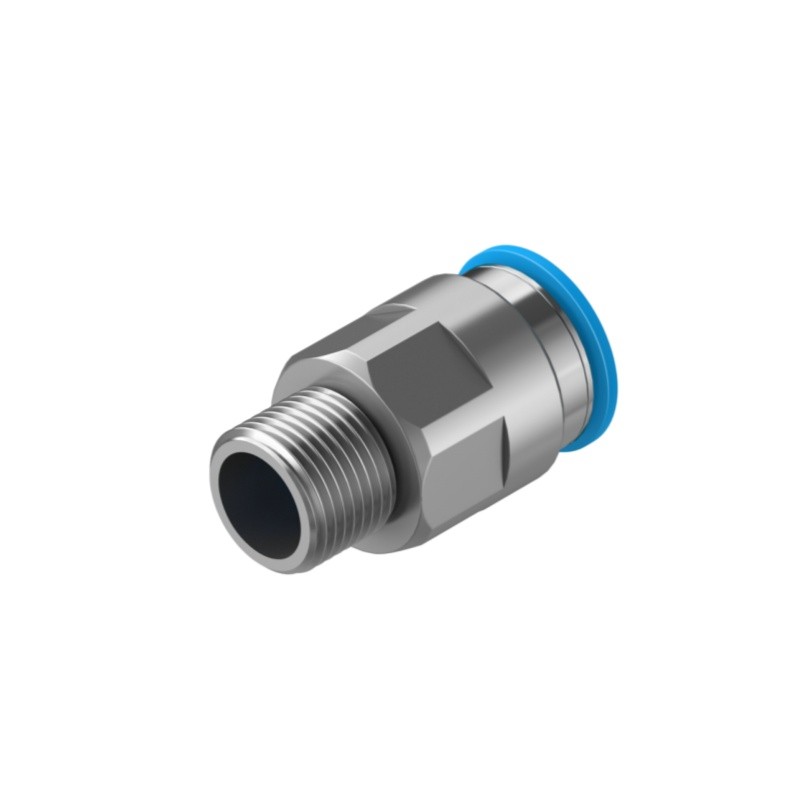

QS-3/8-16 (Part No.164957) is Festo QS series straight male thread push-in pneumatic fitting. It features R3/8" external male thread and connects to 16mm OD pneumatic tube. PBT housing, POM release ring, NBR seal and high-alloy stainless steel clamping element. Working pressure -0.95~14 bar, ambient temperature -10~80℃. Push-pull quick connect design, tool-free assembly and disassembly. Compact structure, reliable sealing, RoHS compliant. Widely used for connecting threaded port and air tube in compressed air pipelines of industrial automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QS-3/8-16 |
| MPN | 164957 |
| Product Type | Pneumatic Push-in Fitting |
| Series | QS Series |
| Structure | Straight Male Thread Push-in Connector |
| Connection | R3/8" external male thread, for 16mm OD pneumatic tube |
| Nominal Diameter | 11 mm |
| Working Medium | Compressed air |
| Working Pressure | -0.95 ~ 14 bar |
| Ambient Temperature | -10 ~ 80 ℃ |
| Housing Material | PBT |
| Release Ring Material | POM |
| Seal Material | NBR |
| Clamp Element | High-alloy Stainless Steel |
| Color | Blue Release Ring |
| Weight | 50.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connect, RoHS compliant, straight male thread fitting |
| Corrosion Resistance Class | CRC 1 |
| Application | Pneumatic Automation System |
