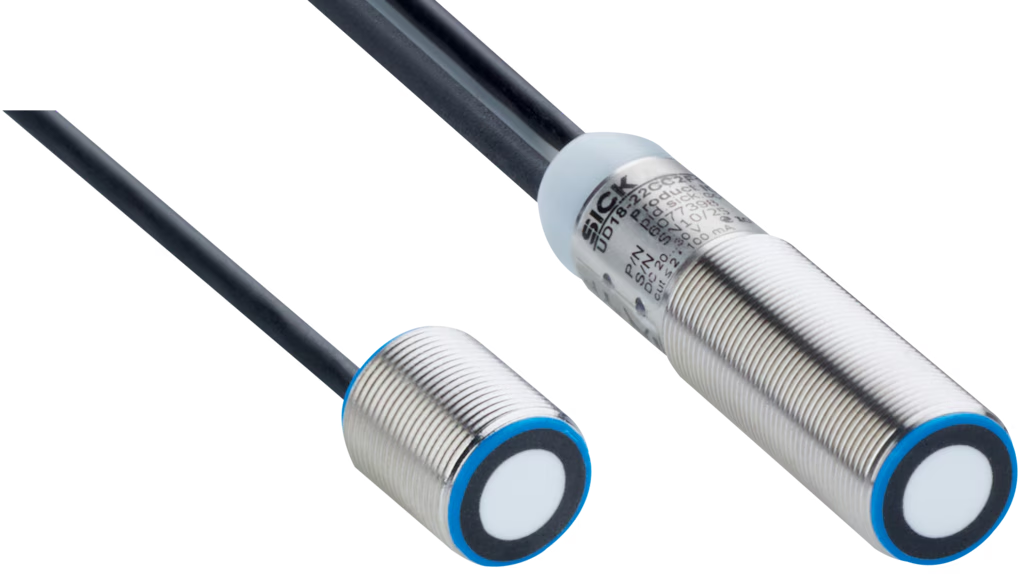

UD18-22CC2F1
Product Details
The SICK UD18-22CC2F1 is a brand-new original ultrasonic distance sensor from the UD18 series. It operates at 400 kHz ultrasonic frequency and runs on 20–30 V DC power supply, featuring push-pull PNP/NPN output and switchable Light-ON / Dark-ON function for easy integration with industrial automation controllers. It has an IP65 protection rating to guard against dust and moisture, working reliably within ambient temperature of +5℃ ~ +60℃.
This sensor adopts nickel-plated brass metal combined with PBT plastic cylindrical M18 threaded housing. It is equipped with a 7-core 2m PUR open cable for convenient wiring. The sensing range is 20mm to 60mm with a 7mm blind zone, well-suited for thin material and label detection.
It is widely used for label and thin object detection on packaging machinery and conveyor automated production lines. Each unit undergoes strict pre-shipment quality inspection and comes with CE certification. We supply genuine SICK sensors with MOQ of 1 piece and provide stable global shipping services to meet your factory automation demands.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | UD18-22CC2F1 |
| Product Name | Ultrasonic Sensor |
| Product Type | Ultrasonic Distance Sensor |
| Series | UD18 Series |
| Working Principle | Ultrasonic detection |
| Frequency | 400 kHz |
| Housing Material | Nickel-plated brass metal + PBT plastic |
| Shape | Cylindrical M18 threaded |
| Connection | 7-core 2m PUR open cable |
| Output Type | Push-pull PNP/NPN, Light-ON / Dark-ON switchable |
| Supply Voltage | 20 … 30 V DC |
| IP Rating | IP65 |
| Ambient Temperature | +5℃ ~ +60℃ |
| Sensing Range | 20mm ~ 60mm |
| Blind zone | 7mm |
| Net Weight | 0.16 kg |
| Gross Weight | 0.21 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Thin material detection, label detection, packaging machinery, conveyor automation |
| Certificate | CE |
| MOQ | 1 Piece |
