QSF-1/4-4-B
Product Overview

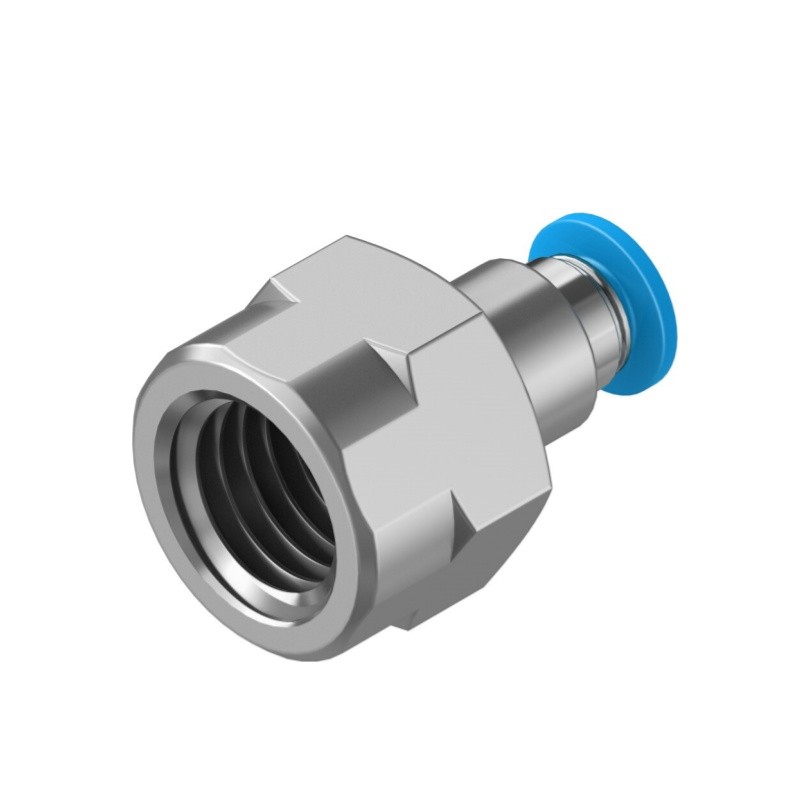

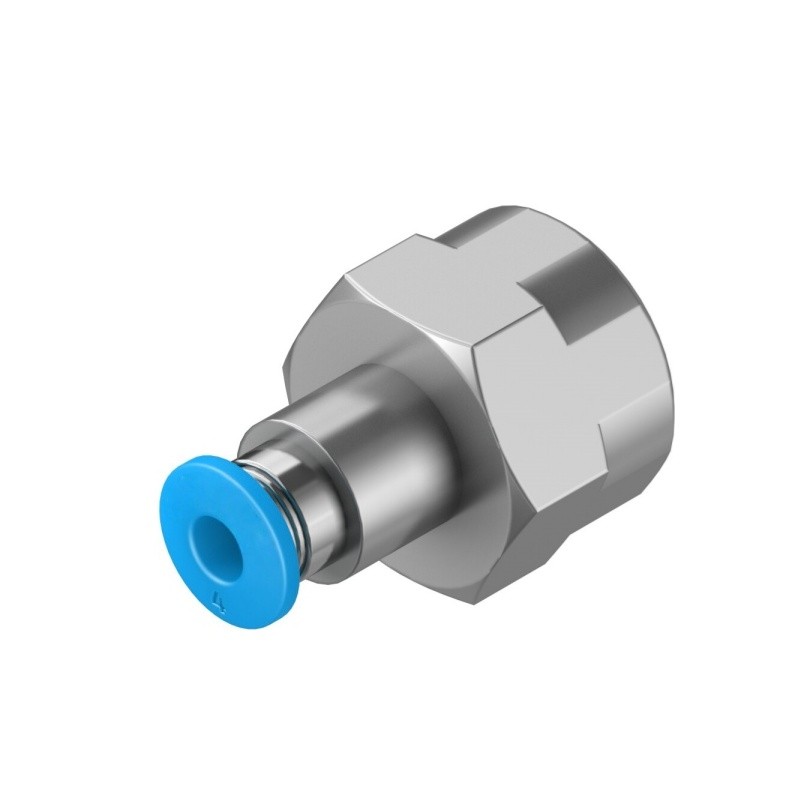

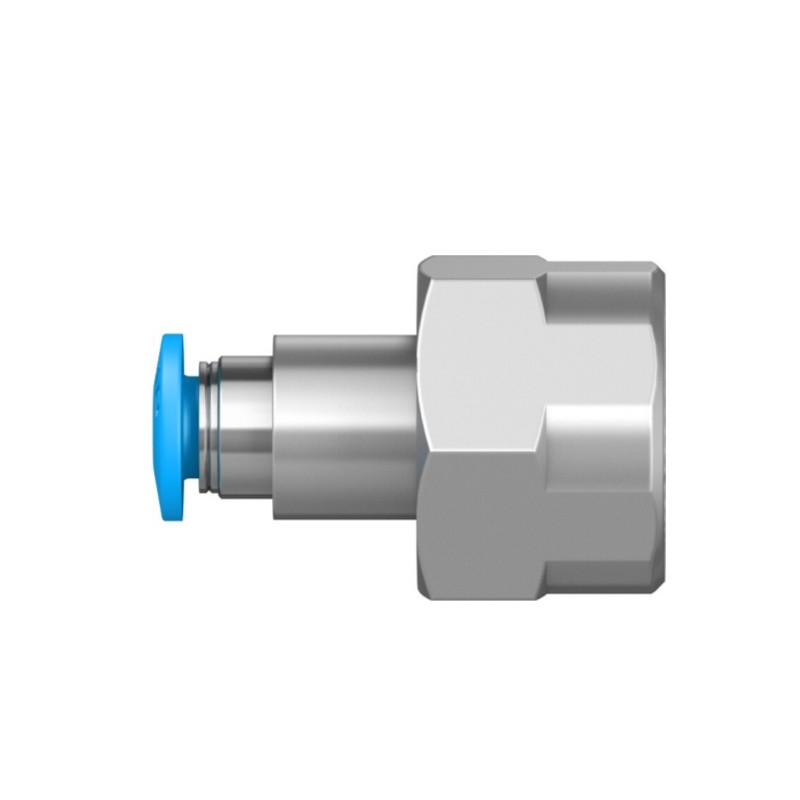

QSF-1/4-4-B, Part No.153264, belongs to Festo QS series straight push-in fitting with internal thread. It adopts push-pull quick connection principle, connects G1/4 female parallel thread port with 4mm OD pneumatic tube. The tube can be inserted and removed rapidly without tools. Compact structure and reliable sealing performance, widely used for branch connection of miniature pneumatic circuits on automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSF-1/4-4-B |
| Part No. | 153264 |
| Type | Straight push-in fitting, female thread |
| Thread | G1/4 female parallel thread |
| Tube OD | 4 mm |
| Nominal bore | 2.5 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Seal:NBR,Release ring:POM,Tube retainer:High-alloy stainless steel |
| Weight | 5.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, G female thread, compact design |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
