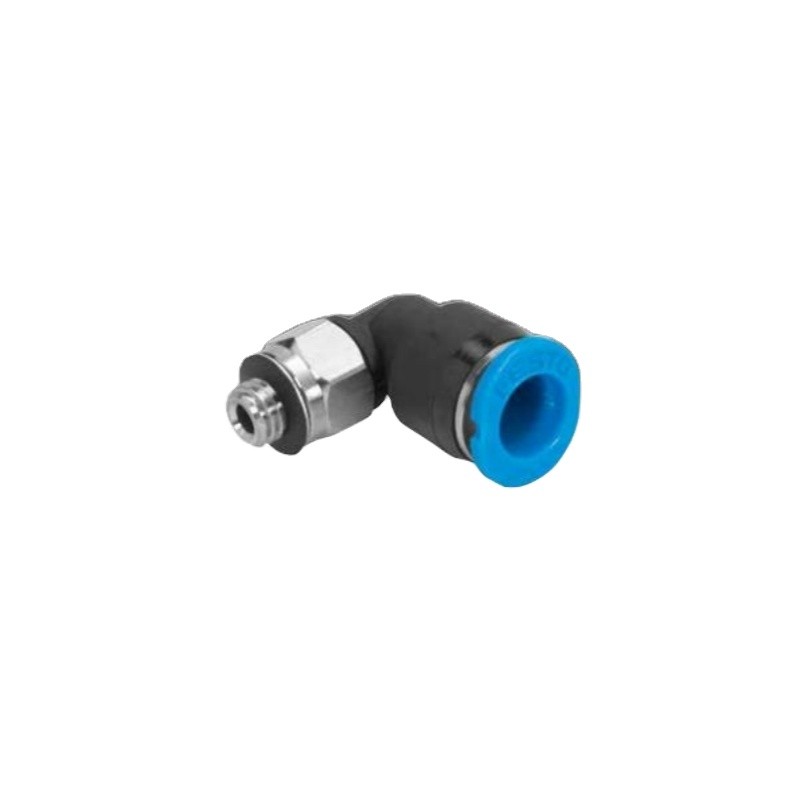

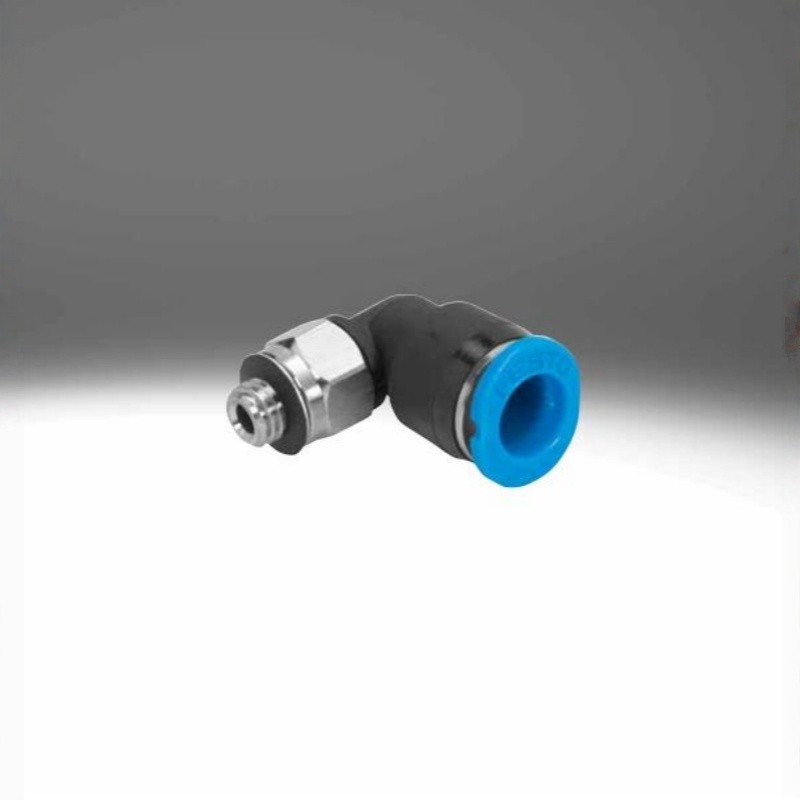

QSMLV-M5-4-I
Product Overview
QSMLV-M5-4-I, Part No.130831, is Festo Mini series L-type push-in fitting with 360° rotatable design. It adopts push-pull connection principle, M5 male thread connects to 4mm OD pneumatic tube. Built-in hex socket for easy installation, widely used in compressed air circuits of industrial automation equipment. Original Festo fitting, stable sealing performance, compact size, saves installation space.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSMLV-M5-4-I |
| Part No. | 130831 |
| Type | L-type push-in fitting, rotatable 360° |
| Thread | M5 male thread |
| Tube OD | 4 mm |
| Nominal bore | 1.8 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR |
| Weight | 5.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull principle,hex socket mounting |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
