CPE24-M1H-5J-3/8
Product Overview

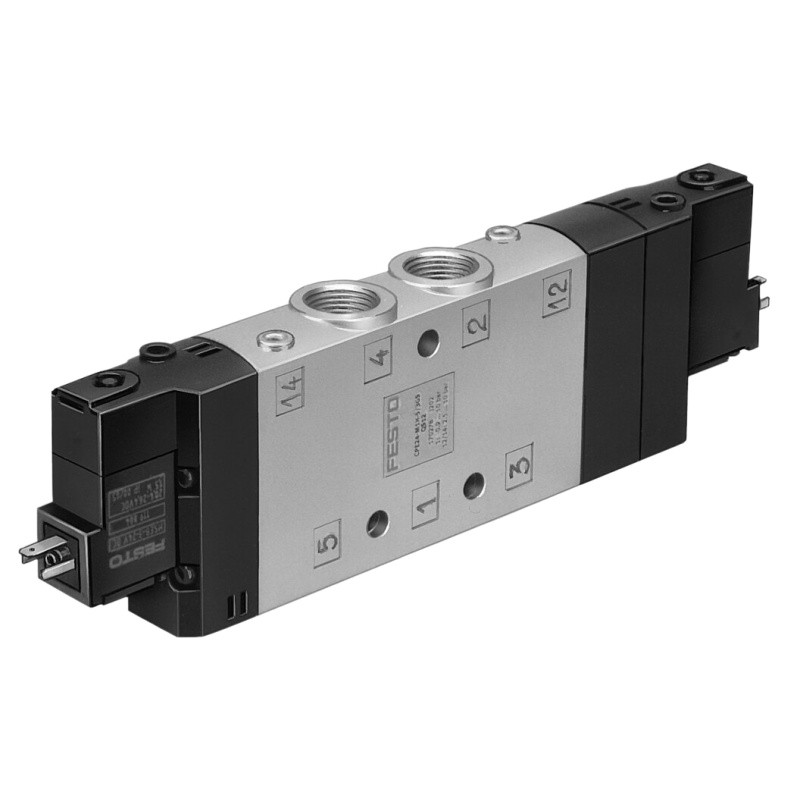

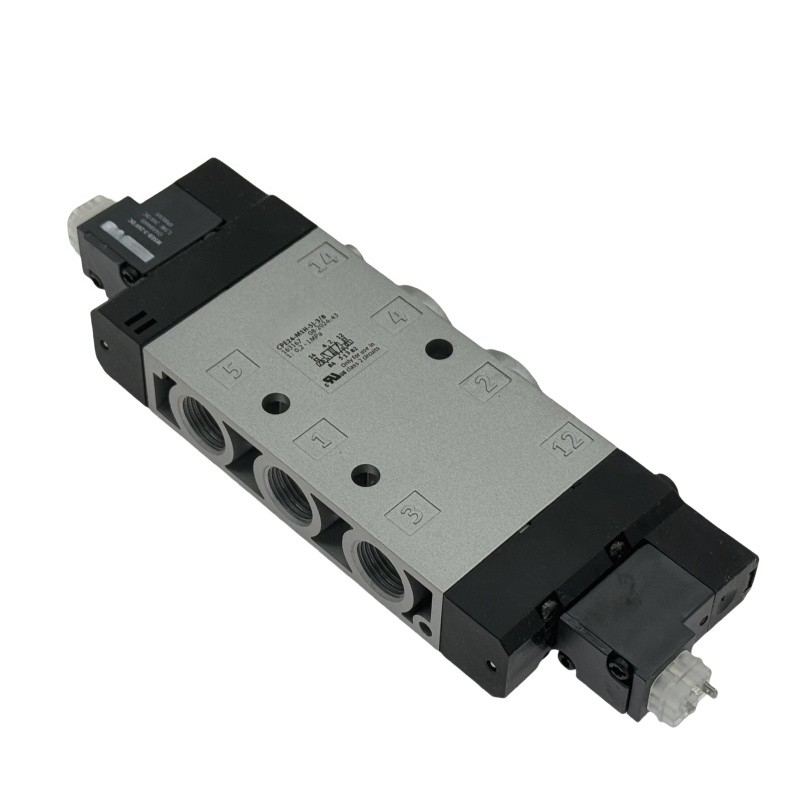

New Original FESTO CPE24-M1H-5J-3/8 belongs to CPE24 compact performance solenoid valve series. It is a 5/2-way bistable double electric control valve, valve width 24mm with G3/8 pneumatic port, nominal flow rate up to 3200 l/min, operating voltage 24V DC. Adopts piston gate valve structure with soft NBR seal and internal pilot air supply. Protection grade reaches IP65 when equipped with matching plug socket, operating pressure 2~10 bar. LABS(PWIS) compliant VDMA24364-B1/B2-L, suitable for lithium battery, packaging and paint workshop automation. Widely applied for directional control of pneumatic cylinders in valve islands and independent pneumatic circuits.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | CPE24-M1H-5J-3/8 |
| Order No. | 163167 |
| Product Series | CPE24 |
| Product Type | Compact performance pneumatic solenoid valve |
| Valve Function | 5/2-way, bistable |
| Actuation | Pilot-controlled, electrical actuation |
| Width | 24 mm |
| Pneumatic Port | G3/8 |
| Nominal width | 11 mm |
| Nominal flow rate | 3200 l/min |
| Operating Voltage | 24V DC |
| Operating pressure | 2 ~10 bar |
| Ambient Temperature | -10 ~ +60 ℃ |
| Protection class | IP65 (with matching plug socket) |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Structure | Piston gate valve, soft sealing |
| Pilot air supply | Internal pilot supply |
| Housing material | Die-cast aluminium alloy |
| Seal material | NBR |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L；Compact 24mm width bistable solenoid valve, high flow rate, internal pilot air, IP65 protection, suitable for modular valve island installation |
| Mounting | Any mounting position, mounting via through-holes |
| Corrosion Resistance Class | CRC2 |
| Weight | 220 g |
| Certificate | CE, cULus |
| Origin | Germany |
| Condition | New Original |
